M30C-FWJS2V 197527 Y7-197527 EATON ELECTRIC M30C-FWJS2V
M30C-FWJS2V
197527
Y7-197527
EATON-MOELLER
M30C-FWJS2V

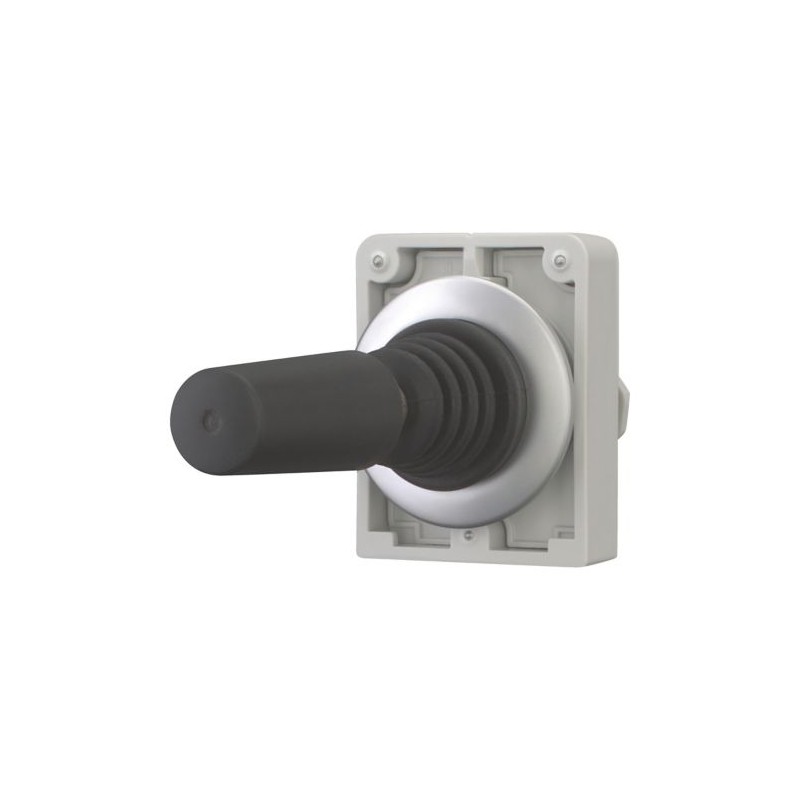

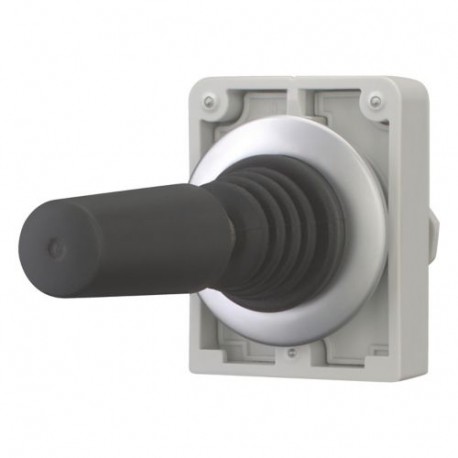

Joystick, Flat Front (drilling dimensions 30.5 mm), vertically momentary, with metal shaft, 2 positions, Metal bezel
Low-voltage industrial components > Control switch, Joystick
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
Product Name
Eaton Moeller® series M30 Joystick
Catalog Number
197527
Model Code
M30C-FWJS2V
EAN
4015081941087
Product Length/Depth
36 mm
Product Height
93 mm
Product Width
46 mm
Product Weight
0.06 kg
Certifications
CSA File No.: 012528
VDE 0660
CSA Class No.: 3211-03
CE marking
UL 508
UL Listed
GL
UL Category Control No.: NKCR
UL File No.: E29184
DNV
IEC/EN 60947-5
CSA-C22.2 No. 14-05
CSA certified
CSA-C22.2 No. 94-91
IEC/EN 60947
VDE 0660
CSA Class No.: 3211-03
CE marking
UL 508
UL Listed
GL
UL Category Control No.: NKCR
UL File No.: E29184
DNV
IEC/EN 60947-5
CSA-C22.2 No. 14-05
CSA certified
CSA-C22.2 No. 94-91
IEC/EN 60947
Features & Functions
Bezel color
Chrome
Bezel material
Metal
Fitted with:
Retraction in 0-position
Filament bulb (24 V)
Front ring
Filament bulb (24 V)
Front ring
General
Degree of protection
IP66
NEMA 4X, 13
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
30 mm
Operating frequency
2000 Operations/h
Product Category
RMQ-Titan
Type
Joystick
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A
Communication
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Yes
Actuator
Actuating force
5 N
Actuator function
Momentary
Vertical
Vertical
Number of actuation directions
2
Contacts
Force for positive opening - min
0 N
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at AC-21, 400 V (EF002417) | 0 A |
| Centre mounting, hole diameter (EF002424) | 30 mm |
| Joy stick length (EF006524) | 66 mm |
| Number of actuation directions (EF002425) | 2 |
| Number of switch positions (EF000231) | 1 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| With retraction in 0-position (EF002428) | Yes |
| Locking in 0-position (EF006283) | No |
| Coder (EF005666) | No |
| Analogue output signal configurable (EF003236) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
