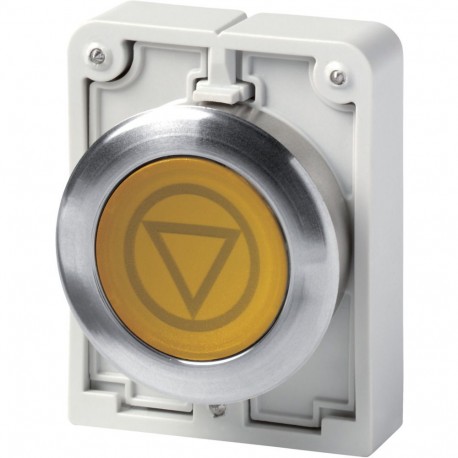

M30C-FDL-Y-X66 197204 EATON ELECTRIC Illuminated pushbutton actuator, Flat Front (drilling dimensions 30.5 m..
M30C-FDL-Y-X66
197204
Y7-197204
EATON-MOELLER
Illuminated pushbutton actuator, Flat Front (drilling dimensions 30.5 mm), Flush, momentary, yellow, inscribed, Metal bezel
Low-voltage industrial components > Front element for push button
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲Delivery program
with SWD-RMQ connections
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
Shock duration 11 ms
Sinusoidal
according to IEC 60068-2-27 g
GL
Design verification as per IEC/EN 61439
Technical data ETIM 8.0
Approvals
Dimensions
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Yellow |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | Yes |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Degree of protection (NEMA), front side (EF011961) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M30C-FDL-Y-X66 Y7-197204 197204 EN_197204.pdf | 315 Kbytes |
|
