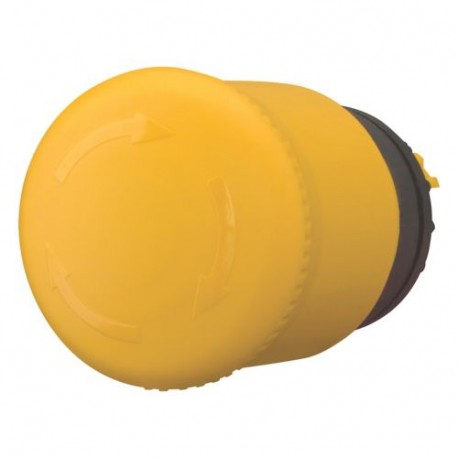

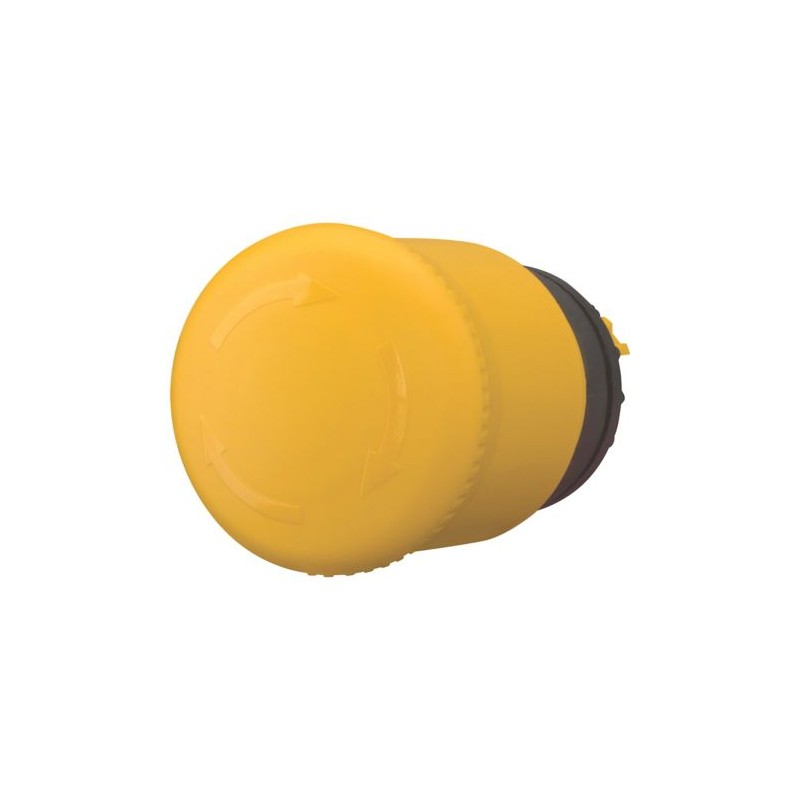

M22Y-PVT 147403 Y7-147403 EATON ELECTRIC Stop/halt pushbutton, non-illuminated, yellow
M22Y-PVT
147403
Y7-147403
EATON-MOELLER
Stop/halt pushbutton, non-illuminated, yellow
M22Y-PVT
Eaton Moeller® series M22 HALT/STOP-Button, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Turn-to-release function, yellow, yellow, RAL 9005
HALT/STOP-Button, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Turn-to-release function, Color Mushroom head: yellow, Color Base: yellow, Color RAL Value: RAL 1004, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Standards: IEC/EN 60947, VDE 0660
Low-voltage industrial components > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Often bought together
▲Best sellers
▲More info
▲General specifications
UL
IEC/EN 60947-5
CE
CSA File No.: 012528
UL 508
UL Category Control No.: NKCR
VDE 0660
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA
IEC/EN 60947
DNV
GL
LR
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Yellow |
| Construction type lens (EF006253) | Round |
| Diameter cap (EF001423) | 38 mm |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
| Type of button (EF001546) | High |
| Suitable for lighting (EF001142) | No |
| With lighting (EF003829) | No |
| Supply voltage lamp (EF006522) | 0 V |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Other |
| Suitable for emergency stop (EF001433) | No |
| Unlocking method (EF001403) | Turn-release |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22Y-PVT Y7-147403 147403 EN_289241.pdf | 3 Mbytes |
|
