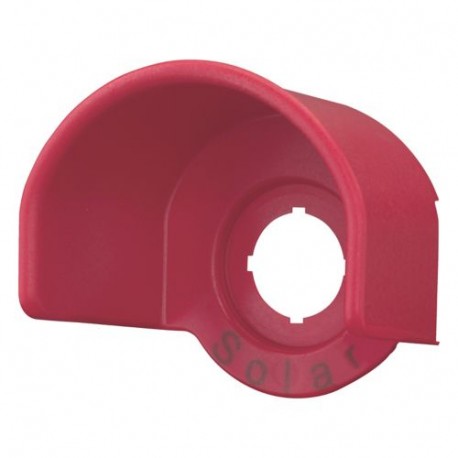

M22R-SOL-XGPVQ 150647 Y7-150647 EATON ELECTRIC Guard-ring network, with SOLAR laser inscribed View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

M22R-SOL-XGPVQ 150647 Y7-150647 EATON ELECTRIC Guard-ring network, with SOLAR laser inscribed

M22R-SOL-XGPVQ

150647

Y7-150647

EATON-MOELLER

Guard-ring network, with SOLAR laser inscribed

M22R-SOL-XGPVQ

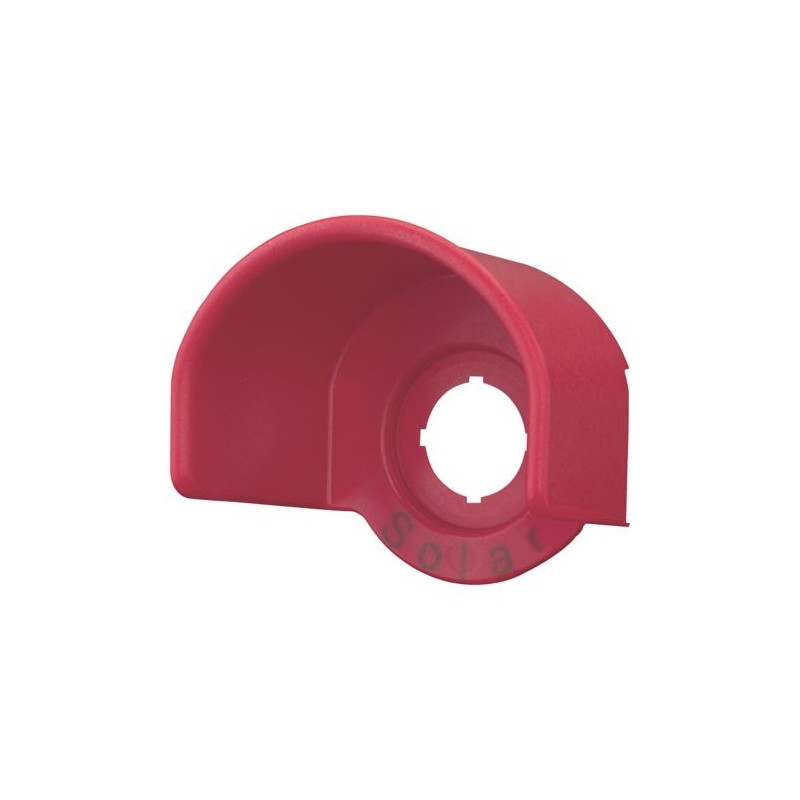

Eaton Moeller® series M22 Guard-ring, red, with SOLAR laser inscribed

Guard-ring, Product range: Accessories, Connection: Protection against accidental actuation, Description: Red, With SOLAR laser inscribed, Degree of Protection: IP65, For use with: M22-SOL-IR1Q

More details


Low-voltage industrial components > Accessories/spare parts for command devices

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $15.50
Unit price: $15.50
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series M22 Accessory Guard-ring
Catalog Number
150647
Model Code
M22R-SOL-XGPVQ
EAN
4015081469598
Product Length/Depth
79 mm
Product Height
50 mm
Product Width
65 mm
Product Weight
0.046 kg
Compliances
CE
Catalog Notes
Red

Features & Functions

Functions
Protection against accidental actuation
Inscription
" Solar "

General

Accessory/spare part type
Accessory
Degree of protection
IP65
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 150647 Low-voltage industrial controls and switchgear (EC002024)
Feature Name Feature Value
Type of electrical accessory/spare part (EF005722) Other
Type of mechanical accessory/spare part (EF005994) Protective collar
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22R-SOL-XGPVQ Y7-150647 150647 EN_289241.pdf 3 Mbytes M22R-SOL-XGPVQ Y7-150647 150647 EN_289241.pdf
