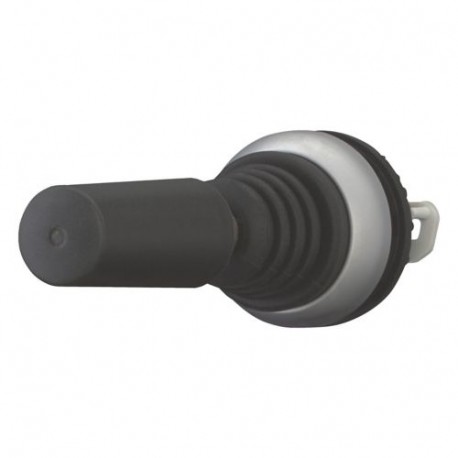

M22-WJS4-2P 178563 Y7-178563 EATON ELECTRIC Joystick 4 positions 2 operating points metal shaft
M22-WJS4-2P
178563
Y7-178563
EATON-MOELLER
Joystick; 4 positions; 2 operating points; metal shaft
M22-WJS4-2P
Eaton Moeller® series M22 Joystick, with 2 operating points per operating direction, with metal shaft, 4 positions, Bezel: titanium, momentary
Joystick, Product range: RMQ-Titan, Single unit, Description: with 2 operating points per operating direction, with metal shaft, 4 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Function: momentary, Instructions: These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P., Standards: IEC/EN 60947, VDE 0660
Low-voltage industrial components > Control switch, Joystick
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
CSA
IEC/EN 60947
CSA File No.: 012528
CSA-C22.2 No. 14-13
IEC/EN 60947-5
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
UL File No.: E29184
UL 508
VDE 0660
Features & Functions
Metal shaft
Front ring
Retraction in 0-position
General
NEMA 4X, 13
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Communication
Actuator
Contacts
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at AC-21, 400 V (EF002417) | 0 A |
| Centre mounting, hole diameter (EF002424) | 22.5 mm |
| Joy stick length (EF006524) | 75 mm |
| Number of actuation directions (EF002425) | 4 |
| Number of switch positions (EF000231) | 2 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| With retraction in 0-position (EF002428) | Yes |
| Locking in 0-position (EF006283) | No |
| Coder (EF005666) | No |
| Analogue output signal configurable (EF003236) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
