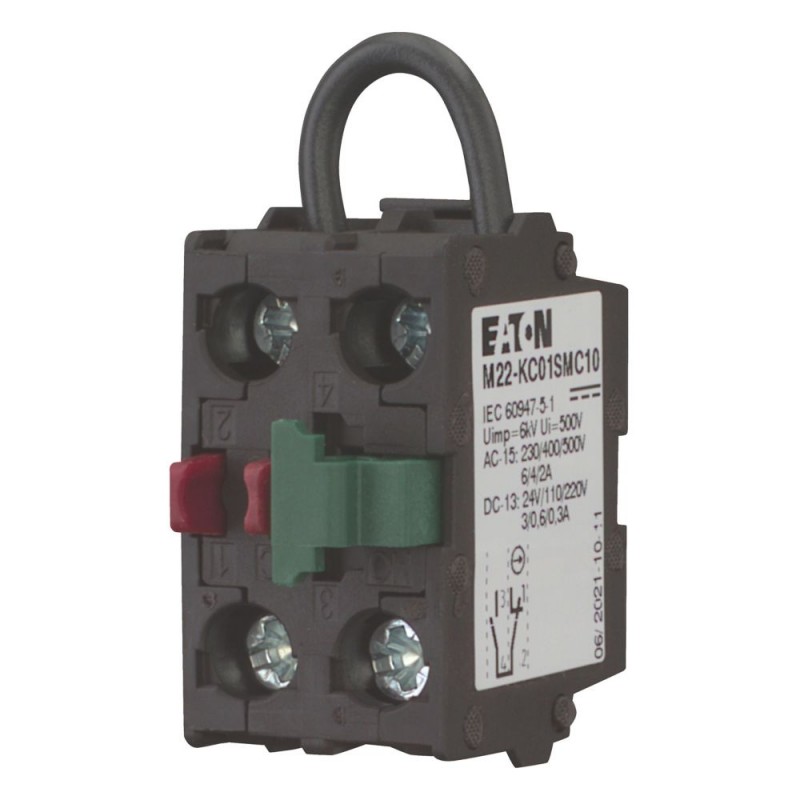

M22-KC01SMC10 121473 Y7-121473 EATON ELECTRIC Element of function 1 for NC, back mounting, connection screw,..
M22-KC01SMC10
121473
Y7-121473
EATON-MOELLER
5
Element of function; 1 for NC, back mounting, connection screw, monitored
M22-KC01SMC10
Eaton Moeller® series M22 Self-monitoring contact elements, Screw terminals, Base fixing, 1 N/O, 1 NC, 24 V 3 A
Contact element, Connection technique: Screw terminals, Fixing: Base fixing, Description: The N/O is actuated when mounted on the pushbutton., Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Low-voltage industrial components > Auxiliary contact block
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
UL
CE
CSA Class No.: 3211-03
CSA File No.: 012528_C_000
UL 508
IEC 60947-5-1
IEC/EN 60947-5
UL File No.: E340491
CSA-C22.2 No. 14-05
UL Category Control No.: NISD
CSA-C22.2 No. 94-91
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 A |
| Type of electric connection (EF003961) | Screw connection |
| Model (EF000010) | Clip-on |
| Mounting method (EF000003) | Floor fastening |
| Lamp holder (EF000048) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-KC01SMC10 Y7-121473 121473 EN_289241.pdf | 3 Mbytes |
|
