> EATON - MOELLER>Auxiliary Control and Signalling Elements >M22-I4-* 197635 Y7-197635 ELECTRIC M22-I4-*
Previous Product Next Product

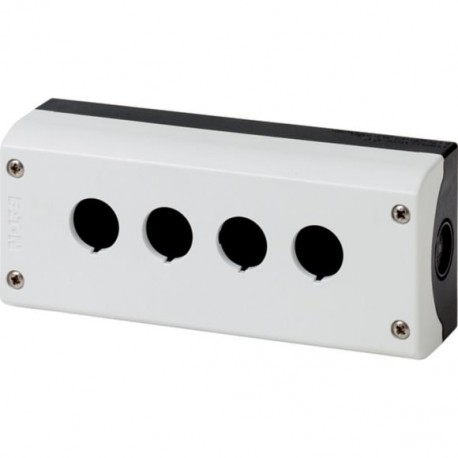

M22-I4-* 197635 Y7-197635 EATON ELECTRIC M22-I4-* View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

M22-I4-* 197635 Y7-197635 EATON ELECTRIC M22-I4-*

M22-I4-*

197635

Y7-197635

EATON-MOELLER

M22-I4-*

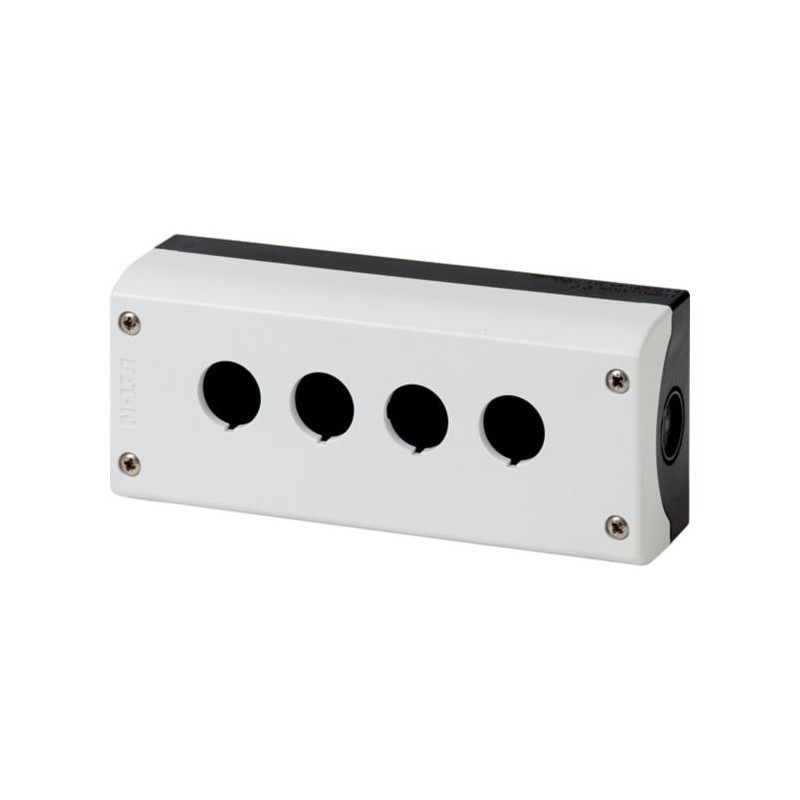

Eaton Moeller® series M22 Surface-mounting enclosure, RAL 7035, Individually markable with pushbutton configurator, Number of locations: 4, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side)

Housing: Insulated material, With high-grade steel screws, Individually markable with pushbutton configurator, Number of locations: 4, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 4 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label

More details


Low-voltage industrial components > Enclosure for control circuit devices

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
197635
Model Code
M22-I4-*
Product Length/Depth
80 mm
Product Height
56 mm
Product Width
186 mm
Product Weight
0.279 kg
Compliances
CE
Catalog Notes
Individually markable with pushbutton configurator

Features & Functions

Enclosure color
Gray
Enclosure material
Plastic
Fitted with:
High-grade steel screws
Knockouts
2 x M20 (cable entry knockouts at the rear)
2 x M20 (cable entry knockouts at the top)
2 x M20/25 (cable entry knockout at the side, 1 x each side)
Number of locations
4
RAL-number
7035

General

Degree of protection
NEMA 4X
IP67/IP69K
Opening diameter
22.5 mm
Product category
RMQ-Titan

Ambient conditions, mechanical

Mounting position
As required

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 197635 Low-voltage industrial controls and switchgear (EC000200)
Feature Name Feature Value
Number of command positions (EF001372) 4
Construction type housing (EF004008) Surface mounting housing
Housing material (EF001596) Plastic
Housing material quality (EF024143) Other
Diameter openings (EF000243) 22.5 mm
Colour housing cover (EF001373) Grey
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X
Width (EF000008) 186 mm
Height (EF000040) 56 mm
Depth (EF000049) 80 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-I4-* Y7-197635 197635 EN_197635.pdf 106 Kbytes M22-I4-* Y7-197635 197635 EN_197635.pdf
