M22-FIY1-* 197638 Y7-197638 EATON ELECTRIC M22-FIY1-*
M22-FIY1-*
197638
Y7-197638
EATON-MOELLER
M22-FIY1-*

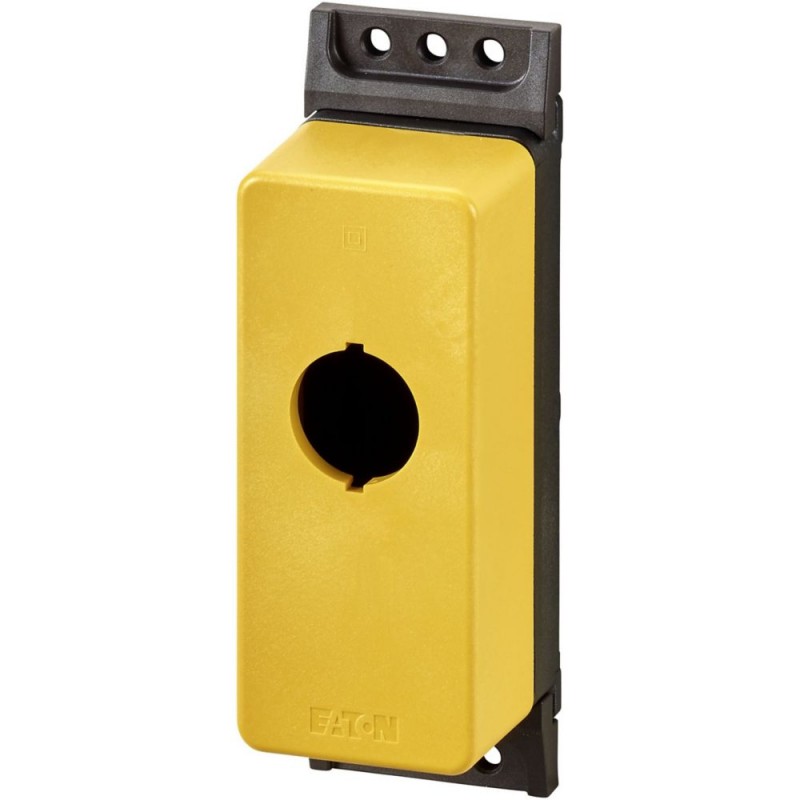

Eaton Moeller® series M22 Surface mounting enclosure, RAL 1004, Individually markable with pushbutton configurator, Number of locations: 1, Cable entry: rear: 1 x M20, lateral: 1 x M20
Housing: Insulated material, With high-grade steel screws, Individually markable with pushbutton configurator, Number of locations: 1, Cable entry: rear: 1 x M20, lateral: 1 x M20, Color RAL Value: RAL 1004, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 1 x 22.5, For use with: EMERGENCY STOP / EMERGENCY STOP buttons, Flat rear contact elements M22-FK..., Flat Rear LED elements M22-FLED-…
Low-voltage industrial components > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
UL File No.: E29184
CSA File No.: 012528
CE marking
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA certified
CSA-C22.2 No. 14-05
UL Listed
Features & Functions
1 x M20 (cable entry knockouts at the rear)
General
IP67/IP69K
Communication
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 22.5 mm |
| Colour housing cover (EF001373) | Yellow |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 43 mm |
| Height (EF000040) | 44 mm |
| Depth (EF000049) | 110 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-FIY1-* Y7-197638 197638 EN_197638.pdf | 107 Kbytes |
|
