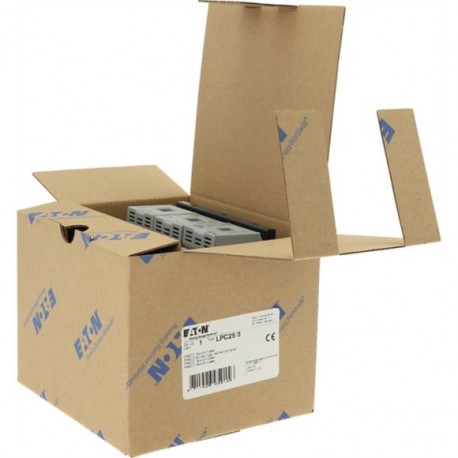

LPC25/3 1713617 EATON ELECTRIC Switch-disconnector fuse, LPC, 25 A, cabinet mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LPC25/3 1713617 EATON ELECTRIC Switch-disconnector fuse, LPC, 25 A, cabinet mount

LPC25/3

1713617

EATON-MOELLER

Switch-disconnector fuse, LPC, 25 A, cabinet mount

Eaton LPC Fuse switch-disconnector, LPC, 25 A, service distribution board mounting, 3 pole, DII

More details


Industrial Fuse Bases

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $176.31
Unit price: $176.31

Quantity Price
1+$176.31
2+$162.70
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


Best sellers

▲

More info

▲


General specifications

Product Name
Eaton LPC Fuse switch-disconnector
Catalog Number
1713617
Model Code
LPC25/3
EAN
8711426959156
Product Length/Depth
152 mm
Product Height
108 mm
Product Width
132 mm
Product Weight
544.723 g
Certifications
RoHS
CE
IEC/EN 60204
VDE 0660
IEC/EN 60947
KEMA
IEC/EN 60947-3

Features & Functions

Fitted with:
Error protection
Connectors
Number of poles
Three-pole

General

Actuator type
Rocker lever
Degree of protection
IP20
Degree of protection (front side)
IP20
Mounting method
Service distribution board mounting
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product category
Fuse switch-disconnector

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
80 °C
Operating temperature - min
-25 °C
Operating temperature - max
55 °C

Terminal capacities

Terminal capacity (flexible)
1.5 - 10 mm²
Terminal capacity (solid)
1.5 - 16 mm²
Stripping length (main cable)
8 mm
Tightening torque
3 Nm, Screw terminals

Electrical rating

Rated operating voltage (Ue) at AC - max
400 V
Rated operational power at AC-23A, 400 V, 50 Hz
0 kW
Rated short-time withstand current (Icw)
0 kA
Rated uninterrupted current (Iu)
25 A
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
3 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN.pdf 51 Mbytes
LPC25/3 1713617 ES_1713607.pdf 2 Mbytes LPC25/3 1713617 ES_1713607.pdf
