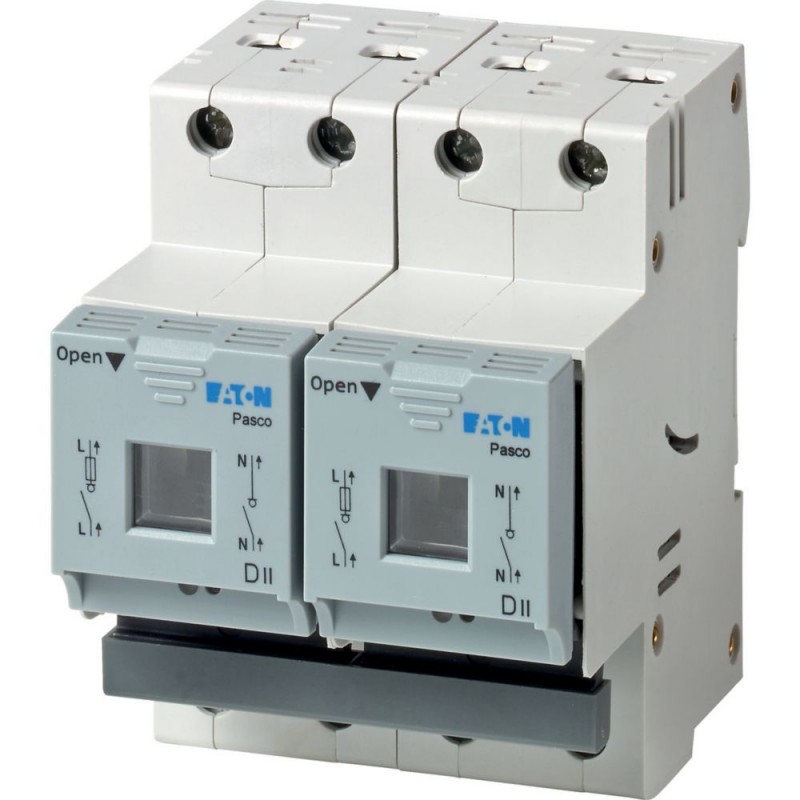

LPC25/2 1713616 Y8-1713616 EATON ELECTRIC Switch-disconnector fuse, LPC, 25 A, cabinet mount
LPC25/2
1713616
Y8-1713616
EATON-MOELLER
Switch-disconnector fuse, LPC, 25 A, cabinet mount
Eaton LPC Fuse switch-disconnector, LPC, 25 A, service distribution board mounting, 2 pole, DII
Fuse switch-disconnector 25A, D II, 2 pole, can be switched by neutral conductor, with adapter plate for fuses with 6A, 10A, 16A 20A, 25 A
Connectors > Cable connector
Industrial Fuse Bases
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Product Name | Eaton LPC Fuse switch-disconnector |
| Catalog Number | 1713616 |
| Model Code | LPC25/2 |
| EAN | 8711426743151 |
| Product Length/Depth | 135 mm |
| Product Height | 82 mm |
| Product Width | 113 mm |
| Product Weight | 419.727 g |
| Certifications | IEC/EN 60947 IEC/EN 60947-3 RoHS VDE 0660 IEC/EN 60204 CE KEMA |
Features & Functions
| Fitted with: | Error protection Connectors |
| Number of poles | Two-pole |
General information
| Actuator type | Rocker lever |
| Degree of protection | IP20 |
| Degree of protection (front side) | IP20 |
| Mounting method | Service distribution board mounting |
| Mounting position | As required |
| Overvoltage category | III |
| Pollution degree | 3 |
| Product category | Fuse switch-disconnector |
| Suitable for | Front mounting |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 50 °C |
| Ambient storage temperature - min | -30 °C |
| Ambient storage temperature - max | 80 °C |
| Operating temperature - min | -25 °C |
| Operating temperature - max | 55 °C |
Terminal capacities
| Terminal capacity (flexible) | 1.5 - 10 mm² |
| Terminal capacity (solid) | 1.5 - 16 mm² |
| Stripping length (main cable) | 8 mm |
| Tightening torque | 3 Nm, Screw terminals |
Electrical rating
| Rated operating voltage (Ue) at AC - max | 400 V |
| Rated operational power at AC-23A, 400 V, 50 Hz | 0 kW |
| Rated uninterrupted current (Iu) | 25 A |
| Uninterrupted current | Rated uninterrupted current Iu is specified for max. cross-section. |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 3 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 400 V |
| Rated permanent current Iu (EF001389) | 25 A |
| Rated operation power at AC-23, 400 V (EF007027) | 0 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 0 kA |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for fuses (EF006692) | Other |
| Number of poles (EF001391) | 2 |
| With error protection (EF007384) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | No |
| Type of control element (EF006976) | Rocker lever |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP20 |
