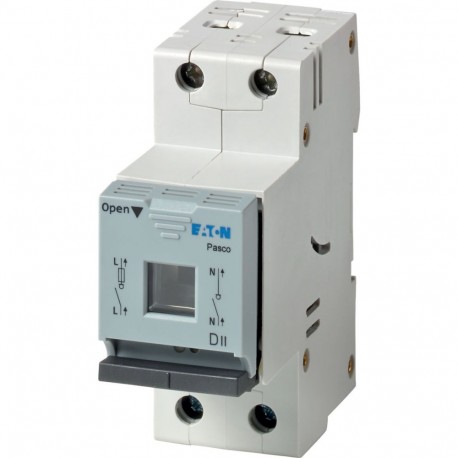

LPC25 1713612 Y8-1713612 EATON ELECTRIC Switch-disconnector fuse, LPC, 25 A, cabinet mount
LPC25
1713612
Y8-1713612
EATON-MOELLER
Switch-disconnector fuse, LPC, 25 A, cabinet mount
Eaton LPC Fuse switch-disconnector, LPC, 25 A, service distribution board mounting, 1 pole, DII
Fuse switch-disconnector 25A, D II, 1 pole, can be switched by neutral conductor, with adapter plate for fuses with 6A, 10A, 16A 20A, 25 A
Connectors > Cable connector
Industrial Fuse Bases
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton LPC Fuse switch-disconnector
Catalog Number
1713612
Model Code
LPC25
EAN
8711426853447
Product Length/Depth
95 mm
Product Height
93 mm
Product Width
40 mm
Product Weight
202.205 g
Certifications
IEC/EN 60947-3
VDE 0660
RoHS
CE
KEMA
IEC/EN 60204
IEC/EN 60947
VDE 0660
RoHS
CE
KEMA
IEC/EN 60204
IEC/EN 60947
Features & Functions
Fitted with:
Error protection
Connectors
Connectors
Number of poles
Two-pole
General
Actuator type
Rocker lever
Degree of protection
IP20
Degree of protection (front side)
IP20
Mounting method
Service distribution board mounting
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product category
Fuse switch-disconnector
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
80 °C
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Terminal capacities
Terminal capacity (flexible)
1.5 - 10 mm²
Terminal capacity (solid)
1.5 - 16 mm²
Stripping length (main cable)
8 mm
Tightening torque
3 Nm, Screw terminals
Electrical rating
Rated operating voltage (Ue) at AC - max
400 V
Rated operational power at AC-23A, 400 V, 50 Hz
0 kW
Rated short-time withstand current (Icw)
0 kA
Rated uninterrupted current (Iu)
25 A
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
3 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 400 V |
| Rated permanent current Iu (EF001389) | 25 A |
| Rated operation power at AC-23, 400 V (EF007027) | 0 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 0 kA |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for fuses (EF006692) | Other |
| Number of poles (EF001391) | 2 |
| With error protection (EF007384) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Above/under |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | No |
| Type of control element (EF006976) | Rocker lever |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP20 |
