> EATON - MOELLER>Bussmann Series Low Voltage fuses and accessories>400NHM3B ELECTRIC Fuse-link, low voltage, 400 A, AC 500 V, NH3, aM, IEC, dual indicator
Previous Product Next Product

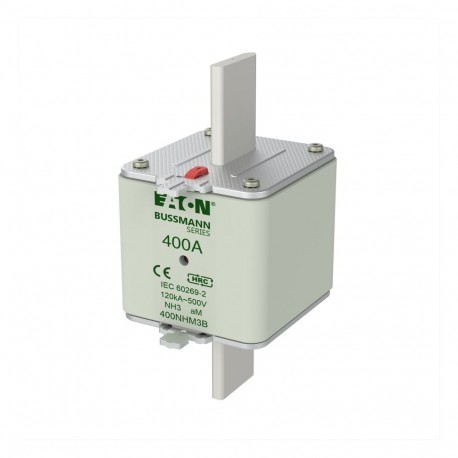

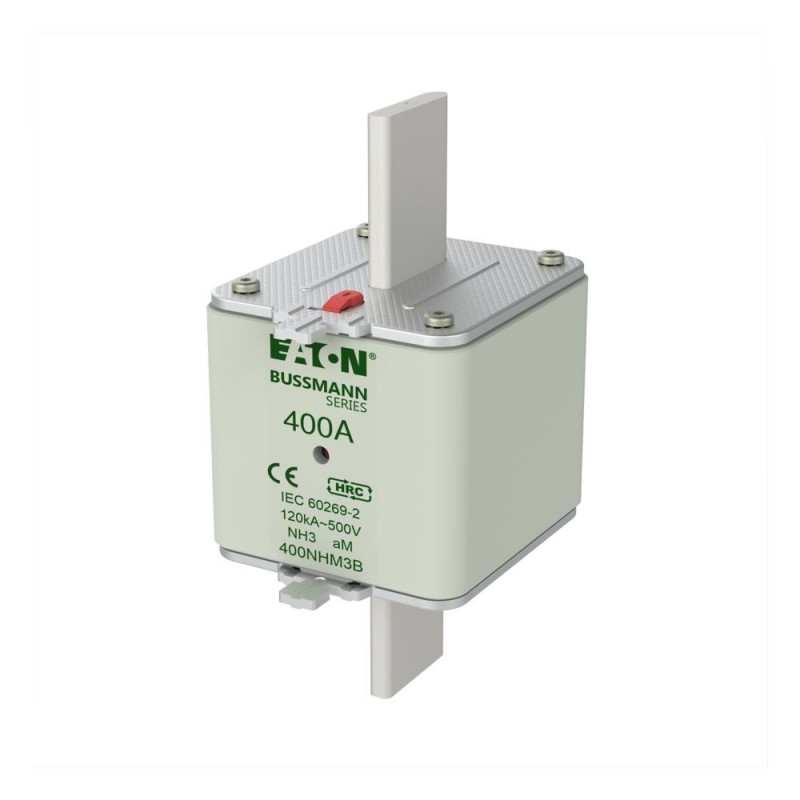

400NHM3B EATON ELECTRIC Fuse-link, low voltage, 400 A, AC 500 V, NH3, aM, IEC, dual indicator View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

400NHM3B EATON ELECTRIC Fuse-link, low voltage, 400 A, AC 500 V, NH3, aM, IEC, dual indicator

400NHM3B

EATON-MOELLER

3

Fuse-link, low voltage, 400 A, AC 500 V, NH3, aM, IEC, dual indicator

NH FUSE 400AMP 500V AM SIZE 3 DUAL IND

More details


Circuit breakers and fuses > Low Voltage HRC fuse

Bussmann Series Low Voltage fuses and accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $82.22
Unit price: $27.41

Quantity Price
3+$27.41
6+$25.41
9+$23.23
12+$21.99
18+$21.01
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Fuse-link, low voltage, 400 A, AC 500 V, NH3, aM, IEC, dual indicator
Fuse, Fuse-link, low voltage, 400 A, AC 500 V, NH3, aM, IEC, dual indicator, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

General specifications
Product name
Eaton Bussmann series low voltage NH Fuse
Part no.
400NHM3B
EAN
5027590479851
Product Length/Depth
150 millimetre
Product height
71 millimetre
Product width
76 millimetre
Product weight
1140 gram
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
Product Tradename
None
Product Type
Low voltage NH fuse
Product Sub Type
None
Electrical data
Amperage Rating
400 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class aM
Product specifications
Fuse size
NH3
Insulated metal gripping lugs (IMGL)
No
Accessories
Suitable for
SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Knife blade fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Fuse construction type according to IEC 60269
NH3
Voltage type
AC
Rated current
400 A
Rated voltage AC
500 V
Rated voltage DC
V
Rated switching capacity
120 kA
Utilization category
aM (switchgear protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
Power loss at rated current
28 W

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON CIRCUIT PROTECTION BUSSMANN EN.pdf 28 Mbytes
PDF EATON CIRCUIT PROTECTION NH FUSE EN.pdf 7 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
400NHM3B 400NHM3B EN_400NHM3B.pdf 143 Kbytes 400NHM3B 400NHM3B EN_400NHM3B.pdf
