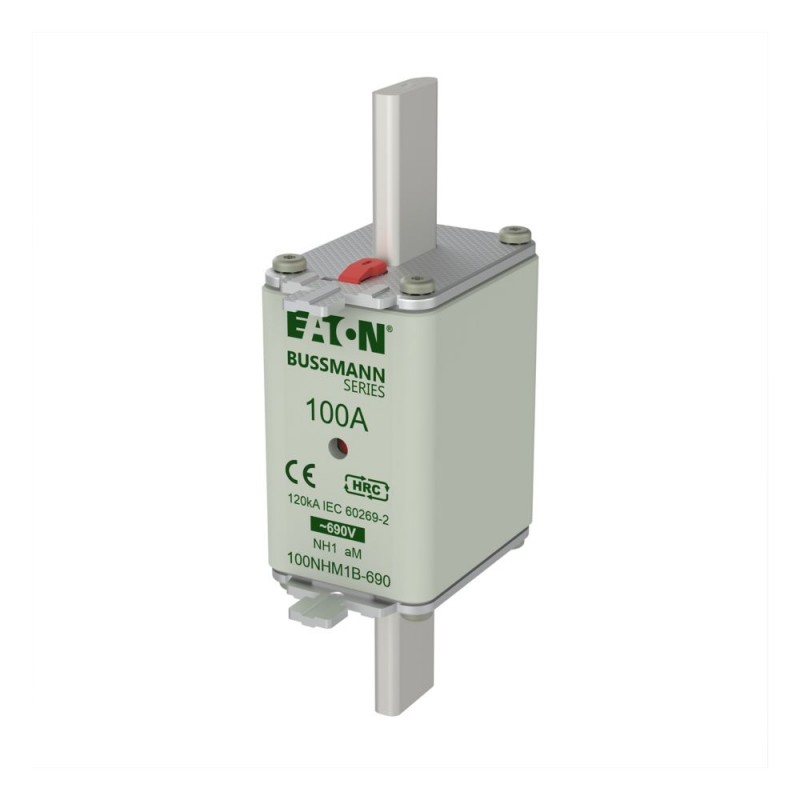

100NHM1B-690 EATON ELECTRIC Fuse-link, low voltage, 100 A, AC 690 V, NH1, aM, IEC, dual indicator
100NHM1B-690
EATON-MOELLER
3
NH FUSE 100AMP 690V aM SIZE 1 DUAL IND
Fuse-link, low voltage, 100 A, AC 690 V, NH1, aM, IEC, dual indicator
Fuse, Fuse-link, low voltage, 100 A, AC 690 V, NH1, aM, IEC, dual indicator, square body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA, Optional accessories fuse-holder SD1-D
Circuit breakers and fuses > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH1 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 100 A |
| Rated voltage AC (EF007682) | 690 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | aM (switchgear protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
| Power loss at rated current (EF012389) | 6.7 W |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON CIRCUIT PROTECTION BUSSMANN EN .pdf | 23 Mbytes |
|
| PDF EATON CIRCUIT PROTECTION NH FUSE EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| 100NHM1B-690 100NHM1B-690 100NHM1B-690 EN_100NHM1B-690.pdf | 137 Kbytes |
|
