> EATON - MOELLER>Central Battery System>LED KIT LOW 3-33V 2LF CGL LVLD-2L-CGL O-LVLD-2L-CGL ELECTRIC LED KIT LOW 3-33V 2LF CGL
Previous Product Next Product

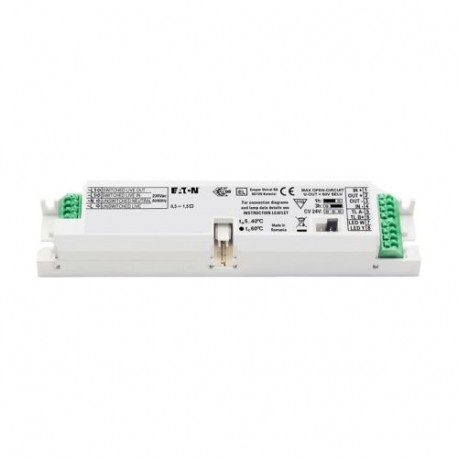

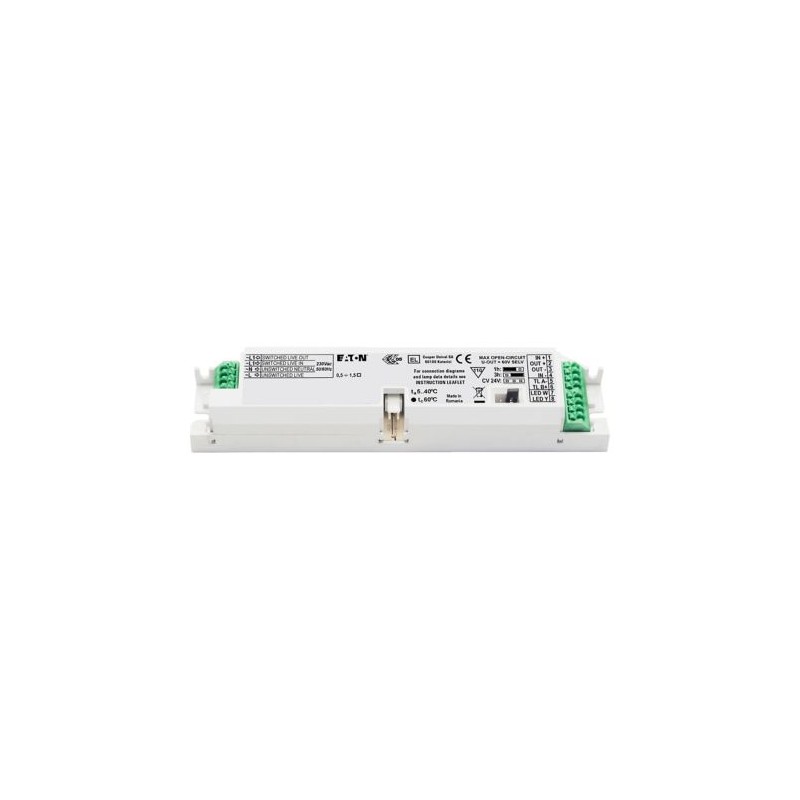

LED KIT LOW 3-33V 2LF CGL LVLD-2L-CGL O-LVLD-2L-CGL EATON ELECTRIC LED KIT LOW 3-33V 2LF CGL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LED KIT LOW 3-33V 2LF CGL LVLD-2L-CGL O-LVLD-2L-CGL EATON ELECTRIC LED KIT LOW 3-33V 2LF CGL

LED KIT LOW 3-33V 2LF CGL

LVLD-2L-CGL

O-LVLD-2L-CGL

EATON-MOELLER

LED KIT LOW 3-33V 2LF CGL

Eaton Conversion kit LED Low Voltage Driver 3-33V 2LF CGLine+

More details


Accessories for lighting > Emergency unit for luminaire

Central Battery System

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Conversion kit LED SC Conversion kit
Catalog Number
LVLD-2L-CGL
EAN
5205050907162
Product Length/Depth
185 mm
Product Height
23 mm
Product Width
35 mm
Product Weight
0.2 kg
Compliances
Contact Manufacturer

Product specifications

Battery voltage
6.4 V
Battery number of cells
2
Battery quality
Lithium-ions
Lamp type
LED
Power
2.2 W
Power factor
.47
Monitoring equipment
Automatic self test
Wiring system
Other
With remote switch connection
True
Reserve-polarity protected
True
Nominal voltage AC - min
218.5 V
Nominal voltage AC - max
241.5 V
Rated ambient operating temperature (IEC 62722-2-1) - max
50 °C
Rated ambient operating temperature (IEC 62722-2-1) - min
5 °C
Conductor cross section - max
1.5 mm²
Nominal operation time - min
1 hour
Nominal operation time - max
3 hour
Glow wire test
650 °C
Permissible ambient temperature - min
5 °C
Permissible ambient temperature - max
50 °C
Protection class
II
Degree of impact resistance (IK)
None
Outdoor use compliance
False
Degree of protection
IP20
Data connection terminal
CGLine+
Frequency
50/60 Hz
Type of connection terminal
Screwless

ETIM for LVLD-2L-CGL Lighting accessories (EC000471)
Feature Name Feature Value
Lamp type (EF002423) LED
Power (EF000076) 2.2 W
Monitoring equipment (EF008091) Automatic self test
With remote switch connection (EF007947) Yes
Nominal voltage (EF005127) 218.5 V
Protection class according to IEC 61140 (EF000004) II
Nominal operation time (EF012518) 1 h

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
