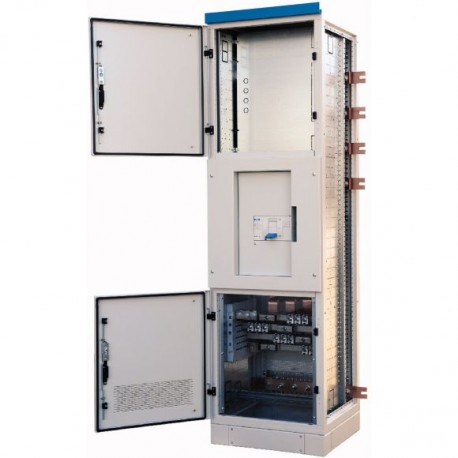

KSX-34P-EXT 138268 EATON ELECTRIC Busbar support, outside, universal, KSX
KSX-34P-EXT
138268
EATON-MOELLER
Busbar support, outside, universal, KSX
KSX-34P-EXT
Energy distribution systems > Busbar support
Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Busbar support, outside, universal, KSX
KSX system for distribution feeder unit, for outdoor use in xEnergy type-tested power distribution systems and XVTL distribution panel, including fixing brackets, fixing screws, and retainers for covers, short-circuit strength 110 kA, 3-4 pole, rated operational current Ie = 3200 A, can be used for 30 x 10 mm copper conductors, double T profile, triple T profile, external use in switchboard.
General specifications
Product name
Eaton xEnergy Light LV systems LV switchgear
Part no.
KSX-34P-EXT
EAN
4015081350483
Product Length/Depth
300 millimetre
Product height
300 millimetre
Product width
30 millimetre
Product weight
4.58 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Light
Product Type
LV systems
Product Sub Type
LV switchgear
Product Specification Details
Busbar distance
0 mm
Current rating - max
3200 A
Functions
Busbar support
KSX busbar support external, universal
KSX busbar support external, universal
Impulse withstand current
110 kA
Number of poles
Four-pole
Rated operation current (Ie)
3200 A
Special features
For outdoor use in xEnergy type-tested power distribution systems and XVTL distribution panel
Including fixing bracket, fixing screws and supports for covers
Including fixing bracket, fixing screws and supports for covers
Suitable for
Four-pole
Three-pole
Three-pole
Type
Distribution board feeder system
KSX-System
KSX-System
Used with
30 x 10 mm
Double T profile
Triple T profile
KSX-System
Distribution board feeder system
Double T profile
Triple T profile
KSX-System
Distribution board feeder system
Technical data ETIM 9.0
Energy distribution systems (EG000015) / Busbar support (EC001166)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Energy distribution system / Busbar carrier (ecl@ss13-27-40-06-07 [ACO377016])
Number of poles
4
Max. rated current
3200 A
Busbar distance
0 mm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| KSX-34P-EXT 138268 EN_138268.pdf | 103 Kbytes |
 |
