KLV-60UPS-SF 302415 Y7-302415 EATON ELECTRIC KLV-60UPS-SF
KLV-60UPS-SF
302415
Y7-302415
EATON-MOELLER
KLV-60UPS-SF

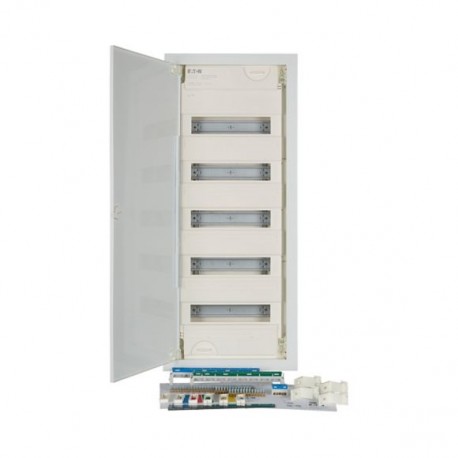

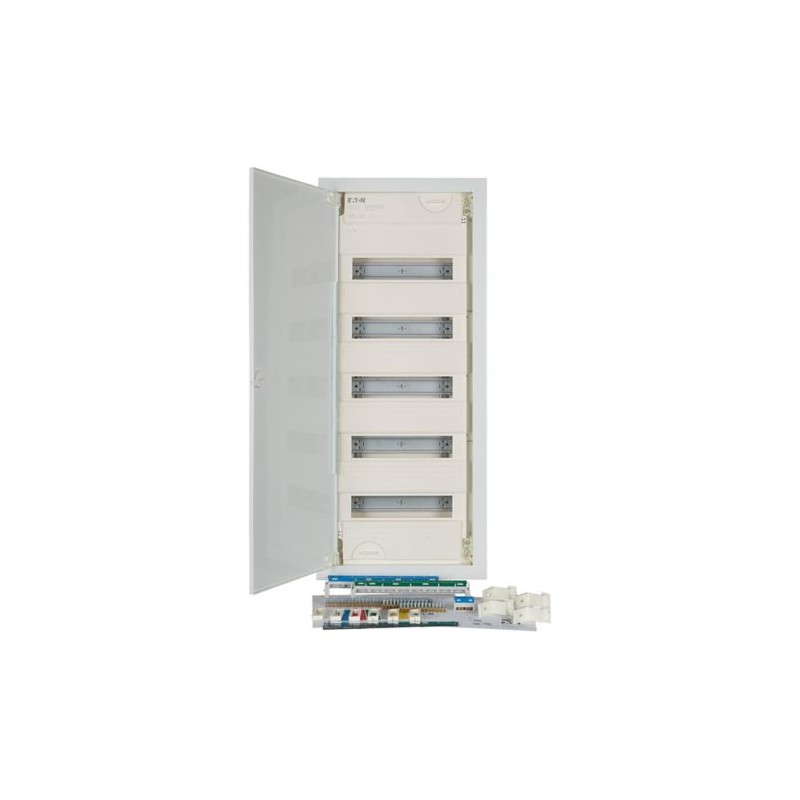

Eaton xComfort KLV LV systems Final Distribution Boards. Compact distribution board-flush mounting, 5-rows, 60MU, super-flat sheet steel door, UPS-SF
KLV flush mounting compact distribution boards, protection Class II, plastic enclosure with sheet steel door, front cover, sealable and laser-inscribed in accordance with IEC/EN 60670-24, plus 2-space-unit reserve per row, marking slot in wall box, one-of-a-kind super-flat door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat wiring, comprehensive range of accessories, equipment supplied: enclosure, device carrier, front cover, neutral and protective conductor terminals with SK screw terminal technology, spirit level for leveling , 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, nail lugs, installation instructions, imprintable sheet, special packaging designed to meet real-life application requirements. Standards: In accordance with IEC/EN 60670-24 (PD), IEC/EN 62208 and therefore approved for distribution boards as defined in IEC/EN 61439-3.
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
IEC/EN 62208
Product specifications
Door/Frame
Cable retainer
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Nail lugs
Spirit level for leveling
Installation instructions
Wall trough
Imprintable sheet
Device support rails
Neutral and protective conductor terminals with SK screw terminal technology
KLV energy
Installation distribution boards
Single
Traffic white (RAL 9016)
IP30
Basic device
Polystyren (plastic)
Flush mounted (plaster)
Flush mounting
PE: 25 x (0.75 mm² - 16 mm²)
N - Fi: 2 x (0.75 mm² - 16 mm²) + 2 x (0.75 mm² - 25 mm²)
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 5 |
| Width in number of modular spacings (EF002950) | 12 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | With notch |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | No |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Plastic |
| Built-in depth (EF000218) | 80 mm |
| Built-in height (EF000332) | 0 mm |
| Built-in width (EF000846) | 0 mm |
| Inner depth (EF001131) | 80 mm |
| Earthing terminal block (EF015776) | No |
| Neutral terminal block (EF015777) | No |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP30 |
| Height (EF000040) | 840 mm |
| Width (EF000008) | 360 mm |
| Depth (EF000049) | 100 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| KLV-60UPS-SF Y7-302415 302415 FR_178827.pdf | 3 Mbytes |
|
