KLA 275453 Y7-275453 EATON ELECTRIC Connection to terminal f. 35mm2
KLA
275453
Y7-275453
EATON-MOELLER
Connection to terminal f. 35mm2
KLA
Eaton xEnergy Basic LV systems Low voltage switchgear. Connection terminal f. 35mm²

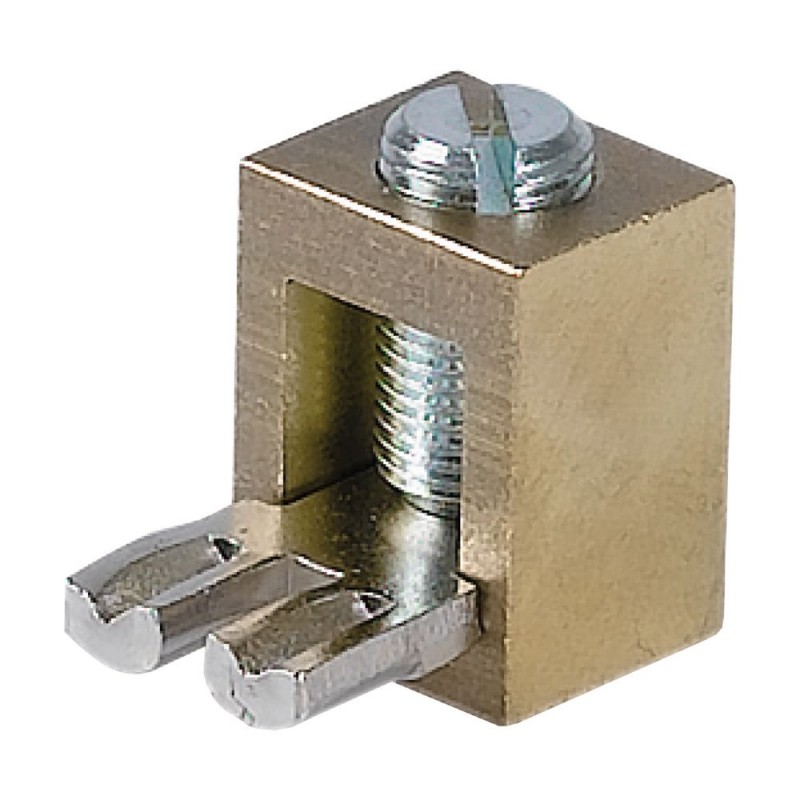

Brass connection terminal (35 mm²), usually used in combination with KL terminal bar
Energy distribution systems > Rail terminal bar
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
Delivery program
Technical data - mechanical
Flush mounting
Screw
Surface mounting
Additional information
Solid conductors
Stranded conductors
Accessory consideration
BF flat distribution board
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
| Nominal current (EF000001) | 63 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Number of inputs (EF000318) | 1 |
| Number of outputs (EF000319) | 1 |
| Suitable for solid conductors (EF007816) | Yes |
| Suitable for stranded conductors (EF007818) | Yes |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Conductor cross section, input (EF016330) | 16 mm² |
| Conductor cross section, output (EF016331) | 10 mm² |
| Conductor cross section, input AWG (EF016332) | 0 |
| Conductor cross section, output AWG (EF016333) | 0 |
| Contact safe (EF004521) | No |
| Height (EF000040) | 20 mm |
| Width (EF000008) | 15 mm |
| Depth (EF000049) | 25 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| KLA Y7-275453 275453 EN_275453.pdf | 142 Kbytes |
|
