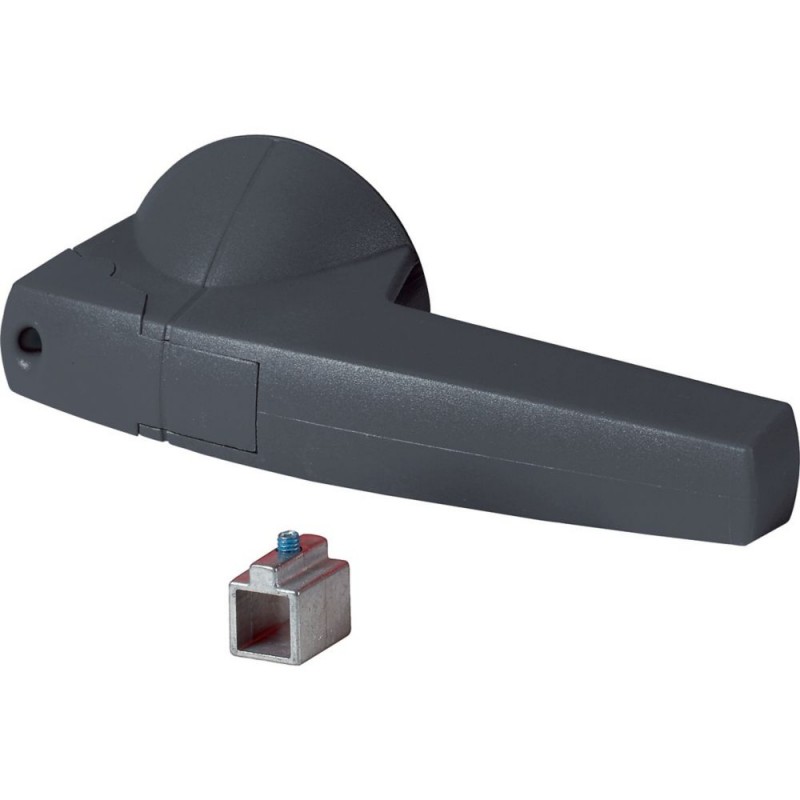

K4AG 1818203 Y8-1818203 EATON ELECTRIC Toggle 12 mm K4 direct mounting gray View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

K4AG 1818203 Y8-1818203 EATON ELECTRIC Toggle 12 mm K4 direct mounting gray

K4AG

1818203

Y8-1818203

EATON-MOELLER

Toggle; 12 mm; K4; direct mounting; gray

K4AG

Eaton K4 Toggle; 12 mm; K4; direct mounting; gray

Toggle, Basic function: Rotary handles, direct mounting on switch, Shaft diameter: 12 x 12, For use with: QSA400, QSA630, QSA800, For use with: Direct mounting, Switching angle: 90 °

More details


Connectors > Printed circuit board connector

DUMECO Switch-Disconnectors

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $51.27
Unit price: $51.27
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton K4 Accessory Toggle
Catalog Number
1818203
Model Code
K4AG
EAN
8711426854390
Product Length/Depth
249 mm
Product Height
110 mm
Product Width
100 mm
Product Weight
0.55 kg
Compliances
CE

Features & Functions

Color
Gray

General

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Degree of protection
NEMA Other
Mounting method
Direct mounting
Shaft diameter
12 x 12 mm
Suitable for
Power circuit breaker
Switch disconnector
Switching angle
90 °
Type
Rotary handle
Used with
QSA400..., QSA630... and QSA800...

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.

ETIM for 1818203 Low-voltage industrial controls and switchgear (EC000229)
Feature Name Feature Value
With restart blockage (EF004054) No
With key lock (EF026057) No
Padlock locking (EF001163) No
Colour (EF000007) Grey
Suitable for emergency stop (EF001433) No
With extension shaft (EF001434) No
Suitable for power circuit breaker (EF005863) Yes
Suitable for switch disconnector (EF007252) Yes
Degree of protection (NEMA) (EF011959) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
K4AG Y8-1818203 1818203 EN_1818203.pdf 109 Kbytes K4AG Y8-1818203 1818203 EN_1818203.pdf
