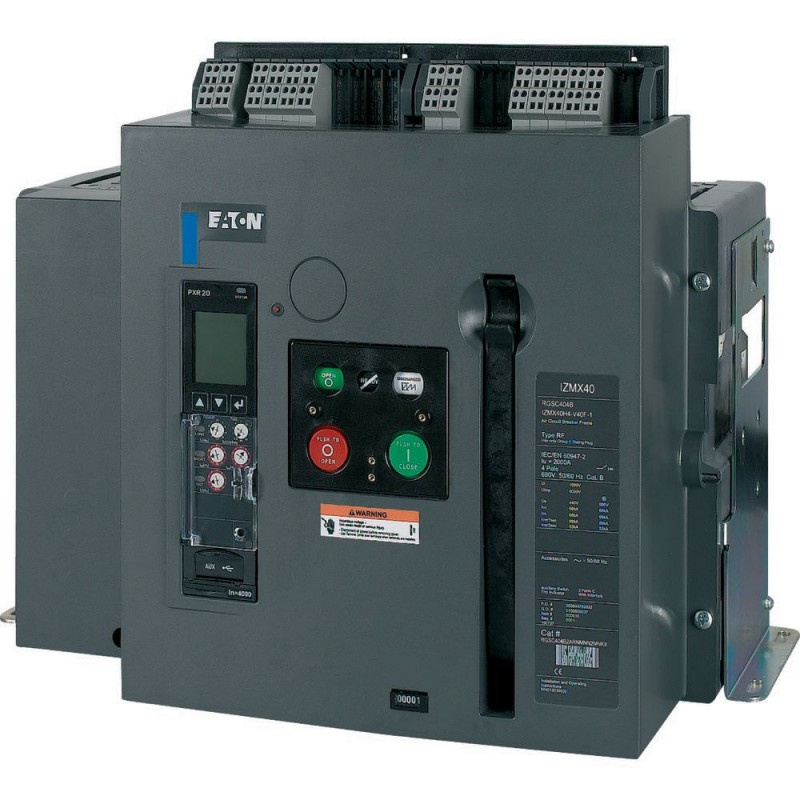

IZMX40H4-P20F-1 183775 Y7-183775 EATON ELECTRIC Circuit-breaker, 4 pole, 2000 A, 105 kA, P measurement, IEC,..
IZMX40H4-P20F-1
183775
Y7-183775
EATON-MOELLER
Circuit-breaker, 4 pole, 2000 A, 105 kA, P measurement, IEC, Fixed
IZMX40H4-P20F-1
Eaton Moeller series IZMX/INX - ACB. Circuit-breaker, 4p, 2000A, 105 kA, P measurement, IEC, Fixed
Circuit-breaker IZMX40 ( Air circuit-breakers/switch-disconnectors), 4 pole, Current Range: Up to 4000 A, Rated current = rated uninterrupted current( In = Iu): 2000 A, up to 440 V 50/60 Hz( Icu): 105 kA, up to 440 V 50/60 Hz( Ics): 105 kA, Overload release, min.( Ir): 800 A, Overload release, max.( Ir): 2000 A, Installation type: Fixed, Standard/Approval: IEC, Protective function: P measurement
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
IEC/EN 60947
RoHS conform
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2000 A |
| Rated voltage (EF003977) | 690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 105 kA |
| Overload release current setting (EF002336) | 800 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1200 A |
| Adjustment range undelayed short-circuit release (EF007131) | 4000 A |
| Power loss (EF005387) | 150 W |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Rail connection |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 2 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Back |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP31 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IZMX40H4-P20F-1 Y7-183775 183775 EN_183775.pdf | 121 Kbytes |
|
