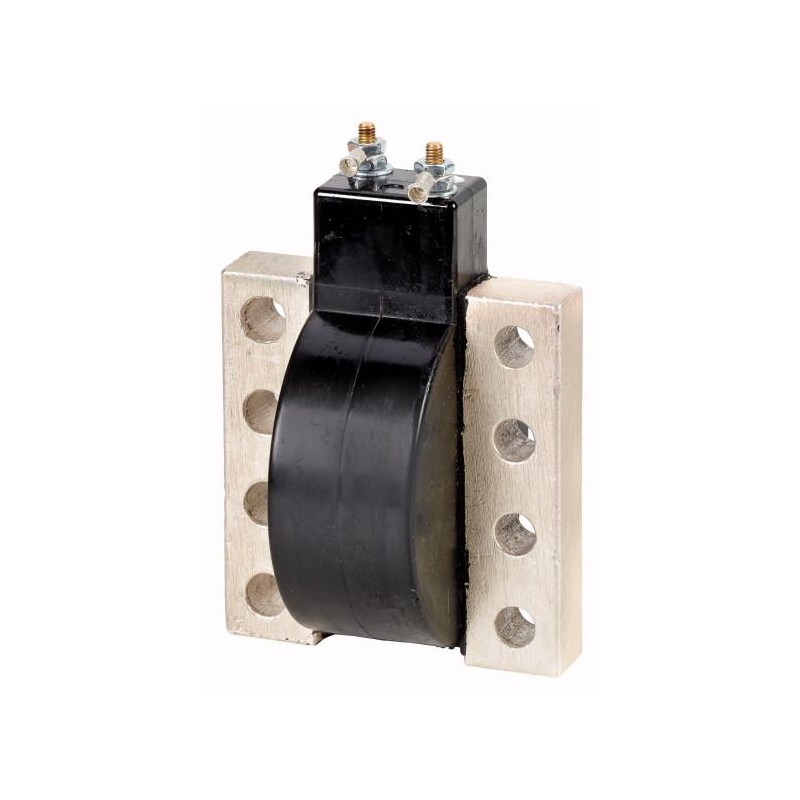

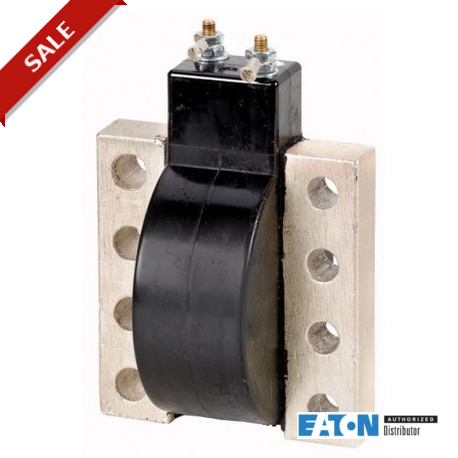

IZMX-CT40-N 156660 EATON ELECTRIC IZMX-CT40-N Current transformer N, external, IZMX40
IZMX-CT40-N
156660
EATON-MOELLER
IZMX-CT40-N Current transformer N, external, IZMX40
External measurement transformer for the N conductor protection or for the earth fault monitoring
Low-voltage industrial components > Current transformer
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Product range | Accessories | ||
Accessories | Current sensor for neutral conductor | ||
| The external transformer is required for the earth-fault protection and earth-fault alarm functions. a) For the neutral conductor in the case of 3-pole circuit-breakers b) For directly measuring the ground fault current at the grounded neutral point in the case of 3-pole and 4-pole circuit-breakers. Donotplace a jumper (in the wiring between the transformer and the circuit-breaker's terminals) between: a) 15, 16 and 19, 20; b) 17, 18 and 19, 20. | |||
For use with | IZMX-DTV-G +IZMX-DTV-G +IZMX-DTV-GZ +IZMX-DTU-A IZMX-DTU-A +IZMX-DTU-AZ +IZMX-DTU-G IZMX-DTU-G +IZMX-DTU-AM IZMX-DTU-AM +IZMX-DTU-AMZ IZMX-DTU-GMZ IZMX-DTU-GM +IZMX-DTU-GM +IZMX-DTU-GZ IZMX-DTP-G IZMX-DTP-G +IZMX-DTP-GZ +IZMX-DTP-GM +IZMX-DTP-GMZ IZMX-DTP-GM | ||
| Notes An additional control circuit terminal block is required. For fixed mounting circuit-breakers￫#156593 and withdrawable unit circuit-breakers ￫#156590 | |||
Technical data for design verification | |||
Operating ambient temperature min. | °C | -25 | |
Operating ambient temperature max. | °C | 70 |
| Low-voltage industrial components (EG000017) / Current transformer (EC002048) | |||
| Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer ([email protected] [AAB626011]) | |||
Model | Wound primary current converter | ||
Primary rated current | A | 4000 | |
Secondary rated current | A | 0 | |
Secondary rated apparent power | VA | 0 | |
Accuracy class | 1 | ||
Over voltage limiting factor | - | ||
Calibrated | No | ||
With shock protection | No | ||
Opening height | mm | 0 | |
Opening width | mm | 0 | |
Opening diameter | mm | 0 | |
Snap mounting | No | ||
With copper rail | No | ||
Secondary connection | Screw connection | ||
Number of primary inputs | 1 | ||
| Feature Name | Feature Value |
|---|---|
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Snap mounting (EF007462) | No |
| With copper rail (EF007380) | No |
