> EATON - MOELLER>Circuit Breakers IZM >IZM63N4-P63W-1 303676 ELECTRIC Automatic Int. IZM63N PXR25, 4P, 6300A, removable without chassis
Previous Product Next Product

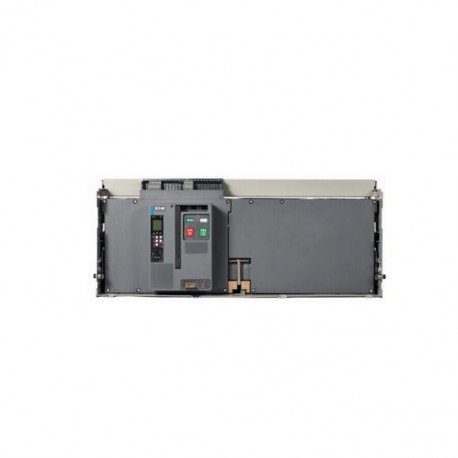

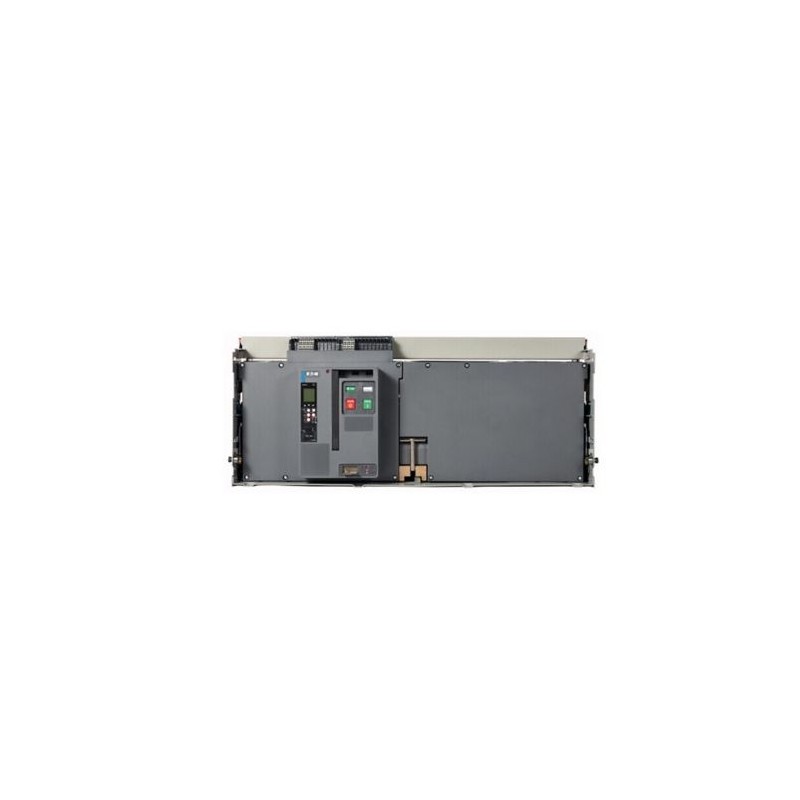

IZM63N4-P63W-1 303676 EATON ELECTRIC Automatic Int. IZM63N PXR25, 4P, 6300A, removable without chassis View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

IZM63N4-P63W-1 303676 EATON ELECTRIC Automatic Int. IZM63N PXR25, 4P, 6300A, removable without chassis

IZM63N4-P63W-1

303676

EATON-MOELLER

Automatic Int. IZM63N PXR25, 4P, 6300A, removable without chassis

Circuit-breaker, 4p, 6300 A, withdrawable

More details


Circuit Breakers IZM

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Circuit-breaker, 4p, 6300 A, withdrawable
Circuit-breaker IZM63 ( Air circuit-breakers/switch-disconnectors), 4 pole, Current Range: 4000 to 6300 A, Rated current = rated uninterrupted current( In = Iu): 6300 A, Rated ultimate short-circuit breaking capacity up to 440V/690V 42/42( Icu): 85 kA, Rated service short-circuit breaking capacity up to 440V/690V 42/42( Ics): 85 kA, Overload release, min.( Ir): 2520 A, Overload release, max.( Ir): 6300 A, Installation type: Withdrawable, Standard/Approval: IEC, Protective function: Universal protection and power measurement

Delivery program

Product range
Air circuit-breakers/switch-disconnectors
Product range
Open circuit-breakers
Current Range
5000 to 6300 A
Protective function
Universal protection and power measurement
Installation type
Withdrawable
Construction size
IZM63
Release system
Electronic release
Standard/Approval
IEC
Number of poles
4 pole
Degree of Protection
IP20, IP54 with protective cover, IP41 with door sealing frame
Rated current = rated uninterrupted current [In= Iu]
6300 A
Rated ultimate short-circuit breaking capacity up to 440V/690V 42/42 [Icu]
85 kA
Rated service short-circuit breaking capacity up to 440V/690V 42/42 [Ics]
85 kA
Overload release, min. [Ir]
2520 A
Overload release, max. [Ir]
6300 A
Non-delayed[Ii= Inx …]
2 - 15, OFF
Delayed[Isd= Irx …]
1.5 - 10

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-20 °C
Operating ambient temperature max.
+70 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN.pdf 51 Mbytes
IZM63N4-P63W-1 303676 EN_303676.pdf 149 Kbytes IZM63N4-P63W-1 303676 EN_303676.pdf
