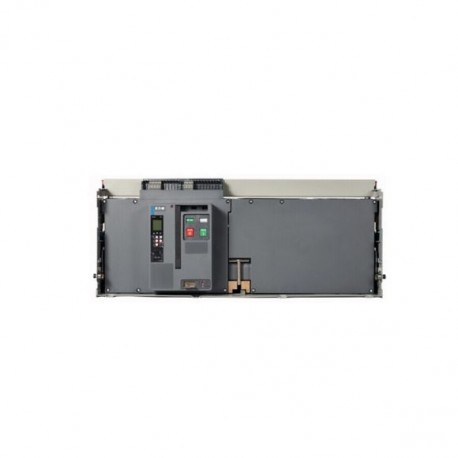

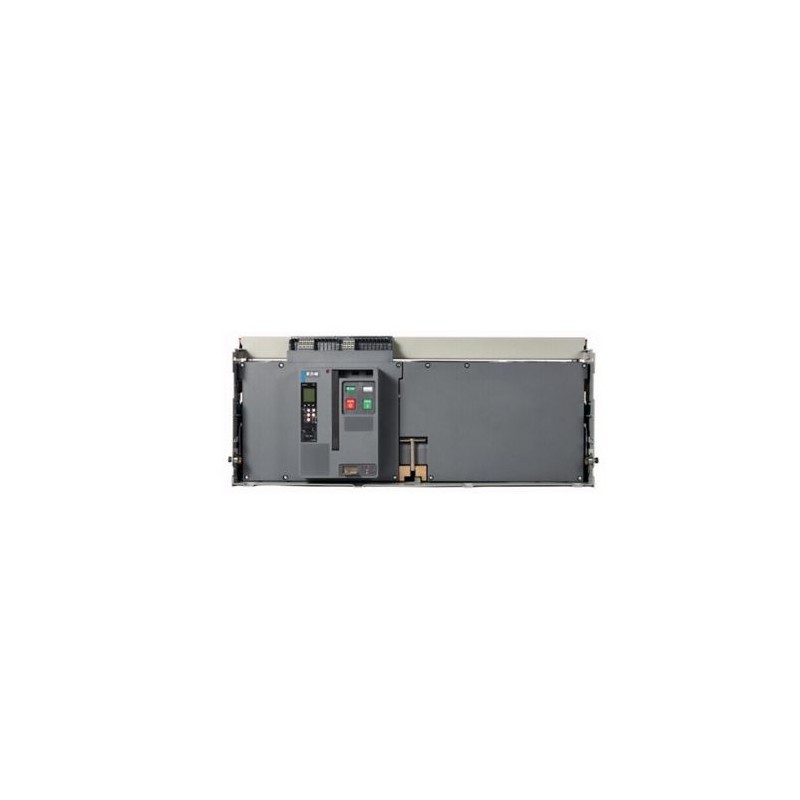

IZM63H4-P63W-1 303679 Y7-303679 EATON ELECTRIC Automatic int. IZM63H PXR25, 4P, 6300A, removable without cha..
IZM63H4-P63W-1
303679
Y7-303679
EATON-MOELLER
Automatic int. IZM63H PXR25, 4P, 6300A, removable without chassis
Circuit-breaker, 4p, 6300 A, withdrawable
Circuit-breaker IZM63 ( Air circuit-breakers/switch-disconnectors), 4 pole, Current Range: 4000 to 6300 A, Rated current = rated uninterrupted current( In = Iu): 6300 A, Rated ultimate short-circuit breaking capacity up to 440V/690V 42/42( Icu): 100 kA, Rated service short-circuit breaking capacity up to 440V/690V 42/42( Ics): 100 kA, Overload release, min.( Ir): 2520 A, Overload release, max.( Ir): 6300 A, Installation type: Withdrawable, Standard/Approval: IEC, Protective function: Universal protection and power measurement
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲RoHS conform
Open circuit breaker
IP41 with door sealing frame
IP54 with protective cover
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | None A |
| Rated voltage (EF003977) | None V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | None kA |
| Overload release current setting (EF002336) | 2520 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | None A |
| Adjustment range undelayed short-circuit release (EF007131) | None A |
| Power loss (EF005387) | None W |
| Device construction (EF008240) | |
| Integrated earth fault protection (EF007296) | false |
| Type of electrical connection of main circuit (EF006819) | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | false |
| DIN rail (top hat rail) mounting optional (EF008904) | false |
| Number of auxiliary contacts as normally closed contact (EF001377) | |
| Number of auxiliary contacts as normally open contact (EF001376) | |
| Number of auxiliary contacts as change-over contact (EF003531) | |
| With switched-off indicator (EF007006) | false |
| With integrated under voltage release (EF001390) | false |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | |
| Type of control element (EF006976) | |
| Complete device with protection unit (EF008906) | false |
| Motor drive integrated (EF006697) | false |
| Motor drive optional (EF007386) | false |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IZM63H4-P63W-1 Y7-303679 303679 EN_303679.pdf | 102 Kbytes |
|
