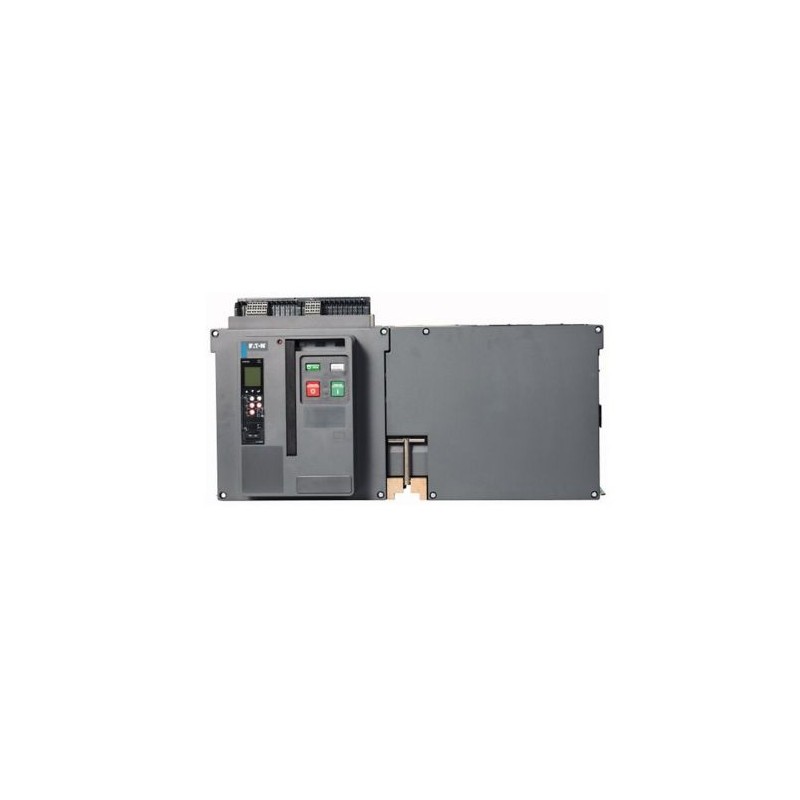

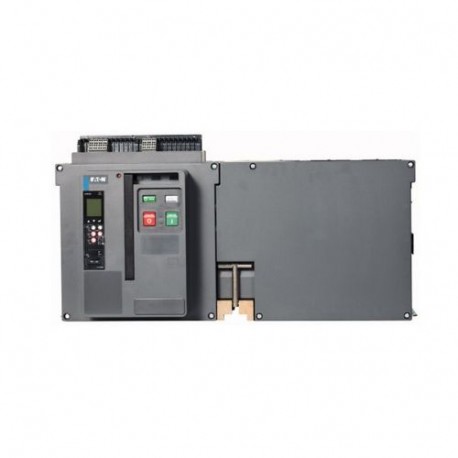

IZM63H3-P63F-1 303657 Y7-303657 EATON ELECTRIC Automatic int. IZM63H PXR25, 3P, 6300A, fixed mount
IZM63H3-P63F-1
303657
Y7-303657
EATON-MOELLER
Automatic int. IZM63H PXR25, 3P, 6300A, fixed mount
Circuit-breaker, 3p, 6300 A, fixed
Circuit-breaker IZM63 ( Air circuit-breakers/switch-disconnectors), 3 pole, Current Range: 4000 to 6300 A, Rated current = rated uninterrupted current( In = Iu): 6300 A, Rated ultimate short-circuit breaking capacity up to 440V/690V 42/42( Icu): 100 kA, Rated service short-circuit breaking capacity up to 440V/690V 42/42( Ics): 100 kA, Overload release, min.( Ir): 2520 A, Overload release, max.( Ir): 6300 A, Installation type: Fixed, Standard/Approval: IEC, Protective function: Universal protection and power measurement
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
Technical data - mechanical
IP41 with door sealing frame
IP54 with protective cover
Design verification as per IEC/EN 61439 - technical data
| Feature Name | Feature Value |
|---|---|
| Overload release current setting (EF002336) | 2520 A |
| Integrated earth fault protection (EF007296) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Complete device with protection unit (EF008906) | No |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | No |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IZM63H3-P63F-1 Y7-303657 303657 EN_303657.pdf | 102 Kbytes |
|
