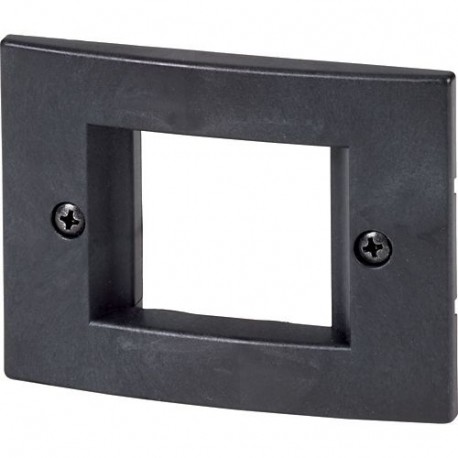

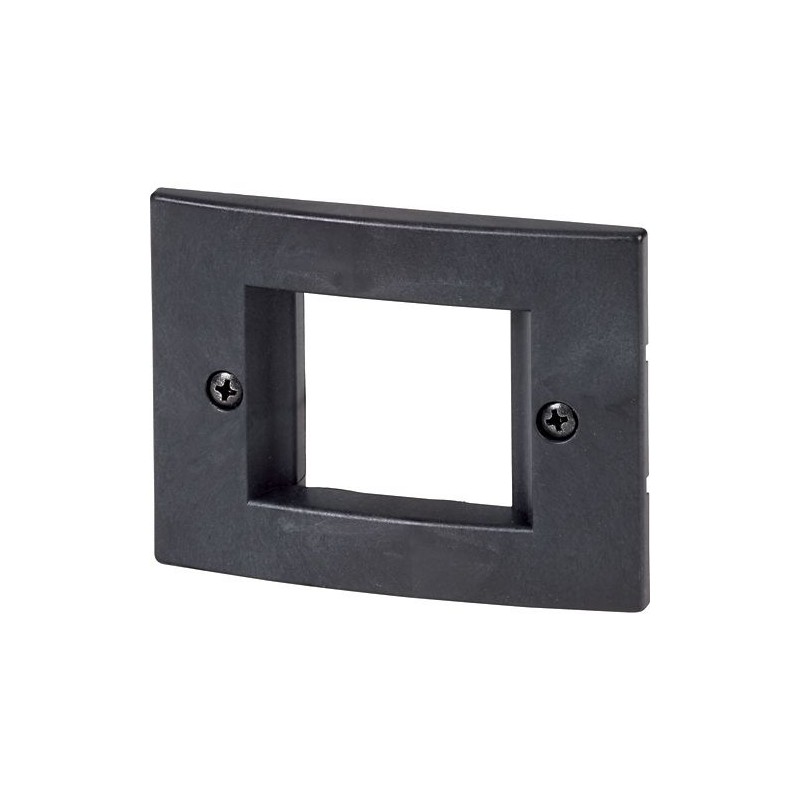

NZM4-XBRS 115277 Y7-115277 EATON ELECTRIC Insulating surround, narrow, for toggle lever, size 4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM4-XBRS 115277 Y7-115277 EATON ELECTRIC Insulating surround, narrow, for toggle lever, size 4

NZM4-XBRS

115277

Y7-115277

EATON-MOELLER

Insulating surround, narrow, for toggle lever, size 4

NZM4-XBRS

Eaton Moeller series NZM - Molded Case Circuit Breaker. Insulating surround, narrow, for toggle lever, size 4

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Can be used for NZM4(-4), N(N/O)4(-4)

More details


Distribution boards > Cover for distribution board

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $46.39
Unit price: $46.39
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM operating element accessory
Catalog Number
115277
Model Code
NZM4-XBRS
EAN
4015081146772
Product Length/Depth
178 mm
Product Height
16.5 mm
Product Width
136 mm
Product Weight
0.057 kg
Compliances
IEC
RoHS conform
Certifications
CE marking
IEC60947

Product specifications

Used with
N(S)4(-4)
NZM4(-4)
Type
Special features
For toggle lever
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Black
Frame
NZM4
Degree of protection
IP40
Material
Plastic

ETIM for 115277 Distribution boards (EC000775)
Feature Name Feature Value
Height (EF000040) 16.5 mm
Width (EF000008) 136 mm
Depth (EF000049) 178 mm
Material (EF002169) Plastic
Hinging (EF001076) No
Quick locking (EF001146) No
Degree of protection (IP) (EF005474) IP40
Colour (EF000007) Black
Transparent (EF006243) No

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
