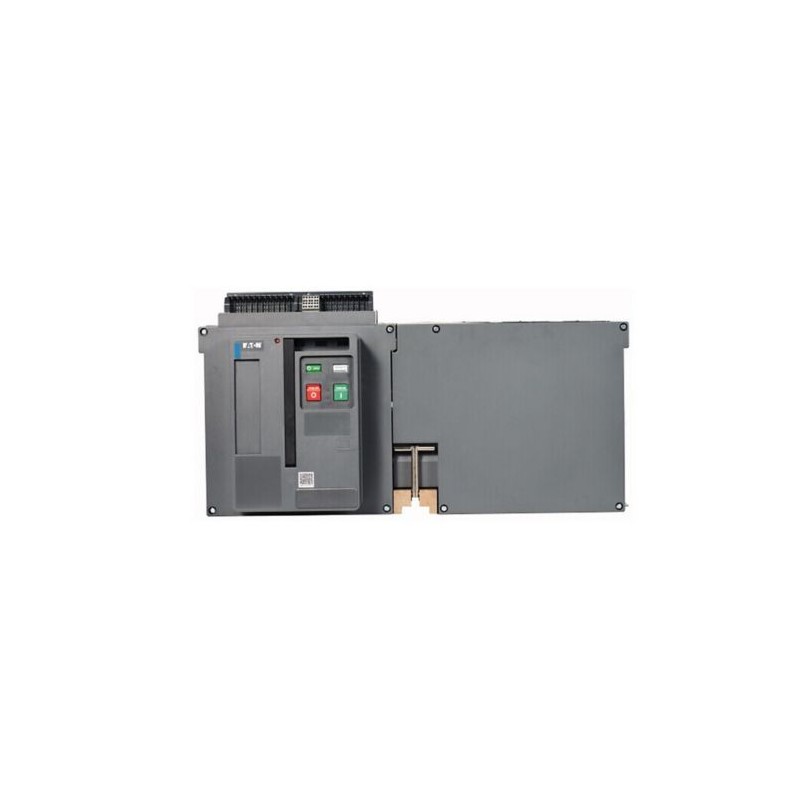

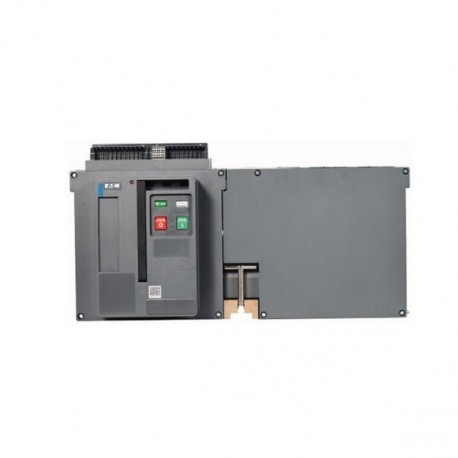

IN63H3-50F-1 303682 EATON ELECTRIC Int.-Disconnector IN63H,3P,5000A,fixed
IN63H3-50F-1
303682
Y7-303682
EATON-MOELLER
Int.-Disconnector IN63H,3P,5000A,fixed
Switch-disconnector, 3p, 5000 A, fixed
Circuit Breakers IZM
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Switch-disconnector, 3p, 5000 A, fixed
Switch-disconnector, Air circuit-breakers/switch-disconnectors, Open switch-disconnectors, 5000 A, without protection, Fixed, Construction size: IN63, Standard/Approval: IEC, Number of poles: 3 pole, Degree of Protection: IP20, IP55 with protective cover, Rated current = rated uninterrupted current: In = Iu 5000 A, up to 440 V 50/60 Hz: Icm 217 kA, t = 1 s: Icw 100 kA
General specifications
Product name
Eaton Moeller series IZMX/INX switch-disconnector
Part no.
IN63H3-50F-1
EAN
9010238192171
Product Length/Depth
372 millimetre
Product height
426 millimetre
Product width
887 millimetre
Product weight
125.2 kilogram
Compliances
IEC/EN 60947
Product Tradename
IZMX/INX
Product Type
Switch-disconnector
Product Sub Type
None
Delivery program
Type
Air circuit breakers/switch-disconnector
Open switch-disconnector
Open switch-disconnector
Number of poles
Three-pole
Amperage Rating
5000 A
Frame
IN63
Technical Data - Electrical
Voltage rating at AC
690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp)
8000 V AC
Rated uninterrupted current (Iu) at 50°C
5000 A
Rated uninterrupted current (Iu) at 60°C
5000 A
Rated uninterrupted current (Iu) at 70°C
5000 A
Rated short-time withstand current (t = 1 s)
100 kA
Rated short-time withstand current at 50/60 Hz (t = 3 s)
65 kA
Rated short-circuit making capacity up to 440 V, 50/60 Hz
220 kA
Rated short-circuit making capacity up to 690 V, 50/60 Hz
220 kA
Power of withdrawable switch with cassette
1550 W
Closing delay via spring release
40 ms
Opening delay (total)
40 ms
Number of standard mechanical operations per hour - max
60
Utilization category
B
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
3000 operations
Direction of incoming supply
As required
Technical Data - Mechanical
Mounting Method
Fixed
Degree of protection
IP20
IP41 with door sealing frame
IP54 with protective cover
IP41 with door sealing frame
IP54 with protective cover
Protection
None
Lifespan, mechanical
5000 operations
8000 operations (switching capacity, with maintenance)
8000 operations (switching capacity, with maintenance)
Design verification as per IEC/EN 61439 - technical data
Heat dissipation at rated current with fixed mounting
620 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
