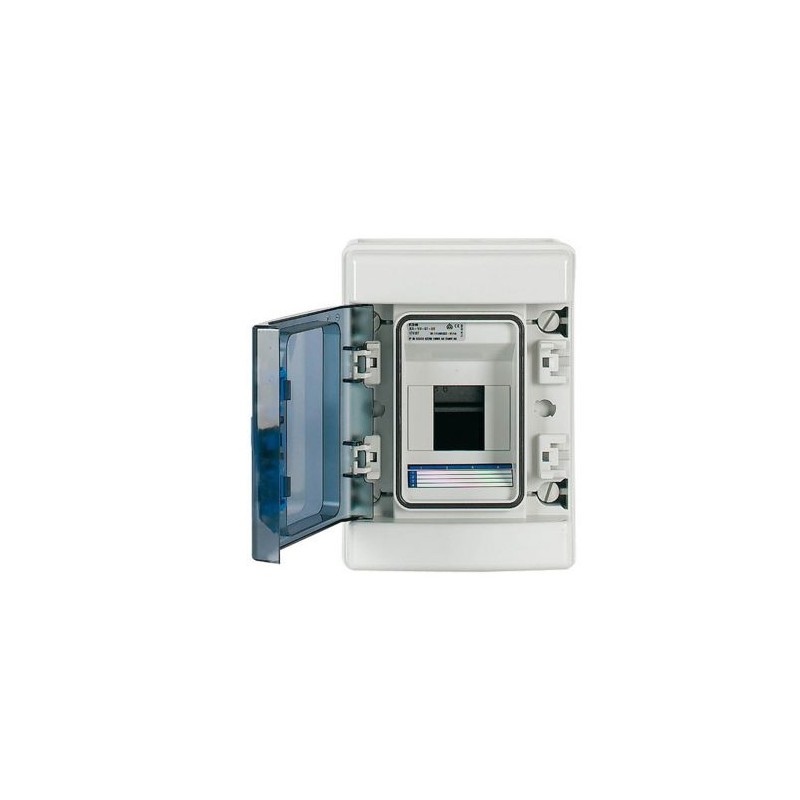

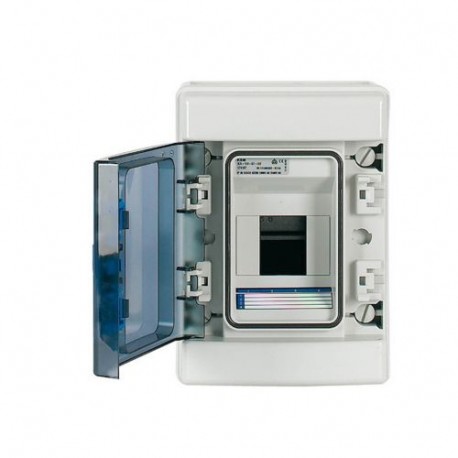

IKA-1/4-ST 174221 Y7-174221 EATON ELECTRIC IKA-1/4-ST IKA professional distribution board, IP65 + clamps
IKA-1/4-ST
174221
Y7-174221
EATON-MOELLER
IKA-1/4-ST IKA professional distribution board, IP65 + clamps
IKA-1/4-ST
Eaton xComfort IKA LV systems Final Distribution Boards. IKA professional distribution board, IP65 + clamps, 1/4-ST
IKA distribution board for damp locations RAL7035, with neutral and protective conductor terminal, foamed-in-place gasket, applied using CNC, for IP65 degree of protection as per IEC/EN 62208, 4 space units, 1-row, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, integrated module compensation system designed to accommodate various device widths, metric knockouts with centering point, enclosure made of ABS and door made of polycarbonates, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm, AC 1000 V , DC 1500 V, RoHs-compliant, consisting of a plastic base with a DIN-rail made of galvanized sheet steel, direct mounting wall mounting holes, finger-proof
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
IEC/EN 60670-24
Delivery program
Light gray (RAL 7035)
Technical data - electrical
Technical data - mechanical
Surface mounting
DIN-rail
IP65
PE: 2 x (2.5 mm² - 6 mm²) + 2 x (4 mm² - 10 mm²) + 1 x (16 mm² - 35 mm²)
Single
Temperature-rise verification as per IEC 60890
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Device support rails
Basic device
Locking screws can be sealed
Sealing caps
Neutral-/protective conductor terminal
Current circuit designation
Extension possible
Installation distribution board
Basic device
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 1 |
| Width in number of modular spacings (EF002950) | 4 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | With notch |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | Yes |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Plastic |
| Built-in depth (EF000218) | 70 mm |
| Built-in height (EF000332) | 0 mm |
| Built-in width (EF000846) | 0 mm |
| Inner depth (EF001131) | 60 mm |
| Earthing terminal block (EF015776) | No |
| Neutral terminal block (EF015777) | No |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Degree of protection (IP) (EF005474) | IP65 |
| Height (EF000040) | 231 mm |
| Width (EF000008) | 166 mm |
| Depth (EF000049) | 110 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IKA-1/4-ST Y7-174221 174221 ES_174199.pdf | 3 Mbytes |
|
