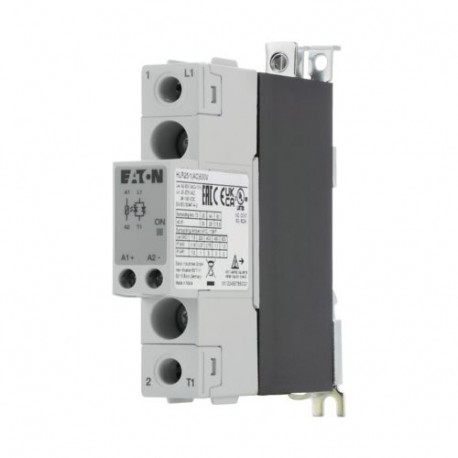

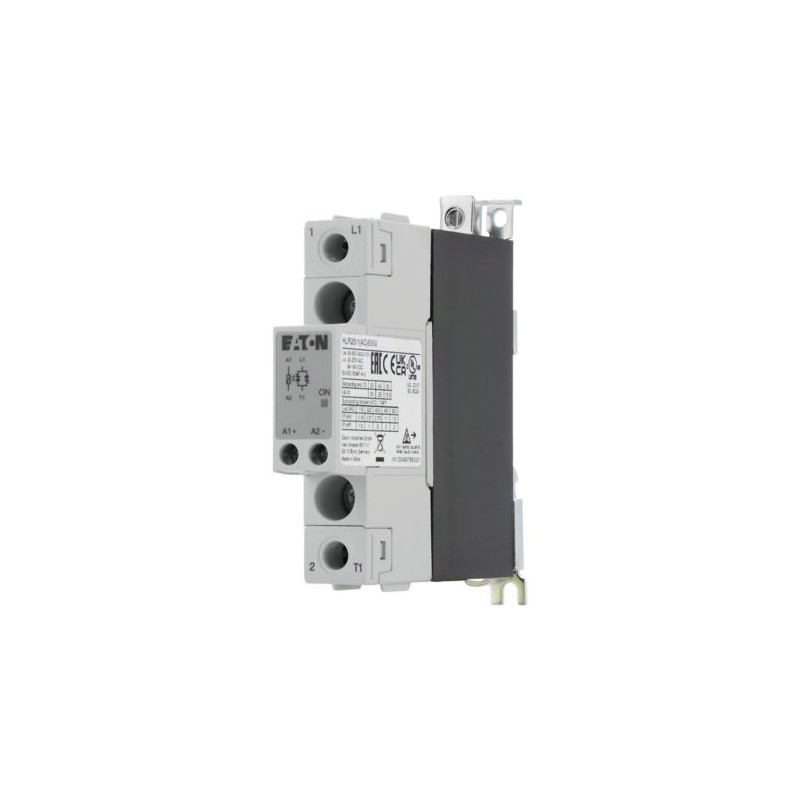

HLR25/1(AC)600V 360045 Y7-360045 EATON ELECTRIC HLR25/1(AC)600V
HLR25/1(AC)600V
360045
Y7-360045
EATON-MOELLER
HLR25/1(AC)600V
Solid-state relay, 1-phase, 25 A, 600 - 600 V, AC/DC
Solid-state relay, 1-phase, 25 A, 600 - 600 V, AC/DC, IP20, Screw connection, Switching at zero-crossing, CE, UL 508, EAC
Relays > Solid state relay
Standard Soft Starters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Solid-state relay, 1-phase, 25 A, 600 - 600 V, AC/DC
Solid-state relay, 1-phase, 25 A, 600 - 600 V, AC/DC, IP20, Screw connection, Switching at zero-crossing, CE, UL 508, EAC
General specifications
Product name
Eaton Moeller series HLR solid state relay
Part no.
HLR25/1(AC)600V
EAN
4015081998128
Product Length/Depth
103.5 millimetre
Product height
110 millimetre
Product width
17.8 millimetre
Product weight
0.205 kilogram
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
CE
EAC
UL 508
UL-File No.: E251034, UL report applies to both US and Canada
EAC
UL 508
UL-File No.: E251034, UL report applies to both US and Canada
Product Tradename
HLR
Product Type
Solid-state relay
Product Sub Type
None
General information
Degree of protection
IP20
Frequency rating
45 Hz - 65 Hz
Mounting position
Mount device in specified orientation and do not obstruct the heatsink
Number of phases
1
Number of pilot lights
1
Overvoltage category
III
Pollution degree
2
Rated impulse withstand voltage (Uimp)
6 kV (1.2/50 μs)
Series
HLR
Shock resistance
15/11 g/ms (according to EN 50155, EN 61373)
Type
Solid-state relay
Vibration resistance
2 g/axis (2-100 Hz, IEC 60068-2-6, EN 50155, EN 61373)
Voltage type
AC/DC
Features & Functions
Features
Modular version
Functions
Switching at zero-crossing
Electrical connection type for auxiliary- and control-current circuit
Screw connection
Electrical connection type of main circuit
Screw connection
Climatic environmental conditions
Altitude
9
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
100 °C
Climatic proofing
95% relative humidity non-condensing at 40°C
Operating temperature - min
-40 °C
Operating temperature - max
80 °C
Electro magnetic compatibility
Air discharge
8 kV (according to IEC/EN 61000-4-2)
Burst Impulse
Main: 2 kV, 5 kHz PC 1 (according to IEC/EN 61000-4-4)
Control: 1 kV, 5 kHz PC 1 (according to IEC/EN 61000-4-4)
Control: 1 kV, 5 kHz PC 1 (according to IEC/EN 61000-4-4)
Contact discharge
4 kV (according to IEC/EN 61000-4-2)
Electromagnetic fields
10 V/m, 80 - 1000 MHz and 1.4 - 2.0 GHz, PC 1
3 V/m, 2.0 - 2.7 GHz, PC 1
3 V/m, 2.0 - 2.7 GHz, PC 1
Immunity to line-conducted interference
10 V/m, 0.15 - 80 MHz, PC 1 (according to IEC/EN 61000-4-6)
Radio interference class
Class A
Terminal capacities
Terminal capacity (flexible with ferrule)
Main: 1 x 1-4 mm², 2 x 1-4 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Terminal capacity (solid)
Main: 1 x 2.5-6 mm², 2 x 2.5-6 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Terminal capacity (solid/stranded AWG)
Main: 1 x 14-10, 2 x 14-10
Control: 1 x 18-12, 2 x 18-12
Control: 1 x 18-12, 2 x 18-12
Terminal capacity (stranded)
Main: 1 x 2.5-6 mm², 2 x 2.5-6 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Tightening torque
Main: 2 Nm (17.7 lb-in)
Control: 0.5 Nm (4.4 lb-in)
Control: 0.5 Nm (4.4 lb-in)
Screwdriver size
Main: Pozidriv 2
Control: Pozidriv 1
Control: Pozidriv 1
Electrical rating
Operating voltage - max.
600 V
Operating voltage - min.
600 V
Rated operational current (Ie) at AC-1
0 A
Rated operational current (Ie) at AC-3
0 A
Rated operational current (Ie) at AC-51
25 A
Rated operational current (Ie) at AC-53A
5 A
Rated operational current (Ie) at AC-53B
0 A
Rated operational voltage (Ue) at AC - min
42 V
Rated operational voltage (Ue) at AC - max
600 V
Control circuit
Delay time
2 periods at 230 V AC
Drop-out time
1/2 period + 40 microseconds at 230 V AC
Drop-out voltage
5 V AC
Input current
5 mA at 230 V AC
Pick-up voltage
20 V AC
Rated control supply voltage (Us) at AC, 50 Hz - min
20 V
Rated control supply voltage (Us) at AC, 50 Hz - max
275 V
Rated control supply voltage (Us) at AC, 60 Hz - min
20 V
Rated control supply voltage (Us) at AC, 60 Hz - max
275 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
190 V
Motor rating
Rated operational power at 220/230 V, 50 Hz
0.37 kW
Rated operational power at 400 V, 50 Hz
0.75 kW
Design verification
Equipment heat dissipation, current-dependent Pvid
25 W
Heat dissipation per pole, current-dependent Pvid
25 W
Rated operational current for specified heat dissipation (In)
25 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 9.0
Relays (EG000019) / Solid state relay (EC002055)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Contactor (LV) / Solid state relay (ecl@ss13-27-37-10-14 [ACN970016])
Type of electric connection
Screw connection
Complete with socket
No
With detachable clamps
No
Modular version
Yes
With LED indication
Yes
Rated control supply voltage AC 50 Hz
20 - 275 V
Rated control supply voltage AC 60 Hz
20 - 275 V
Rated control supply voltage DC
24 - 190 V
Voltage type for actuating
AC/DC
Number of phases
1
Model
Other
Type of switch function
Switching at zero-crossing
Yes
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
42 - 600 V
Operating voltage AC 60 Hz
42 - 600 V
Operating voltage DC
0 - 0 V
Rated operation current Ie at AC-1
0 A
Rated operation current Ie at AC-3
0 A
Rated operation current Ie at AC-51
25 A
Rated operation current Ie at AC-53a
5 A
Rated operation current Ie at AC-53b
0 A
Degree of protection (IP)
IP20
Relay technology category according to IEC 61810-7
Width
17.8 mm
Height
110 mm
Depth
103.5 mm
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Complete with socket (EF003359) | No |
| With detachable clamps (EF003340) | No |
| Modular version (EF001126) | Yes |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 20 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 20 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Number of phases (EF000351) | 1 |
| Model (EF000010) | Other |
| Switching at zero-crossing (EF011956) | Yes |
| Voltage type (operating voltage) (EF005294) | AC |
| Operating voltage AC 50 Hz (EF008206) | 42 V |
| Operating voltage AC 60 Hz (EF008207) | 42 V |
| Operating voltage DC (EF008208) | 0 V |
| Rated operation current Ie at AC-1 (EF006069) | 0 A |
| Rated operation current Ie at AC-3 (EF006070) | 0 A |
| Rated operation current Ie at AC-51 (EF009488) | 25 A |
| Rated operation current Ie at AC-53a (EF009489) | 5 A |
| Rated operation current Ie at AC-53b (EF009765) | 0 A |
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 17.8 mm |
| Height (EF000040) | 110 mm |
| Depth (EF000049) | 103.5 mm |
