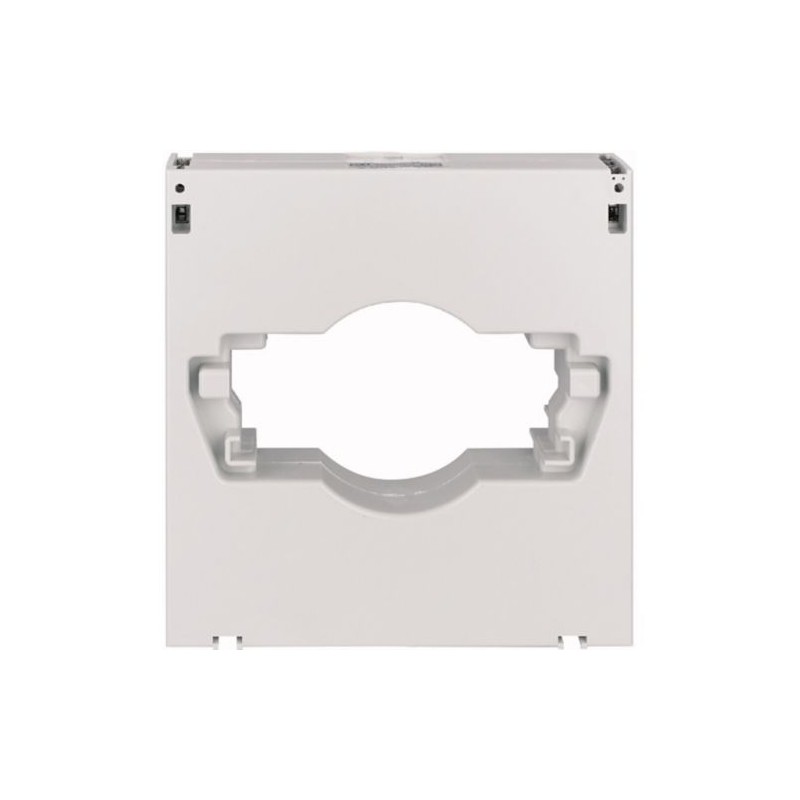

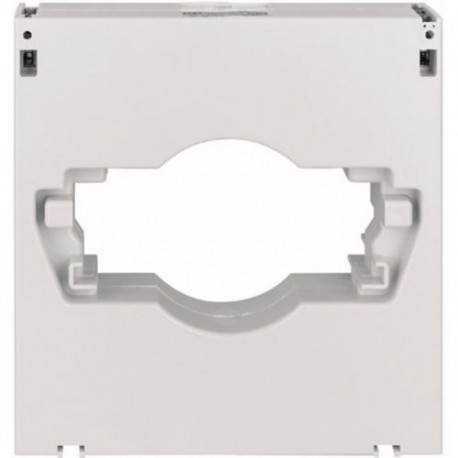

HF8A-1500/5A-CLASS-0.2S 741K0031 EATON ELECTRIC HF8A-1500/5A-CLASS-0.2S
HF8A-1500/5A-CLASS-0.2S
741K0031
EATON-MOELLER
HF8A-1500/5A-CLASS-0.2S
Eaton Distribution parts. Current transformer HF8A, 1500A/5A, Class 0.2S
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
741K0031
Model Code
HF8A-1500/5A-CLASS-0.2S
EAN
5703498702535
Product Length/Depth
183 mm
Product Height
54 mm
Product Width
185 mm
Product Weight
1.665 kg
Compliances
RoHS conform
Product specifications
Opening width - min
130 mm
Opening height - min
56 mm
Nominal current
1500 A
Number of inputs (primary)
1
Opening diameter
81 mm
Opening height - max
56 mm
Secondary current input
5 A
Secondary rated apparent power
7.5 VA
Opening width - max
130 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 10
Secondary connection
Screw connection
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF8A-1500/5A-CLASS-0.2S 741K0031 EN_741K0031.pdf | 138 Kbytes |
|
