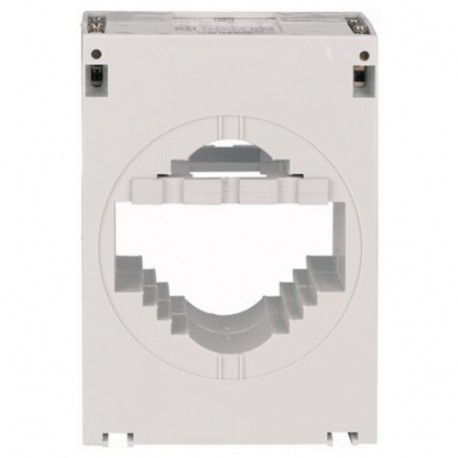

HF7A-2500/1A 741H0036 Y7-135489 EATON ELECTRIC HF7A-2500/1A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

HF7A-2500/1A 741H0036 Y7-135489 EATON ELECTRIC HF7A-2500/1A

HF7A-2500/1A

741H0036

Y7-135489

EATON-MOELLER

HF7A-2500/1A

Current transformer HF7A, 2500A/1A

More details


Modular Switchgear – Others and Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $251.72
Unit price: $251.72
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲

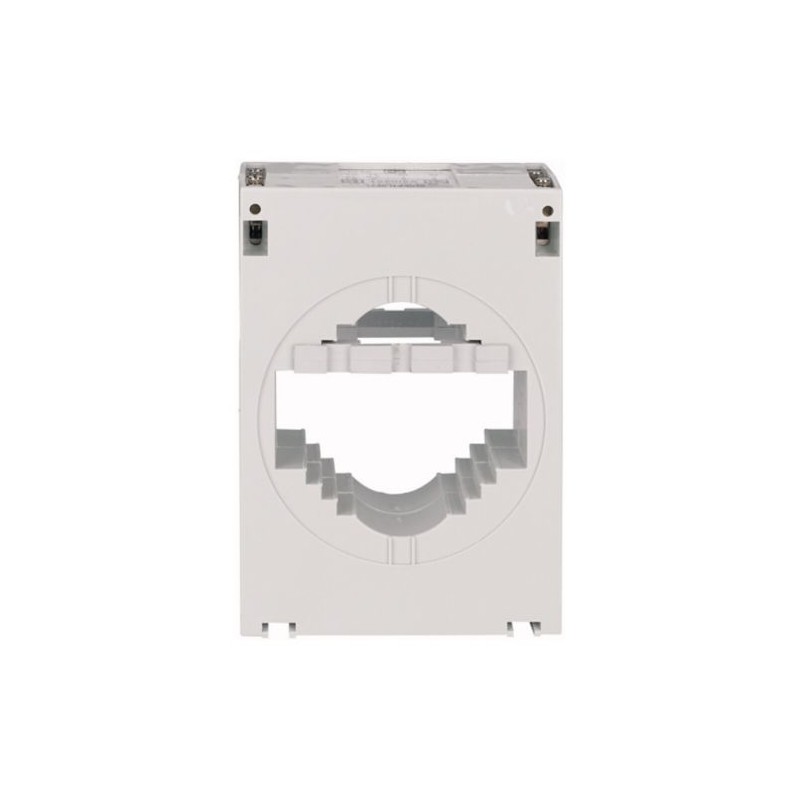

Current transformer HF7A, 2500A/1A
Current transformer HF7A, Class 0.5, single phase, 2500A/1A

General specifications
Product name
Eaton Distribution parts
Part no.
HF7A-2500/1A
EAN
5703498702283
Product Length/Depth
146 millimetre
Product height
52 millimetre
Product width
106 millimetre
Product weight
1.245 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Accuracy class (ratio)
3
Model
Through-feed current converter
Nominal current
2500 A
Number of inputs (primary)
1
Opening diameter
65 mm
Opening height - max
60 mm
Opening height - min
60 mm
Opening width - max
80 mm
Opening width - min
80 mm
Over current limiting factor
FS 5
Secondary connection
Screw connection
Secondary current input
1 A
Secondary rated apparent power
30 V·A

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Current transformer (EC002048)
Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer (ecl@ss13-27-21-09-02 [AAB626019])
Model
Through-feed current converter
Rated primary current
2500 A
Rated secondary current
1 A
Rated secondary apparent power
30 VA
Power consumption
W
Accuracy class
3
Overcurrent limiting factor
FS 5
Calibrated
No
With shock protection
No
Height opening
60 - 60 mm
Width opening
80 - 80 mm
Opening diameter
65 mm
Snap mounting
Yes
With copper rail
No
Secondary connection
Screw connection
Number of primary inputs
1

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
HF7A-2500/1A Y7-135489 741H0036 EN_741H0036.pdf 105 Kbytes HF7A-2500/1A Y7-135489 741H0036 EN_741H0036.pdf
