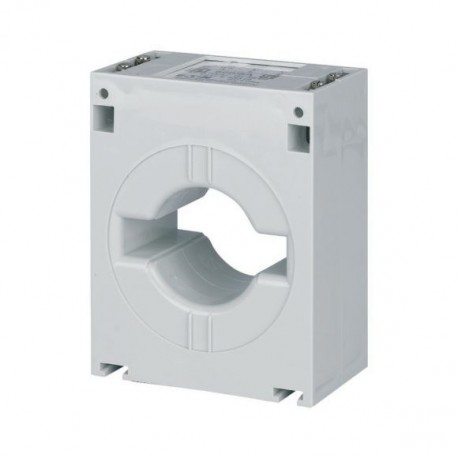

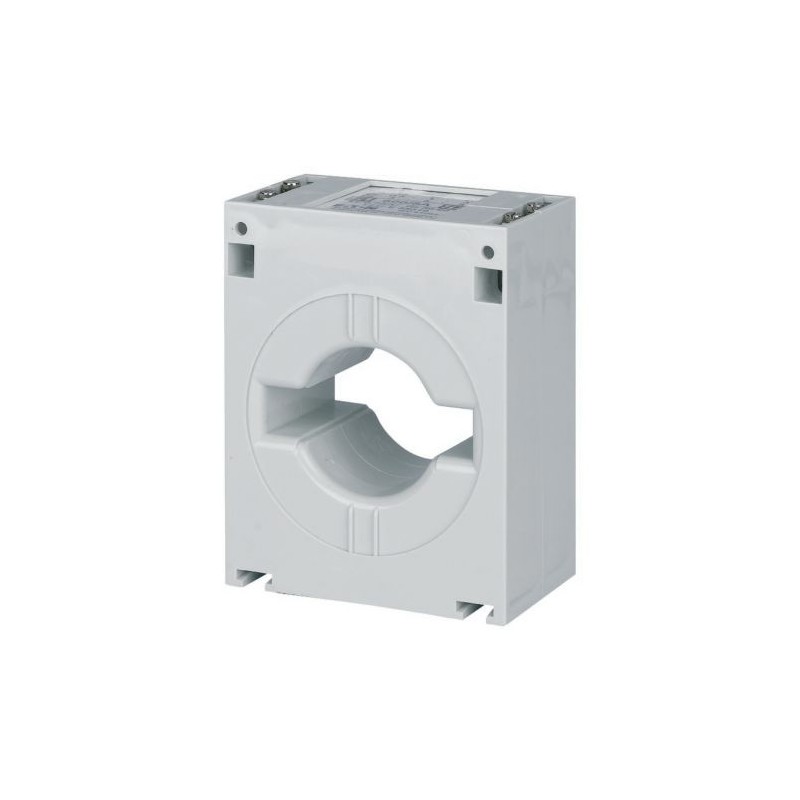

HF5-500/1A 741E0029 EATON ELECTRIC Current transformer HF5, 500A/1A
HF5-500/1A
741E0029
EATON-MOELLER
Current transformer HF5, 500A/1A
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Current transformer HF5, 500A/1A
Current transformer HF5, Class 0.5, single phase, 500A/1A
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Current transformer (EC002048)
Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer ([email protected] [AAB626014])
Model
Through-feed current converter
Primary rated current
500 A
Secondary rated current
1 A
Secondary rated apparent power
15 VA
Accuracy class
0.5
Over current limiting factor
FS 5
Calibrated
No
With shock protection
No
Height opening
13 mm
Width opening
61 mm
Opening diameter
39 mm
Snap mounting
Yes
With copper rail
No
Secondary connection
Screw connection
Number of primary inputs
1
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF5-500/1A 741E0029 EN_741E0029.pdf | 142 Kbytes |
|
