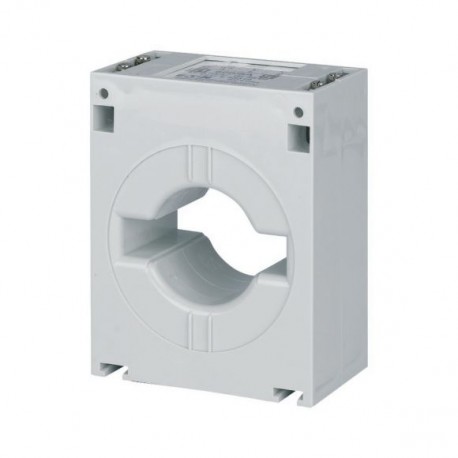

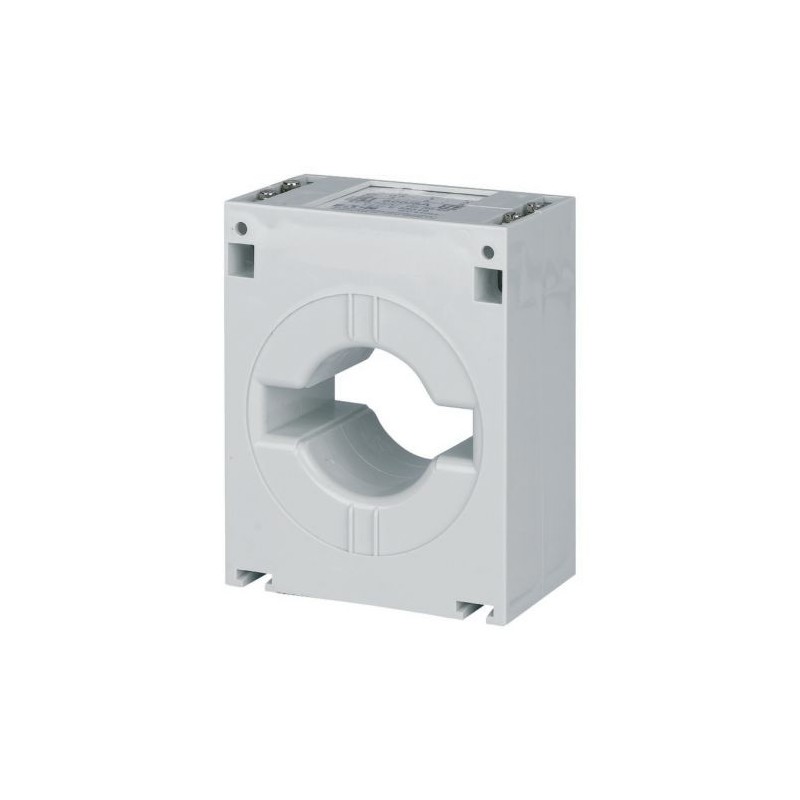

HF5-1000/1A 741E0032 EATON ELECTRIC Current transformer HF5, 1000A/1A
HF5-1000/1A
741E0032
Y7-135425
EATON-MOELLER
Current transformer HF5, 1000A/1A
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Current transformer HF5, 1000A/1A
Current transformer HF5, Class 0.5, single phase, 1000A/1A
General specifications
Product name
Eaton Distribution parts
Part no.
HF5-1000/1A
EAN
5703498701651
Product Length/Depth
83 millimetre
Product height
52 millimetre
Product width
105 millimetre
Product weight
0.685 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Accuracy class (ratio)
3
Model
Through-feed current converter
Nominal current
1000 A
Number of inputs (primary)
1
Opening diameter
39 mm
Opening height - max
13 mm
Opening height - min
13 mm
Opening width - max
61 mm
Opening width - min
61 mm
Over current limiting factor
FS 5
Secondary connection
Screw connection
Secondary current input
1 A
Secondary rated apparent power
30 V·A
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Current transformer (EC002048)
Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer (ecl@ss13-27-21-09-02 [AAB626019])
Model
Through-feed current converter
Rated primary current
1000 A
Rated secondary current
1 A
Rated secondary apparent power
30 VA
Power consumption
W
Accuracy class
3
Overcurrent limiting factor
FS 5
Calibrated
No
With shock protection
No
Height opening
13 - 13 mm
Width opening
61 - 61 mm
Opening diameter
39 mm
Snap mounting
Yes
With copper rail
No
Secondary connection
Screw connection
Number of primary inputs
1
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF5-1000/1A 741E0032 EN_741E0032.pdf | 105 Kbytes |
|
