HF4B-50/5A 741C2057 EATON ELECTRIC HF4B-50/5A
HF4B-50/5A
741C2057
EATON-MOELLER
HF4B-50/5A

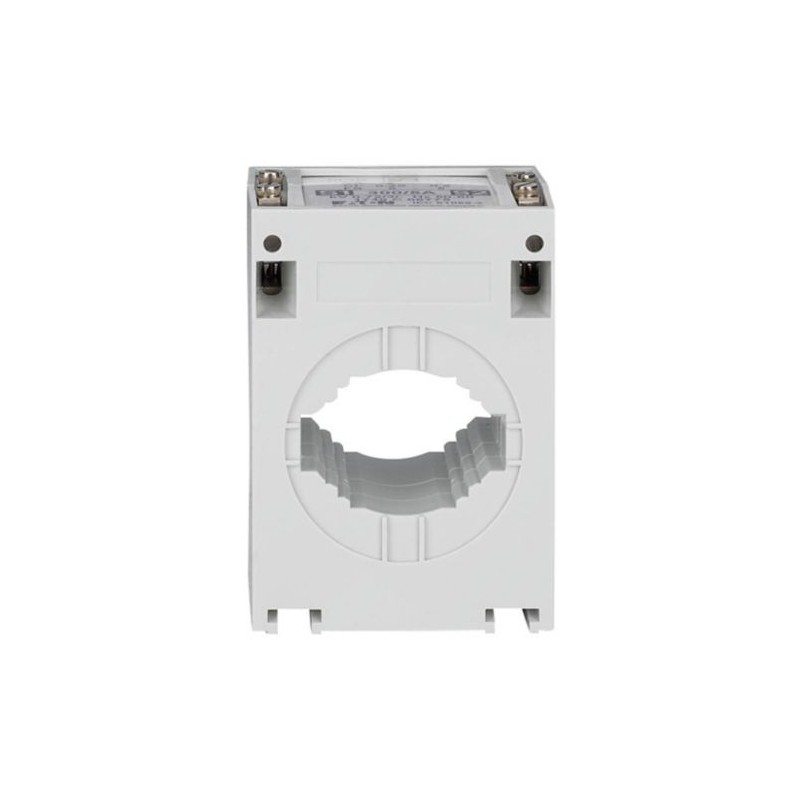

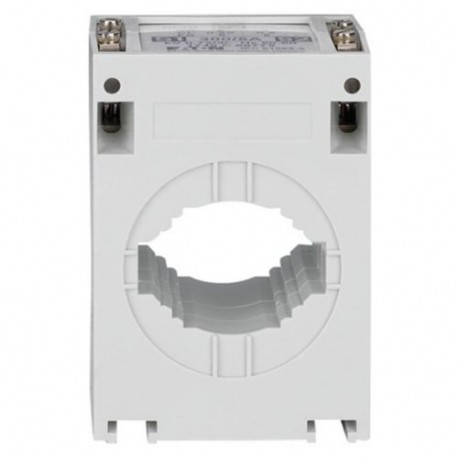

Current transformer HF4B, 50A/5A
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Current transformer HF4B, 50A/5A
Current transformer HF4B, Class 3, single phase, 50A/5A
General specifications
Product name
Eaton Distribution parts
Part no.
HF4B-50/5A
EAN
5703498701040
Product Length/Depth
61 millimetre
Product height
52 millimetre
Product width
85.5 millimetre
Product weight
0.425 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Accuracy class (ratio)
3
Model
Through-feed current converter
Nominal current
50 A
Number of inputs (primary)
1
Opening diameter
28 mm
Opening height - max
25 mm
Opening height - min
25 mm
Opening width - max
40 mm
Opening width - min
40 mm
Over current limiting factor
FS 5
Secondary connection
Screw connection
Secondary current input
5 A
Secondary rated apparent power
2 V·A
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Current transformer (EC002048)
Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer (ecl@ss13-27-21-09-02 [AAB626019])
Model
Through-feed current converter
Rated primary current
50 A
Rated secondary current
5 A
Rated secondary apparent power
2 VA
Power consumption
W
Accuracy class
3
Overcurrent limiting factor
FS 5
Calibrated
No
With shock protection
No
Height opening
25 - 25 mm
Width opening
40 - 40 mm
Opening diameter
28 mm
Snap mounting
Yes
With copper rail
No
Secondary connection
Screw connection
Number of primary inputs
1
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF4B-50/5A 741C2057 EN_741C2057.pdf | 143 Kbytes |
|
