HF4B-200/1A 741C2070 EATON ELECTRIC HF4B-200/1A
HF4B-200/1A
741C2070
Y7-135395
EATON-MOELLER
HF4B-200/1A

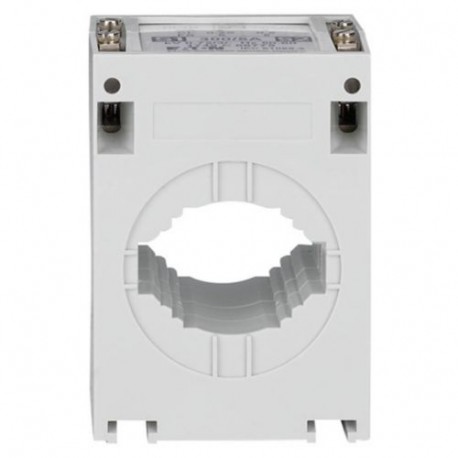

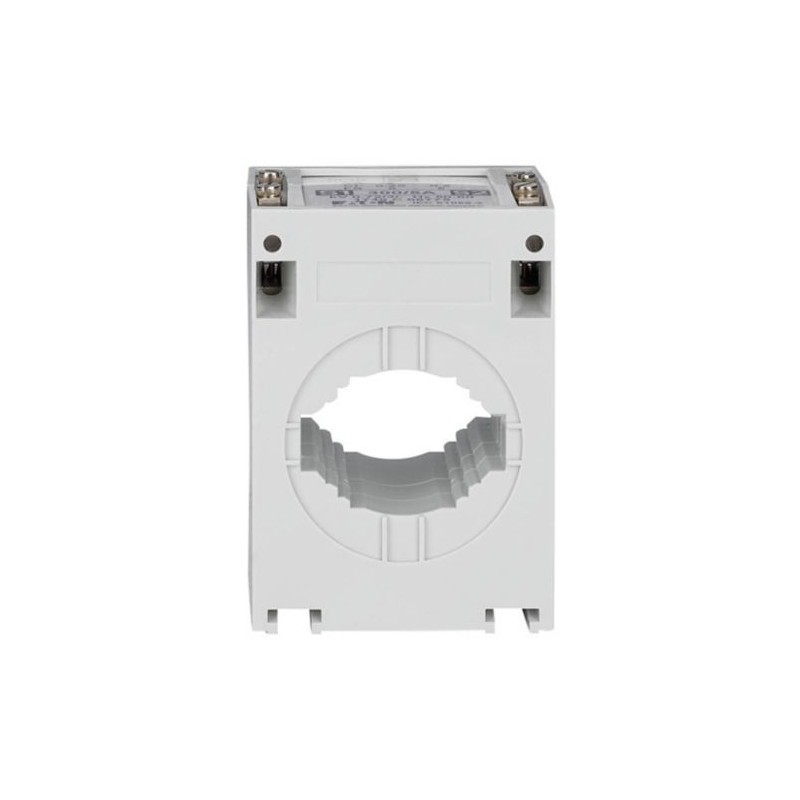

Eaton Distribution parts. Current transformer HF4B, 200A/1A
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
741C2070
Model Code
HF4B-200/1A
EAN
5703498701286
Product Length/Depth
61 mm
Product Height
52 mm
Product Width
85.5 mm
Product Weight
0.48 kg
Compliances
RoHS conform
Product specifications
Opening width - min
40 mm
Opening height - min
25 mm
Nominal current
200 A
Number of inputs (primary)
1
Opening diameter
28 mm
Opening height - max
25 mm
Secondary current input
1 A
Secondary rated apparent power
5 VA
Opening width - max
40 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 5
Secondary connection
Screw connection
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF4B-200/1A 741C2070 EN_741C2070.pdf | 105 Kbytes |
|
