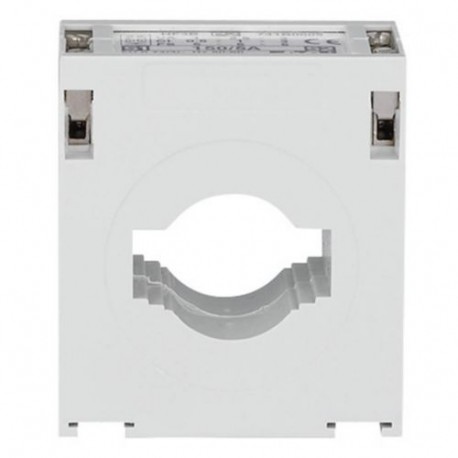

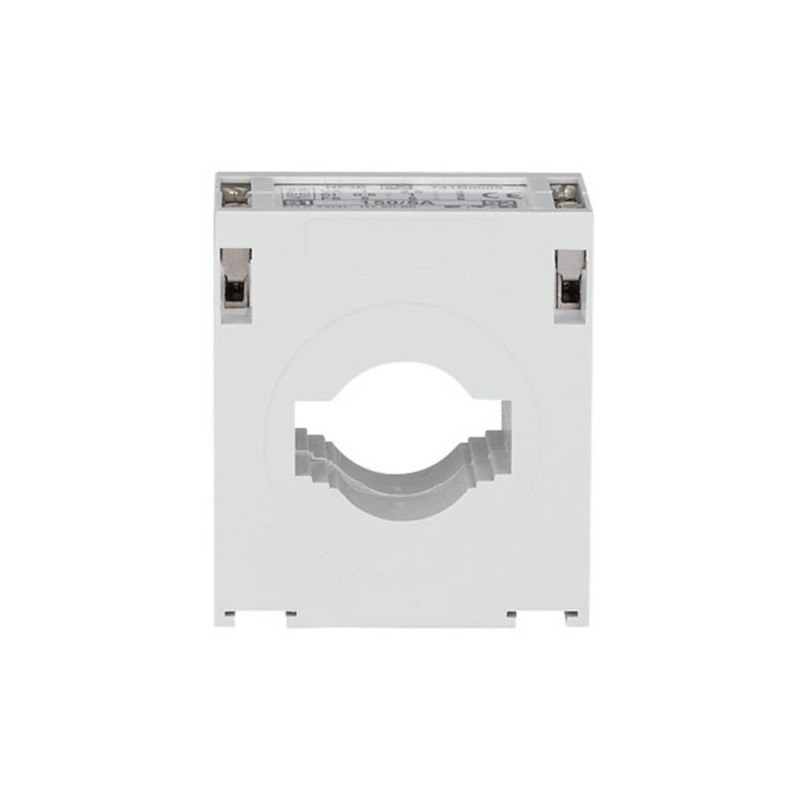

HF3B-300/1A 741B0037 Y7-135316 EATON ELECTRIC HF3B Current Transformer, 300A/1A
HF3B-300/1A
741B0037
Y7-135316
EATON-MOELLER
HF3B Current Transformer, 300A/1A
HF3B-300/1A
Current transformer HF3B, 300A/1A
Current transformer HF3B, Class 0.5, single phase, 300A/1A
Low-voltage industrial components > Current transformer
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Technical data ETIM 9.0
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 300 A |
| Rated secondary current (EF007471) | 1 A |
| Rated secondary apparent power (EF007470) | 2.5 VA |
| Accuracy class (EF008842) | 3 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Height opening (EF012757) | 23 mm |
| Width opening (EF012758) | 30 mm |
| Opening diameter (EF005153) | 23 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Number of primary inputs (EF006947) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| HF3B-300/1A Y7-135316 741B0037 EN_741B0037.pdf | 105 Kbytes |
|
