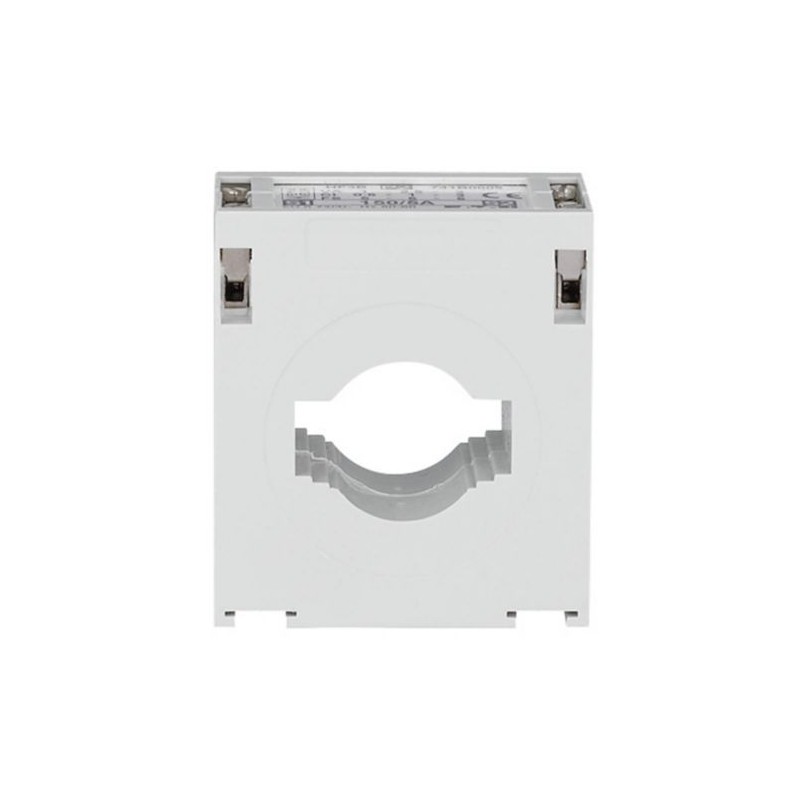

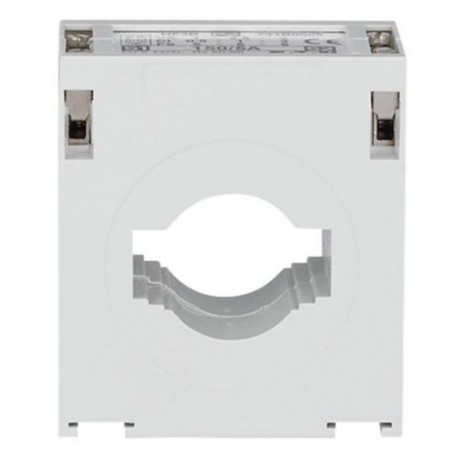

HF3B-150/1A 741B0007 EATON ELECTRIC HF3B-150/1A
HF3B-150/1A
741B0007
Y7-135289
EATON-MOELLER
HF3B-150/1A
Eaton Distribution parts. Current transformer HF3B, 150A/1A
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
741B0007
Model Code
HF3B-150/1A
EAN
5703498700043
Product Length/Depth
54 mm
Product Height
28 mm
Product Width
60 mm
Product Weight
0.15 kg
Compliances
RoHS conform
Product specifications
Opening width - min
30 mm
Opening height - min
23 mm
Nominal current
150 A
Number of inputs (primary)
1
Opening diameter
23 mm
Opening height - max
23 mm
Secondary current input
1 A
Secondary rated apparent power
1 VA
Opening width - max
30 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 5
Secondary connection
Screw connection
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF3B-150/1A 741B0007 EN_741B0007.pdf | 105 Kbytes |
|
