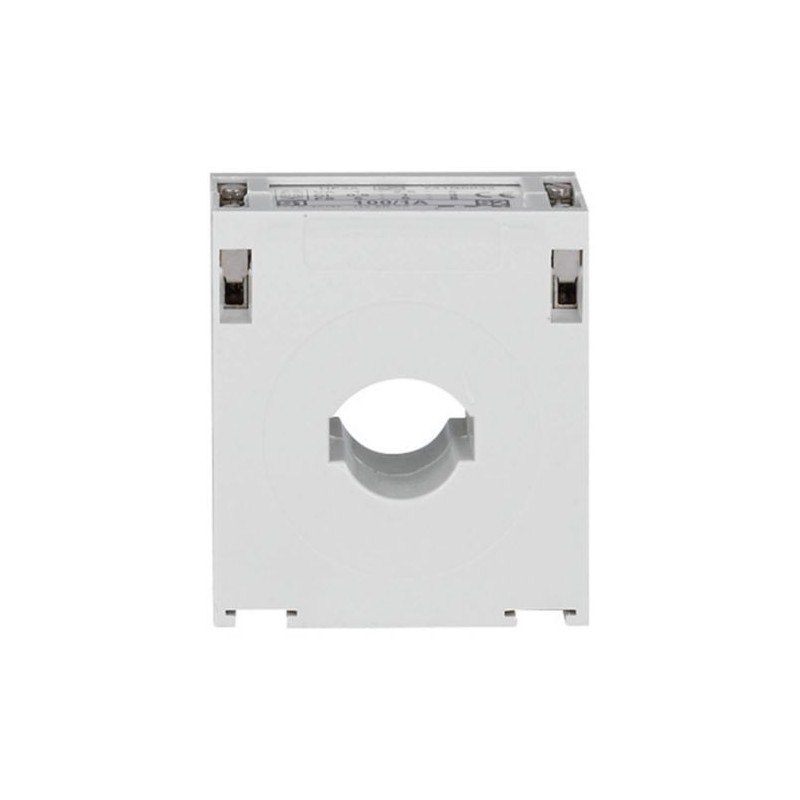

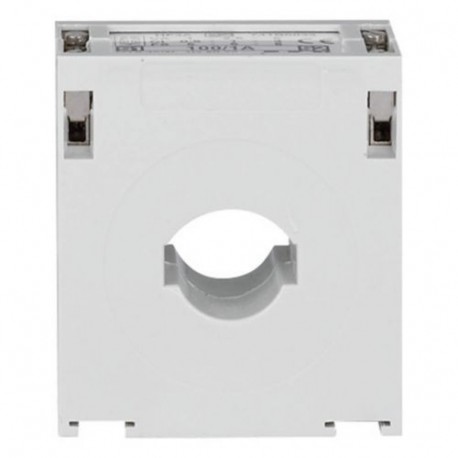

HF3A-75/5A 741B0012 Y7-135292 EATON ELECTRIC HF3A, 75A/5A Current Transformer
HF3A-75/5A
741B0012
Y7-135292
EATON-MOELLER
HF3A, 75A/5A Current Transformer
HF3A-75/5A
Eaton Distribution parts. Current transformer HF3A, 75A/5A
Current transformer HF3A, Class 1, single phase, 75A/5A
Low-voltage industrial components > Current transformer
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Product Name | Eaton Distribution parts |
| Catalog Number | 741B0012 |
| Model Code | HF3A-75/5A |
| EAN | 5703498700074 |
| Product Length/Depth | 54 mm |
| Product Height | 28 mm |
| Product Width | 60 mm |
| Product Weight | 0.255 kg |
| Compliances | RoHS conform |
Product specifications
| Opening width - min | 20 mm |
| Opening height - min | 17 mm |
| Nominal current | 75 A |
| Number of inputs (primary) | 1 |
| Opening diameter | 17 mm |
| Opening height - max | 17 mm |
| Secondary current input | 5 A |
| Secondary rated apparent power | 1.5 VA |
| Opening width - max | 20 mm |
| Accuracy class (ratio) | 3 |
| Model | Through-feed current converter |
| Mounting method | Snap mounting |
| Over current limiting factor | FS 5 |
| Secondary connection | Screw connection |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 75 A |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 1.5 VA |
| Accuracy class (EF008842) | 3 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Height opening (EF012757) | 17 mm |
| Width opening (EF012758) | 20 mm |
| Opening diameter (EF005153) | 17 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Number of primary inputs (EF006947) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| HF3A-75/5A Y7-135292 741B0012 EN_741B0012.pdf | 105 Kbytes |
|
