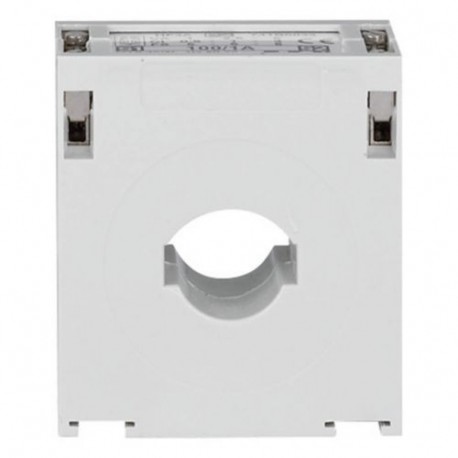

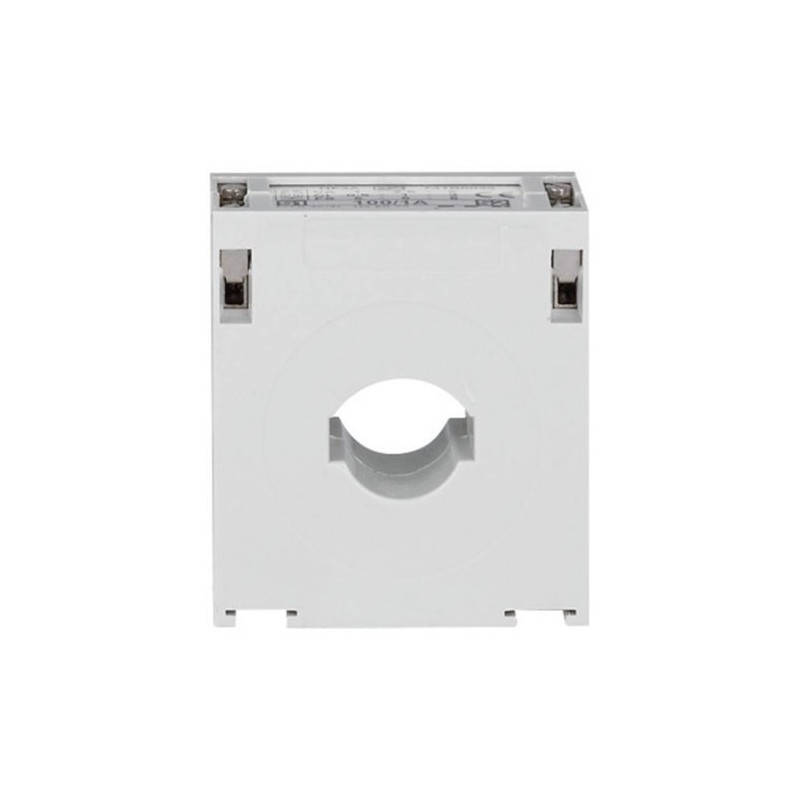

HF3A-50/5A 741B0011 EATON ELECTRIC Current transformer HF3A, 50A/5A
HF3A-50/5A
741B0011
EATON-MOELLER
HF3A-50/5A
Current transformer HF3A, 50A/5A
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Current transformer HF3A, 50A/5A
Current transformer HF3A, Class 1, single phase, 50A/5A
General specifications
Product name
Eaton Distribution parts
Part no.
HF3A-50/5A
EAN
5703498700067
Product Length/Depth
54 millimetre
Product height
28 millimetre
Product width
60 millimetre
Product weight
0.25 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Accuracy class (ratio)
3
Model
Through-feed current converter
Nominal current
50 A
Number of inputs (primary)
1
Opening diameter
17 mm
Opening height - max
17 mm
Opening height - min
17 mm
Opening width - max
20 mm
Opening width - min
20 mm
Over current limiting factor
FS 5
Secondary connection
Screw connection
Secondary current input
5 A
Secondary rated apparent power
1 V·A
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Current transformer (EC002048)
Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer (ecl@ss13-27-21-09-02 [AAB626019])
Model
Through-feed current converter
Rated primary current
50 A
Rated secondary current
5 A
Rated secondary apparent power
1 VA
Power consumption
W
Accuracy class
3
Overcurrent limiting factor
FS 5
Calibrated
No
With shock protection
No
Height opening
17 - 17 mm
Width opening
20 - 20 mm
Opening diameter
17 mm
Snap mounting
Yes
With copper rail
No
Secondary connection
Screw connection
Number of primary inputs
1
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF3A-50/5A 741B0011 EN_741B0011.pdf | 105 Kbytes |
|
