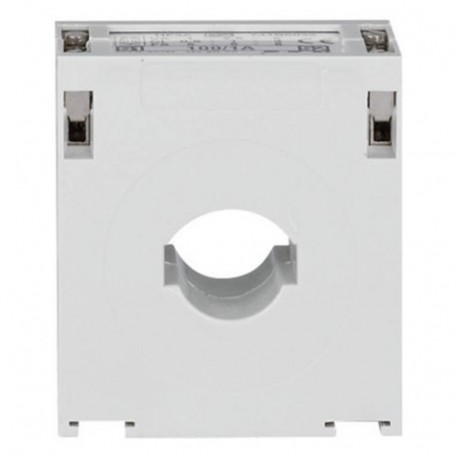

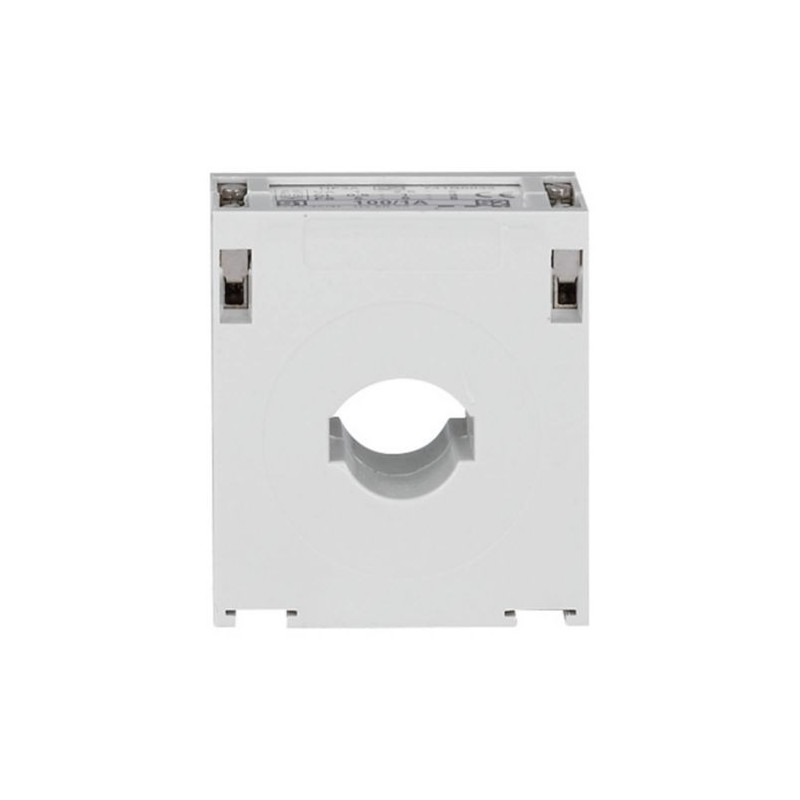

HF3A-100/5A 741B0014 EATON ELECTRIC HF3A-100/5A
HF3A-100/5A
741B0014
Y7-135294
EATON-MOELLER
HF3A-100/5A
Eaton Distribution parts. Current transformer HF3A, 100A/5A
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
741B0014
Model Code
HF3A-100/5A
EAN
5703498700098
Product Length/Depth
54 mm
Product Height
28 mm
Product Width
60 mm
Product Weight
0.255 kg
Compliances
RoHS conform
Product specifications
Opening width - min
20 mm
Opening height - min
17 mm
Nominal current
100 A
Number of inputs (primary)
1
Opening diameter
17 mm
Opening height - max
17 mm
Secondary current input
5 A
Secondary rated apparent power
1.5 VA
Opening width - max
20 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 5
Secondary connection
Screw connection
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF3A-100/5A 741B0014 EN_741B0014.pdf | 105 Kbytes |
|
