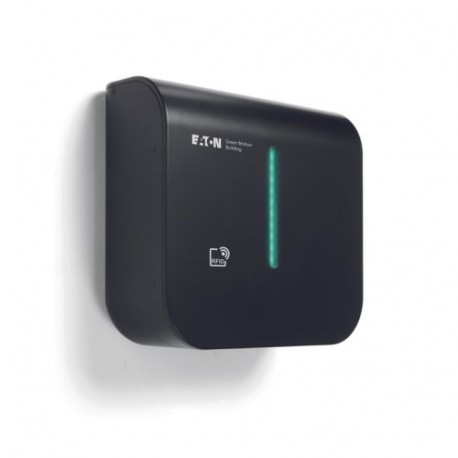

GMB 3.7-22kW T2 Socket MID GMB2201BAAA00A00 EATON ELECTRIC GMB 3.7-22kW T2 Charger with MID Socket
GMB 3.7-22kW T2 Socket MID
GMB2201BAAA00A00
EATON-MOELLER
GMB 3.7-22kW T2 Charger with MID Socket
Eaton Green Motion Building, EV charging station, Online, Adjustable output power 3,7 kW to 22 kW (single-phase or 3-phase), Type 2 connector, RFID, MID energy meter
Industrial socket/plug applications > Charging device E-Mobility
Home > EATON - MOELLER
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
CE Marked
Product specifications
House connection box
Energy meter
Communication interface
IK08
- Green Motion Building EV charger
- Quickstart guide
- Safety guidelines
- Drilling template
- Adhesive gaskets
- Ethernet extender
Single phase
Wall mounting
| Feature Name | Feature Value |
|---|---|
| Installation side connection model (EF025053) | 3-phase |
| Nominal connection power (EF002136) | 22 kW |
| Number of charging units (EF009078) | 1 |
| Max. power per charging point (EF009300) | 22 kW |
| Width (EF000008) | 263 mm |
| Height (EF000040) | 291 mm |
| Depth (EF000049) | 116 mm |
| Mounting method (EF000003) | Floor fastening |
| Number of vehicle connectors Type 1 (EF009301) | 0 |
| Number of vehicle connectors Type 1 CCS (EF009302) | 0 |
| Number of vehicle connectors Type 2 (EF009303) | 0 |
| Number of vehicle connectors Type 2 CCS (EF009304) | 0 |
| Number of socket outlets Type 2 (EF009305) | 1 |
| Number of vehicle connectors GB AC (EF009306) | 0 |
| Number of vehicle connectors GB DC (EF009307) | 0 |
| Number of socket outlets GB (EF009308) | 0 |
| Number of socket outlets Type 3 (EF009309) | 0 |
| Number of vehicle connectors CHAdeMO (EF009310) | 0 |
| Number of CEE socket outlets (IEC 60309) (EF006577) | 0 |
| With house connection box (EF009089) | Yes |
| Number of household socket outlets (EF009311) | 0 |
| Number of earth leakage circuit breakers type A (EF009091) | 0 |
| Length of charging cable (EF014895) | 0 m |
| Charging cable permanently lockable at charging device (EF017663) | No |
| Number of earth leakage circuit breakers type B (EF009092) | 0 |
| DC residual current detection (EF017509) | No |
| Contactor welding detection (EF017510) | No |
| With miniature circuit breaker (MCB) (EF009314) | No |
| Network-enabled as a master (EF017508) | No |
| Network-enabled as an extender (EF017517) | No |
| Networkable via LAN (EF017664) | No |
| With energy meter (EF009313) | Yes |
| With key switch (EF017511) | No |
| With built-in RFID card reader (EF012191) | No |
| NFC (Near Field Communication) (EF012361) | No |
| Static load management integrated (EF017668) | No |
| Suitable for dynamic load management (EF017669) | No |
| Plug and charge (ISO 15118) (EF017515) | No |
| With display (EF000458) | No |
| Housing material (EF001596) | Plastic |
| Degree of protection (IP) (EF005474) | IP54 |
| Impact strength (EF004293) | IK08 |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Google Assistant (EF014926) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| IFTTT support available (EF011072) | No |
| Operation and configuration by app (EF017972) | No |
| Export of charging logs (EF017512) | No |
| Backend included (EF017672) | No |
| With MID compliant energy meter (EF017665) | No |
| Calibration law compliant (EFDE0066) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
