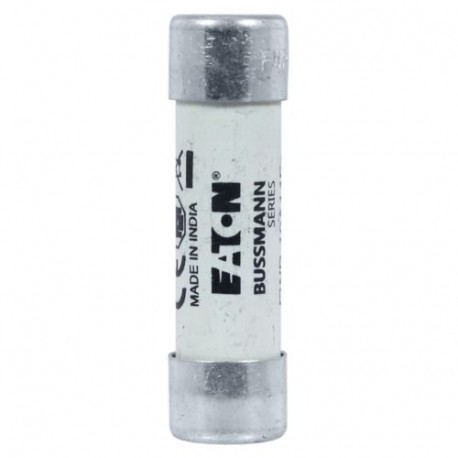

FWP-4A14F EATON ELECTRIC Fuse-link, high speed, 4 A, AC 700 V, 14 x 51 mm, aR, UL
FWP-4A14F
EATON-MOELLER
10
700V 4AMP S/COND FERRULE 14 X 50 MM
Eaton Bussmann series FWP high speed fuse, 700V (UL), 4A, 200 kAIC, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Fuse, Fuse-link, high speed, 4 A, AC 700 V, 14 x 51 mm, aR, UL, cylindrical, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL248, Breaking Capacity 200 kA, Optional accessories fuse-holder CH141B
Circuit breakers and fuses > Cylindrical fuse
Bussmann Series High speed fuses
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
RoHS Compliant
UL Recognized
Electrical data
Product specification
Compatible microswitch
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Ceramic fuse |
| Size (EF000088) | 14x51 mm |
| Voltage type (EF000187) | AC/DC |
| Rated current (EF000227) | 4 A |
| Utilization category according to IEC 60269 (EF002572) | aR (accompanied semiconductor protection) |
| Type of fuse status indicator (EF004473) | Other |
| Release characteristic (EF000889) | Other |
| Power loss at rated current (EF012389) | 3 W |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON CIRCUIT PROTECTION BUSSMANN EN .pdf | 23 Mbytes |
|
| PDF EATON CIRCUIT PROTECTION NH FUSE EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| FWP-4A14F FWP-4A14F FWP-4A14F EN_FWP-4A14F.pdf | 119 Kbytes |
|
