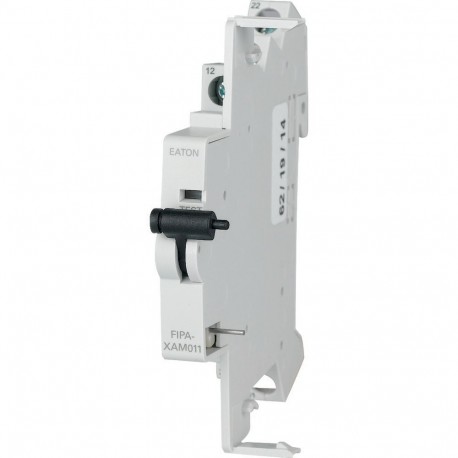

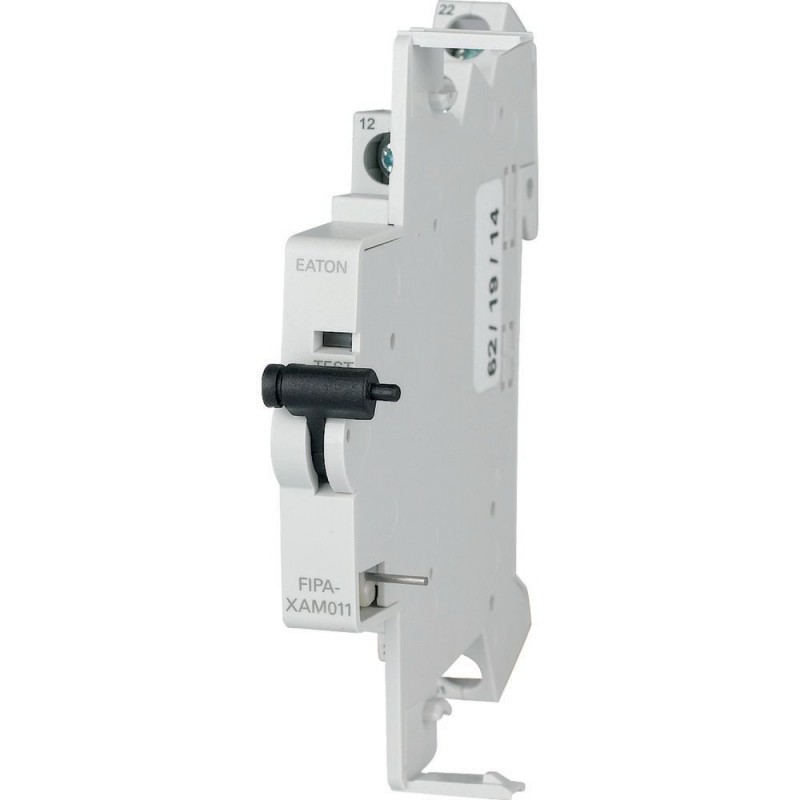

FIPA-XAM011 262578 Y7-262578 EATON ELECTRIC Auxiliary contact, for FI…, 1W+1N/C, 0.5HP View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FIPA-XAM011 262578 Y7-262578 EATON ELECTRIC Auxiliary contact, for FI…, 1W+1N/C, 0.5HP

FIPA-XAM011

262578

Y7-262578

EATON-MOELLER

Auxiliary contact, for FI…, 1W+1N/C, 0.5HP

FIPA-XAM011

FI…, for 1W+1N/C, 0.5auxiliary contacts, for FI…, 1W+1N/C, 0.5 SU auxiliary contact, 1W+1N/CSU

More details


Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices

Modular Switchgear – Others and Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $57.96
Unit price: $57.96
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Auxiliary contact, for FI…, 1W+1N/C, 0.5HP
FI…, for 1W+1N/C, 0.5auxiliary contacts, for FI…, 1W+1N/C, 0.5 SU auxiliary contact, 1W+1N/CSU

General specifications
Product name
Eaton Distribution parts
Part no.
FIPA-XAM011
EAN
4015082625788
Product Length/Depth
62 millimetre
Product height
75 millimetre
Product width
9 millimetre
Product weight
0.06 kilogram
Compliances
RoHS conform
Certifications
EN45545-2
IEC 61373
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Accessory/spare part type
Auxiliary contacts
Additional equipment required
Other
Admissible back-up fuse - max
6 A gL
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Assembly width
0.5
Contact function
1 C/O + 1 B
Degree of protection
IP40
Device fitting
Universal
Enclosure width
90 mm
Frame
Standard front dimension: 45 mm
Frequency rating
50 Hz / 60 Hz
Functions
Auxiliary switch
Mounting width
8.8 mm (0.5 space units)
Number of contacts (change-over contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
0
Number of poles at main contact unit - max
2
Number of switches (fault signal)
0
Rated insulation voltage (Ui)
440 V AC
Rated operational current
1 A (230 V DC-11)
6 A (230 V AC-11)
Rated operational voltage (Ue) - max
230 V
Rated switch current
3 A
Special features
IP20 (switch)
Suitable for current of main contact unit - max
0 A
Terminal capacity (cable)
2.5 mm²
Terminal capacity (solid wire)
2.5 mm²
Terminal protection
Protection against electric shock to IEC 536
Terminal type
Twin-purpose terminals
Type
Accessory
Accessory for residual current circuit breaker
Used with
Accessory
Accessory for residual current circuit breaker
Voltage type
AC

Technical data ETIM 9.0

Devices for distribution board-/surface mounting (EG000062) / Auxiliary device for distribution board devices (EC001286)
Electric engineering, automation, process control engineering / Electrical installation, device / Breaker switch component / Auxiliary contact unit for distribution board (ecl@ss13-27-14-35-02 [AKE327018])
Device fitting
Universal
Function
Auxiliary switch
Width in number of modular spacings
0.5
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
1
Number of fault-signal switches
0
Rated switch current
3 A
Rated voltage
230 V
Voltage type
AC
With auto test for earth leakage function
No
Suitable for max. number of poles main contact unit (total)
2
Suitable for max. current main contact unit
0 A

ETIM for 262578 Modular devices for distribution board/surface mounting (EC001286)
Feature Name Feature Value
Device fitting (EF007826) Universal
Function (EF000030) Auxiliary switch
Width in number of modular spacings (EF002950) 0.5
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 1
Number of fault-signal switches (EF007613) 0
Rated switch current (EF006706) 3 A
Rated voltage (EF000228) 230 V
Voltage type (EF000187) AC
With auto test for earth leakage function (EF008727) No
Suitable for max. number of poles main contact unit (total) (EF008729) 2
Suitable for max. current main contact unit (EF008730) 0 A

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
FIPA-XAM011 Y7-262578 262578 EN_262578.pdf 109 Kbytes FIPA-XAM011 Y7-262578 262578 EN_262578.pdf
