FCFSDNH00BB100 149430 Y7-149430 EATON ELECTRIC FCFSDNH00BB100
FCFSDNH00BB100
149430
Y7-149430
EATON-MOELLER
FCFSDNH00BB100

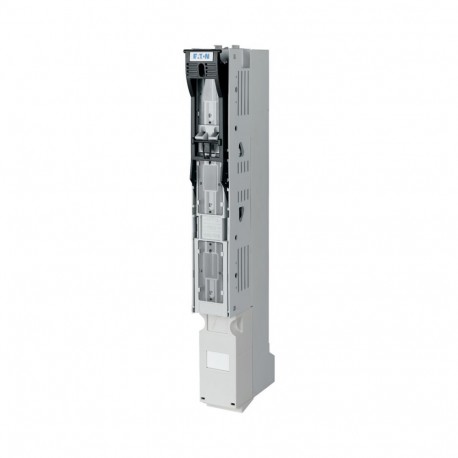

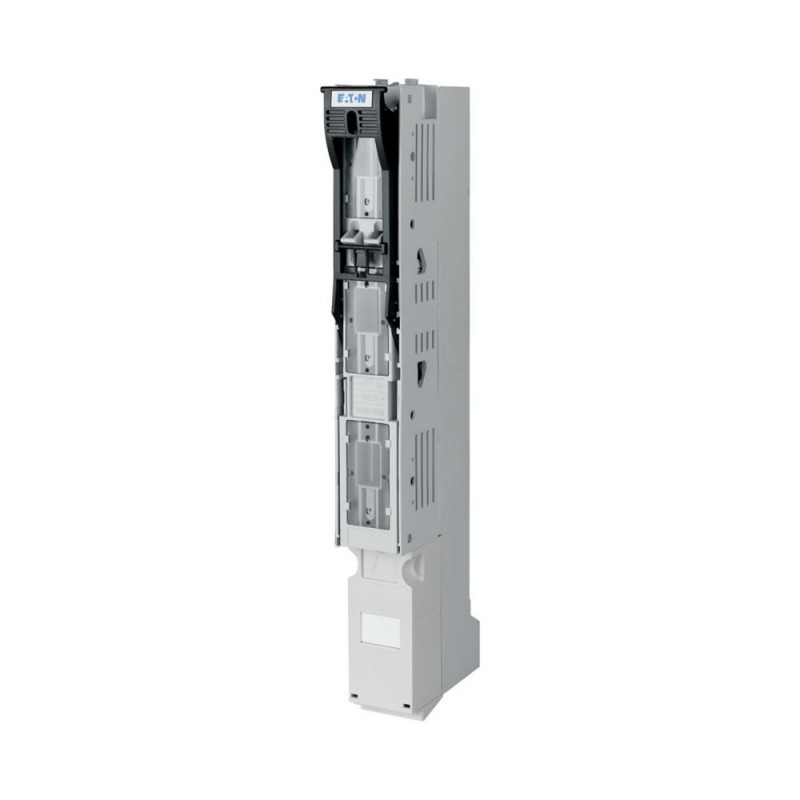

Low-voltage h.b.c fuse switch strip, 160A, size 00
Interval between phase centers 100mm size 00
Low-voltage industrial components > Fuse switch disconnector
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Technical data ETIM 7.0
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated operation power at AC-23, 400 V (EF007027) | 0 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for fuses (EF006692) | NH00 |
| Number of poles (EF001391) | 3 |
| With error protection (EF007384) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Cover grip |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| FCFSDNH00BB100 Y7-149430 149430 EN_149430.pdf | 134 Kbytes |
|
