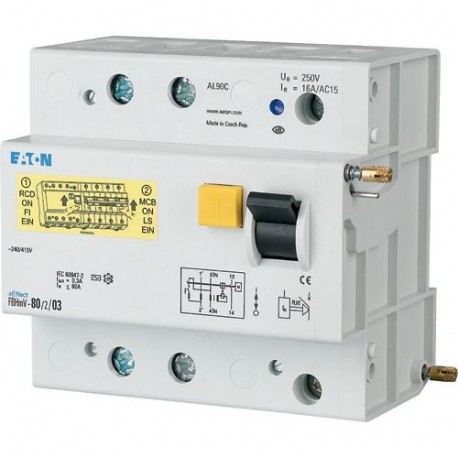

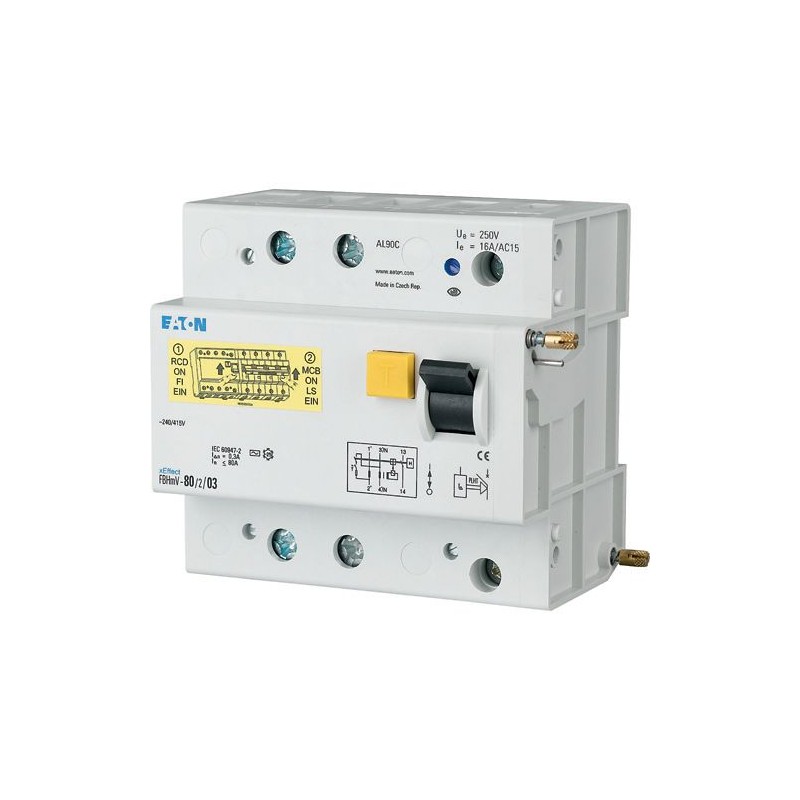

FBHMV-80/2/1 170247 Y7-170247 EATON ELECTRIC Residual-current circuit breaker trip block for AZ, 80A, 2p, 10.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FBHMV-80/2/1 170247 Y7-170247 EATON ELECTRIC Residual-current circuit breaker trip block for AZ, 80A, 2p, 10..

FBHMV-80/2/1

170247

Y7-170247

EATON-MOELLER

Residual-current circuit breaker trip block for AZ, 80A, 2p, 1000mA, type AC

FBHMV-80/2/1

Eaton Distribution parts. Residual-current circuit breaker trip block for AZ, 80A, 2p, 1000mA, type AC

Attachable residual current circuit-breaker unit FBHmV, 2 pole, Add-on residual current protection unit, Rated current In: 80 A, Rated fault current IΔN: 1 A, Type AC, AC current sensitive, Partly surge-proof 250 A, Switchgear for industrial and advanced commercial applications

More details


Circuit breakers and fuses > Residual current circuit breaker (RCCB) module

Modular Switchgear – Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $398.25
Unit price: $398.25
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series xEffect - FBHmV RCCB add-on unit
Catalog Number
170247
Model Code
FBHMV-80/2/1
EAN
4015081667505
Product Length/Depth
94.5 mm
Product Height
80 mm
Product Width
90 mm
Product Weight
0.406 kg
Compliances
RoHS conform
Certifications
EN45545-2
IEC 61373
IEC/EN 60947-2

Product specifications

Used with
Add-on residual current protection unit
Type AC
FBHmV
Type
Ambient temperature hint: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C
Special features
Application
  • Switchgear for industrial and advanced commercial applications
  • xEffect - Switchgear for industrial and advanced commercial applications
Amperage Rating
80 A
Features
Add-on residual current protection unit
Additional equipment possible
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Interlocking device
Frame
45 mm
Frequency rating
50 Hz
Pollution degree
2
Mounting Method
DIN rail
Screwed onto AZ 2-, 3-, 4-pole; Z-BHASA
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Equipment heat dissipation, current-dependent
4.7 W
Rated impulse withstand voltage (Uimp)
4 kV
Rated short-time withstand current (Icw)
0 kA
10 kA
Built-in width (number of units)
95 mm (5.5 SU)
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Terminals (top and bottom)
Lift terminals
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Built-in depth
70 mm
Connectable conductor cross section (multi-wired) - max
50 mm²
Connectable conductor cross section (multi-wired) - min
2.5 mm²
Connectable conductor cross section (solid-core) - max
50 mm²
Connectable conductor cross section (solid-core) - min
2.5 mm²
Fault current rating
1000 mA
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Permitted storage and transport temperature - max
60 °C
Permitted storage and transport temperature - min
-35 °C
Lifespan, mechanical
10000 operations
Degree of protection
IP20
IP20, IP40 with suitable enclosure
Impulse withstand current
Partly surge-proof 250 A
Number of poles
Two-pole
Leakage current type
AC
Lifespan, electrical
1500 operations
Sensitivity type
AC current sensitive
Rated fault current - max
1 A
Rated fault current - min
1 A
Rated insulation voltage (Ui)
440 V
Rated operational current for specified heat dissipation (In)
80 A
Rated operational voltage (Ue) - max
240 V
Static heat dissipation, non-current-dependent
0 W
Surge current capacity
0.25 kA
Voltage rating - max
415 V
Voltage rating - min
240 V
Width in number of modular spacings
5.5
Tripping time
Non-delayed
Rated short-circuit strength
Same as connected AZ

ETIM for 170247 Circuit breakers and fuses (EC002297)
Feature Name Feature Value
Nominal voltage (EF005127) 240 V
Nominal current (EF000001) 80 A
Rated fault current adjustable (EF008874) No
Rated fault current (EF003975) 1 A
Max. delay time (EF001421) 0 ms
Delay adjustable (EF001420) No
Number of poles (EF001391) 2
Leakage current type (EF002560) AC
Surge current capacity (EF002564) 0.25 kA
Frequency (EF005455) 50 Hz
Rated insulation voltage Ui (EF001366) 440 V
Rated impulse withstand voltage Uimp (EF011980) 4 kV
Connectable conductor cross section solid-core (EF007337) 2.5 mm²
Connectable conductor cross section multi-wired (EF007343) 2.5 mm²
Anti-nuisance tripping version (EF009497) No
With interlocking device (EF007385) Yes
Degree of protection (IP) (EF005474) IP20
Pollution degree (EF002570) 2
Ambient temperature during operating (EF007515) -25 °C
