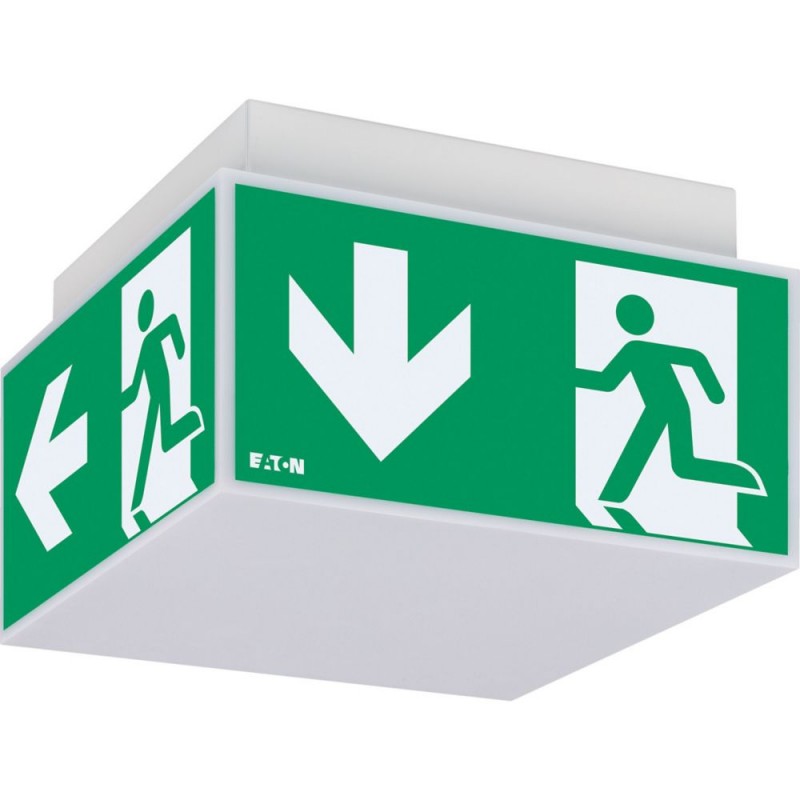

EXIT CUBE 33022 CG-S (LUMINAIRE) 40071353421 EATON ELECTRIC EXIT CUBE 33022 CG-S (LUMINAIRE)
EXIT CUBE 33022 CG-S (LUMINAIRE)
40071353421
EATON-MOELLER
EXIT CUBE 33022 CG-S (LUMINAIRE)
Exit Cube 33022 CG-S (Luminaire)
Luminaires > Emergency luminaire
Central Battery System
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Ceiling surface mounting |
| Suitable for labelling type (EF001277) | Other |
| Type of indicator (EF001278) | Four-sided |
| With pictogram (EF011099) | Yes |
| Monitoring equipment (EF008091) | Safety module for monitoring (central feeded system) |
| With remote switch connection (EF007947) | No |
| Power supply system (EF000233) | Central (central battery) |
| Lamp type (EF002423) | LED non-replaceable |
| With light source (EF005905) | Yes |
| Lamp holder (EF000048) | None |
| Housing material (EF001596) | Stainless steel |
| Material cover (EF004284) | Plastic opal |
| Voltage type (EF000187) | DC |
| Nominal voltage (EF005127) | 220 V |
| Type of control gear (EF000381) | LED driver constant current |
| Light distributor (EF012170) | Diffuser |
| Degree of protection (IP) (EF005474) | IP40 |
| Impact strength (EF004293) | IK07 |
| Protection class according to IEC 61140 (EF000004) | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
| Rated ambient temperature according to IEC 62722-2-1 (EF012090) | -20 °C |
| Max. system power (EF009347) | 5.9 W |
| Power factor (EF025740) | 0.6 |
| Recognition distance (EF008732) | 20 m |
| Width (EF000008) | 220 mm |
| Height/depth (EF001456) | 150 mm |
| Length (EF001438) | 220 mm |
| Type of wiring (EF011868) | Suitable for through wiring |
| Conductor cross section (EF000085) | 2.5 mm² |
| Connection type (EF000124) | Plug-in connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
