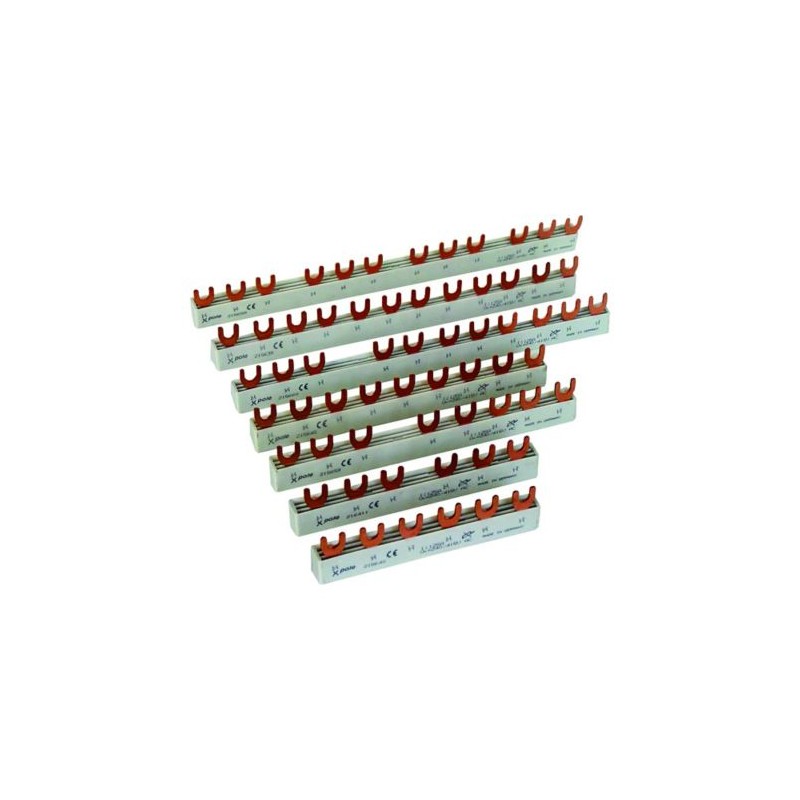

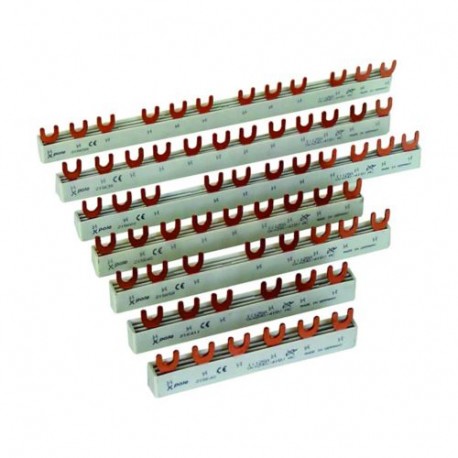

EVG-4PHAS/8MODUL 215644 Y7-215644 EATON ELECTRIC Comb connection 4F, 8M, 63A for PLS. CLS. PKN., PFIM, PFHM,..
EVG-4PHAS/8MODUL
215644
Y7-215644
EATON-MOELLER
10
Comb connection 4F, 8M, 63A for PLS. CLS. PKN., PFIM, PFHM, NWFP
EVG-4PHAS/8MODUL
Eaton Moeller series xPole - Busbar. EV busbars 4Ph., 8HP, 63A for PLS. CLS. PKN., PFIM, PFHM, PFNM
Busbars: flashovers are minimized Use of end caps not required Saves 30% of the assembly time
Low-voltage industrial components > Phase busbar
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Busbar for miniature circuit breaker
Busbar for residual current circuit breakers
Busbar
Devices with N-busbar
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 4 |
| Number of poles (EF001391) | 4 |
| Suitable for number of devices (EF007241) | 2 |
| Module width (EF007504) | 0 mm |
| Cross section (EF000649) | 10 mm² |
| Length (EF001438) | 140 mm |
| Can be cut to size (EF015250) | No |
| Width in number of modular spacings (EF002950) | 8 |
| Rated permanent current Iu (EF001389) | 63 A |
| Type of electric connection (EF003961) | Fork |
| Insulated (EF000019) | Yes |
| Rated surge voltage (EF002993) | 4 kV |
| Conditioned rated short-circuit current Iq (EF001444) | 25 kA |
| Max. rated operation voltage Ue (EF007357) | 500 V |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for devices with N-conductor (EF007218) | Yes |
| Suitable for devices with auxiliary switch (EF007217) | No |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EVG-4PHAS/8MODUL Y7-215644 215644 EN_215644.pdf | 108 Kbytes |
|
