> EATON - MOELLER>Modular Switchgear – Others and Accessories >EVG-2PHAS/4MODUL 268220 0001657151 ELECTRIC Comb connection 2F, 4M, 63A for PLS. CLS. PKN., PFIM, PFHM..
Previous Product Next Product

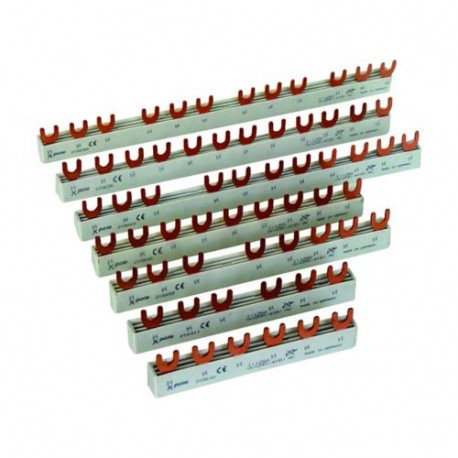

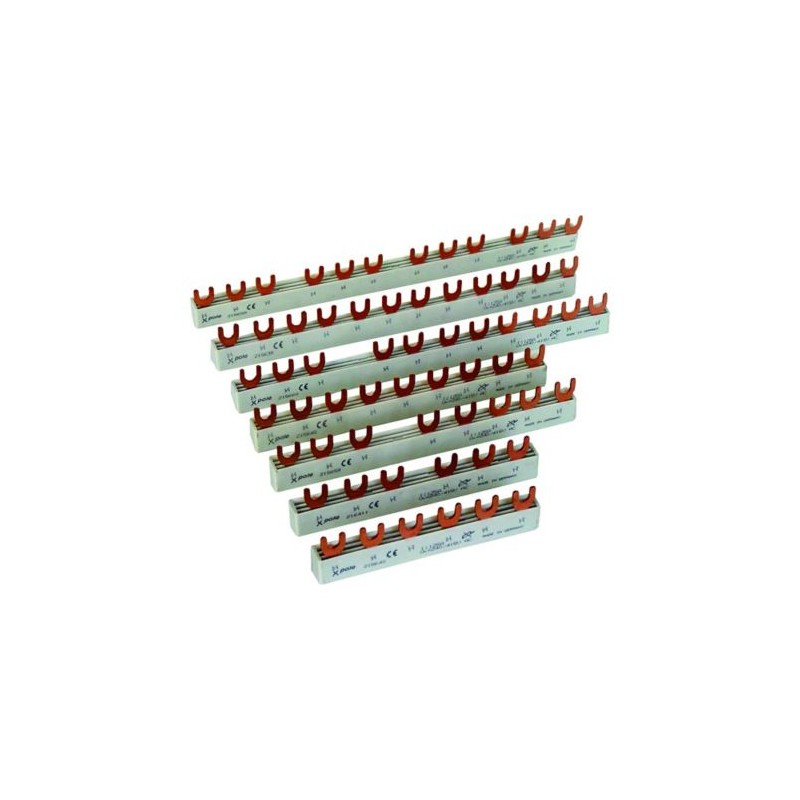

EVG-2PHAS/4MODUL 268220 0001657151 EATON ELECTRIC Comb connection 2F, 4M, 63A for PLS. CLS. PKN., PFIM, PFHM.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EVG-2PHAS/4MODUL 268220 0001657151 EATON ELECTRIC Comb connection 2F, 4M, 63A for PLS. CLS. PKN., PFIM, PFHM..

EVG-2PHAS/4MODUL

268220

0001657151

EATON-MOELLER

20

Comb connection 2F, 4M, 63A for PLS. CLS. PKN., PFIM, PFHM, NWFP

EVG-2PHAS/4MODUL

Eaton Moeller series xPole - Busbar. EV busbars 2Ph., 4HP, 63A for PLS. CLS. PKN., PFIM, PFHM, PFNM

More details


Low-voltage industrial components > Phase busbar

Modular Switchgear – Others and Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $63.57
Unit price: $3.18

Quantity Price
20+$3.18
40+$2.99
60+$2.73
80+$2.58
120+$2.44
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series busbar
Catalog Number
268220
Model Code
EVG-2PHAS/4MODUL
EAN
4015082682200
Product Length/Depth
27 mm
Product Height
8 mm
Product Width
65 mm
Product Weight
0.02 kg
Compliances
RoHS conform

Product specifications

Type
Features
Insulated
Accessory/spare part type
Busbar for combined residual current/power circuit breaker
Busbar for miniature circuit breaker
Busbar for residual current circuit breakers
Electric connection type
Fork
Used with
Busbar
EVG
Rated surge voltage
4 KV
Rated uninterrupted current (Iu)
63 A
Suitable for number of devices
2
Number of poles
Two-pole
Color
Other
Rated short-time withstand current (Icw)
0 kA
Cross section
10 mm²
Number of modular spacings
4
Number of phases
2
Pitch dimensions
0 mm
Rated operational voltage (Ue) - max
500 V
Rated conditional short-circuit current (Iq)
25 kA
Functions
Busbar
Suitable for
2 devices

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
EVG-2PHAS/4MODUL 0001657151 268220 EN_268220.pdf 108 Kbytes EVG-2PHAS/4MODUL 0001657151 268220 EN_268220.pdf
