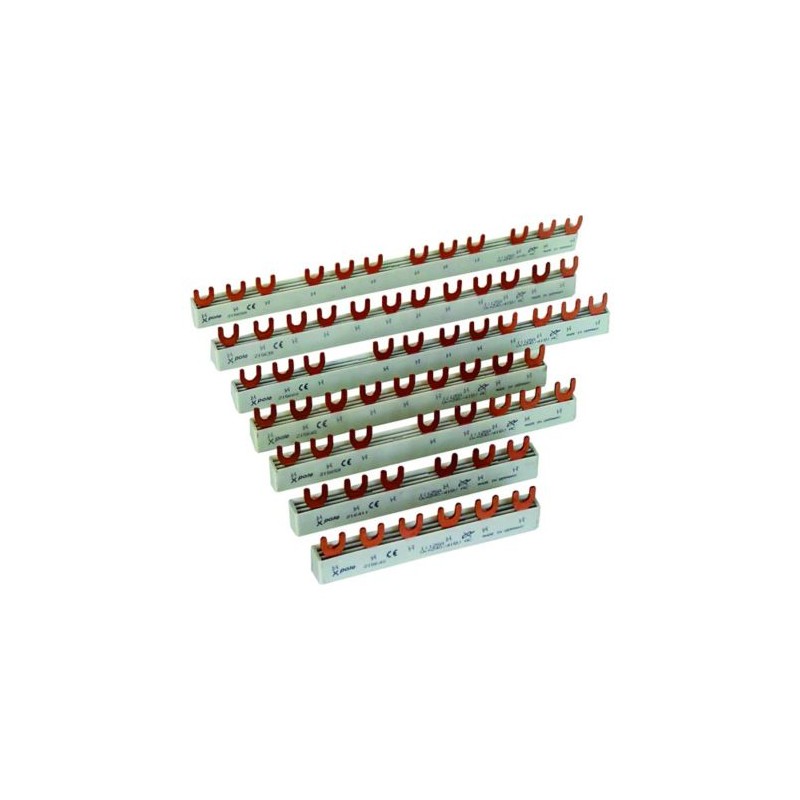

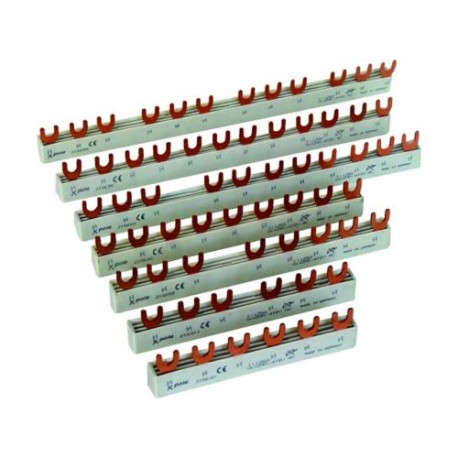

EVG-1PHAS/2-5MODUL/FILS 285384 EATON ELECTRIC EV busbars 1Ph., 2.5HP, for 2 pole RCD/MCB combination switch .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EVG-1PHAS/2-5MODUL/FILS 285384 EATON ELECTRIC EV busbars 1Ph., 2.5HP, for 2 pole RCD/MCB combination switch ..

EVG-1PHAS/2-5MODUL/FILS

285384

EATON-MOELLER

EV busbars 1Ph., 2.5HP, for 2 pole RCD/MCB combination switch with 3HP width

EVG-1PHAS/2-5MODUL/FILS

Eaton Moeller series xPole - Busbar. EV busbars 1Ph., 2.5HP, for 2 pole RCD/MCB combination switch with 3HP width

More details


Low-voltage industrial components > Phase busbar

Modular Switchgear – Others and Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $7.14
Unit price: $7.14

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series busbar
Catalog Number
285384
Model Code
EVG-1PHAS/2-5MODUL/FILS
EAN
4015082853846
Product Length/Depth
27 mm
Product Height
3.5 mm
Product Width
82 mm
Product Weight
0.013 kg
Compliances
RoHS conform

Product specifications

Type
Features
Insulated
Accessory/spare part type
Busbar for miniature circuit breaker
Busbar for residual current circuit breakers
Busbar for combined residual current/power circuit breaker
Electric connection type
Fork
Used with
EVG
Busbar
Rated surge voltage
4 KV
Rated uninterrupted current (Iu)
63 A
Suitable for number of devices
0
Number of poles
Single-pole
Color
Other
Rated short-time withstand current (Icw)
0 kA
Cross section
10 mm²
Number of modular spacings
5
Number of phases
1
Pitch dimensions
0 mm
Rated operational voltage (Ue) - max
415 V
Rated conditional short-circuit current (Iq)
25 kA
Functions
Busbar
Suitable for
2 devices

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
EVG-1PHAS/2-5MODUL/FILS 285384 EN_285384.pdf 222 Kbytes EVG-1PHAS/2-5MODUL/FILS 285384 EN_285384.pdf
