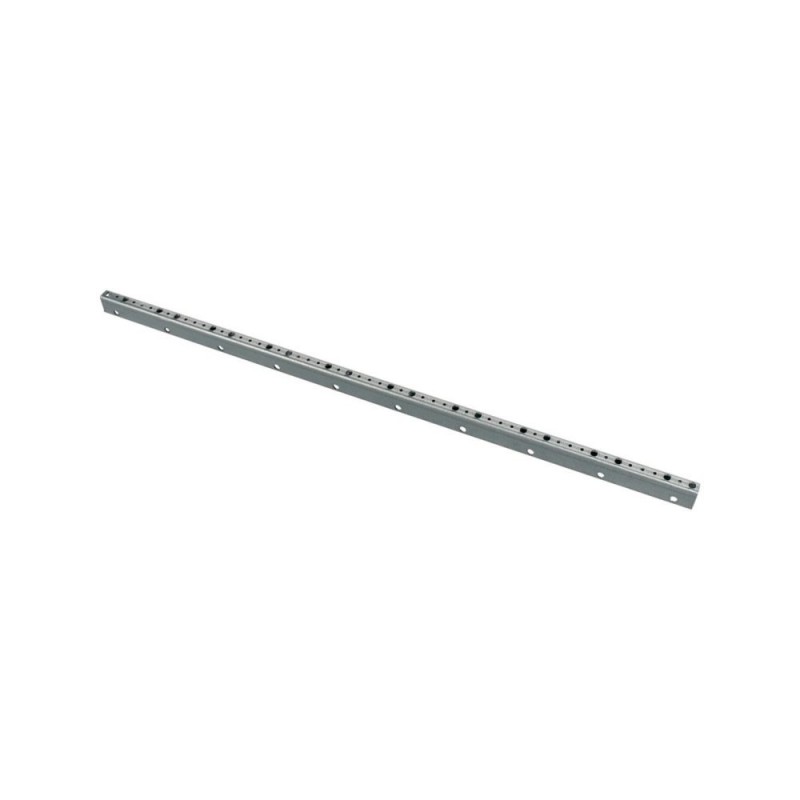

EPTV1050 143844 Y7-143844 EATON ELECTRIC 1015 Vertical Support Rail, Square Hole 9.5 x 9.5 mm
EPTV1050
143844
Y7-143844
EATON-MOELLER
1015 Vertical Support Rail, Square Hole 9.5 x 9.5 mm
EPTV1050. Mounting rail vertical
The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies
Fasteners > Mounting rail/-profile
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Delivery program
Technical data - mechanical
Additional information
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 25 mm |
| Width (EF000008) | 16 mm |
| Height (EF000040) | 1015 mm |
| Slit width (EF005247) | 9.5 mm |
| Material thickness (EF000386) | 2 mm |
| Profile shape (EF005179) | U-profile |
| Model (EF000010) | Single channel |
| Type of perforation (EF004147) | 3 sides perforated |
| Hole width (EF005742) | 3.6 mm |
| With toothing (EF000571) | No |
| Snap-off (EF007562) | No |
| Load bearing capacity (EF002918) | 0 kN |
| Area moment of inertia Iy (EF012513) | 0 cm4 |
| Area of inertia Iz (EF012514) | 0 cm4 |
| Moment of resistance Wy (EF012503) | 0 cm³ |
| Moment of resistance Wz (EF012504) | 0 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
| Weight (EF000167) | 0.827 kg |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EPTV1050 Y7-143844 143844 EN_143844.pdf | 108 Kbytes |
|
