View larger

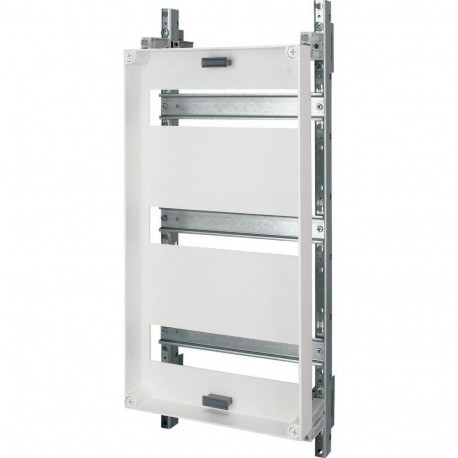

EP24RG 143900 EATON ELECTRIC Distribution machine installation unit, EP, WxH 600x250mm
EP24RG
143900
EATON-MOELLER
Distribution machine installation unit, EP, WxH=600x250mm
MCB mounting unit
Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲MCB mounting unit
The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies
General specifications
Product name
Eaton xEnergy Basic other accessory
Part no.
EP24RG
EAN
4015081404346
Product Length/Depth
41.5 millimetre
Product height
600 millimetre
Product width
250 millimetre
Product weight
1.009 kilogram
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Other
Technical Data - Mechanical
Number of modular spacings per DIN-rail
12
Number of DIN rails
4
Row distance
150 mm
Additional information
Functions
Extension possible
Additional equipment
Additional equipment
Technical data ETIM 9.0
Energy distribution systems (EG000015) / Distributor assembly for serial built-in device (EC002575)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Energy distribution system / Distributor assembly for serial built-in device (ecl@ss13-27-40-06-20 [ACO403016])
Height
600 mm
Width
250 mm
Depth
41.5 mm
Number of DIN-rails
4
Number of modular spacings per DIN-rail
12
Row distance
150 mm
Extension possible
Yes
With busbar
No
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| EP24RG 143900 EN_143900.pdf | 104 Kbytes |
|
