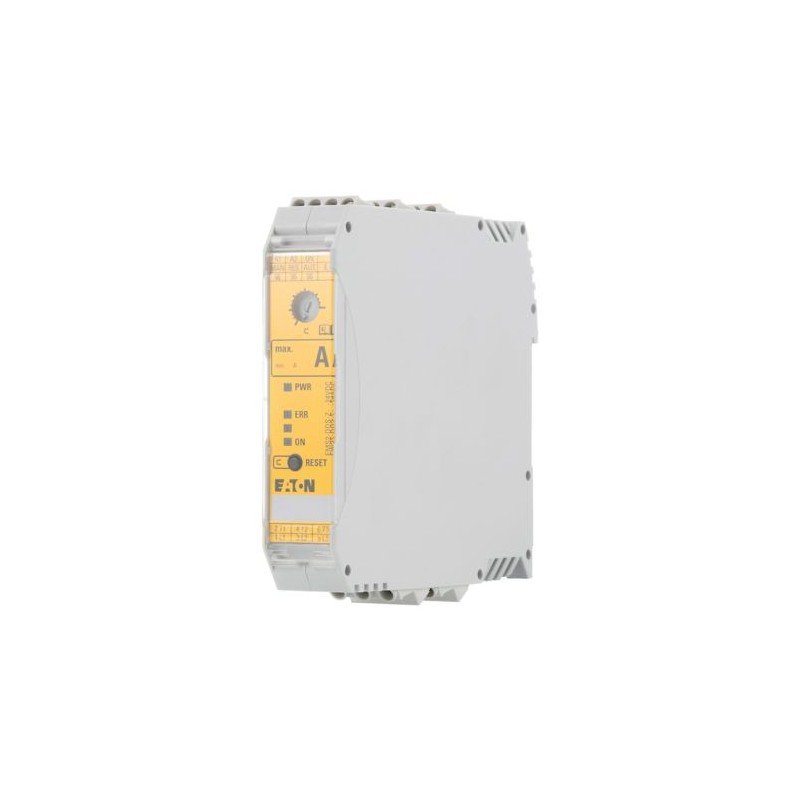

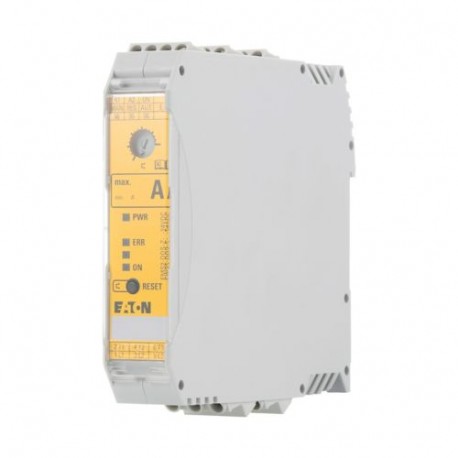

EMS2-DOS-Z-3-24VDC 197162 EATON ELECTRIC Starter electronic direct Start 2.4 A 24 V DC Emergency Stop Connec..
EMS2-DOS-Z-3-24VDC
197162
EATON-MOELLER
Starter electronic; direct Start; 2.4 A; 24 V DC; Emergency Stop; Connection-screw
EMS2-DOS-Z-3-24VDC
DOL starter, 24 V DC, 0,18 - 3 A, Screw terminals, Controlled stop, PTB 19 ATEX 3000
Standard Soft Starters
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲DOL starter, 24 V DC, 0,18 - 3 A, Screw terminals, Controlled stop, PTB 19 ATEX 3000
DOL starter, Product range: Electronic motor starter, Description: DOL starting, Motor protection, Emergency-stop actuator, Circuit design: safety output stage with bypass, three-phase disconnect., Conformity, Approval Explosion protection (according to ATEX 94/9/EC): II (2) G [Ex e] [Ex d] [Ex px], II (2) D [Ex t] [Ex p], Conformity, Approval EC-prototype test certification: PTB 13 ATEX 3003, Motor ratings Max. rating for three-phase motors, 50 - 60 Hz AC-53a 380 V 400 V 415 V: P= 0.06 - 0.75 kW, Setting range of overload releases: Ir= 0,18 - 3 A_x, Actuating voltage: 24 V DC, Connection technique: Screw terminals, Stop Function: Controlled stop, Connection to SmartWire-DT: no, Mounting position: Vertical, Motor feeder at bottom, Standards: IEC/EN 60947-4-2, IEC 61508, ISO 13849, UL508
Delivery program
Product range
Electronic motor starter
Basic function
DOL starters (complete devices)
Description
DOL starting
Motor protection
Emergency-stop actuator
Circuit design: safety output stage with bypass, three-phase disconnect.
Motor protection
Emergency-stop actuator
Circuit design: safety output stage with bypass, three-phase disconnect.
Conformity, Approval
Explosion protection (according to ATEX 94/9/EC)
II (2) G [Ex db] [Ex eb] [Ex pxb]
II (2) D [Ex tb] [Ex pb]
II (2) D [Ex tb] [Ex pb]
EC-prototype test certification
PTB 19 ATEX 3000
Motor ratings
Max. rating for three-phase motors, 50 - 60 HzAC-53a380 V 400 V 415 V [P]
0.06 - 1.1 kW
Setting range of overload releases
[Ir]
[Ir]0,18 - 3 A_x
Actuating voltage
24 V DC
Connection technique
Screw terminals
Stop Function
Controlled stop
Connection to SmartWire-DT
no
Technical data
General
Standards
IEC/EN 60947-4-2
IEC 61508
ISO 13849
UL508
IEC 61508
ISO 13849
UL508
Ambient temperatureStorageMin. ambient temperature, storage
- 40 °C
Ambient temperatureStorageAmbient temperature, storage max.
+ 80 °C
Ambient temperatureOpenOperating ambient temperature min.
-25 °C
Ambient temperatureOpenOperating ambient temperature max.
+70 °C
Weight
0.22 kg
Mounting
Top-hat rail IEC/EN 60715, 35 mm
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Mounting position
Vertical
Motor feeder at bottom
Motor feeder at bottom
Terminal capacityScrew terminalsTerminal capacity main cable
0.2 - 2.5 mm2
Terminal capacityScrew terminalsTerminal capacity main cable
24 - 14 AWG
Terminal capacityScrew terminalsTerminal capacity control circuit cables
0.14 - 2.5 mm2
Terminal capacityScrew terminalsTerminal capacity control circuit cables
26 - 14 AWG
Terminal capacityScrew terminalstightening torque
0.5 - 0.6 N/m
Main conducting paths
Rated operational voltage [Ue]
500 V AC
Operational voltage rangeOperating voltage range min.
42 V
Operational voltage rangeOperating voltage range max.
550 V
Rated operational currentAC-51 [Ie]
3 A
Rated operational currentAC-53a [Ie]
3 A
Rated operational current
AC-53a: Please note possible derating.
Rated operational currentSetting range of overload releases[Ir]
[Ir]0,18 - 3 A_x
Release class
10 CLASS
Heat dissipation [PV]
0.1 - 2.5 W
Control section
Rated control voltage [Us]
24 V DC
Control voltage range
19,2 - 30 V DC V
Residual ripple on the input voltage
≦ 5 %
Rated control current [Is]
40 mA
Actuating circuit (ON, L, R)Rated actuation voltage [Uc]
24 V
Actuating circuit (ON, L, R)Switching level "Low"
-3 - +9.6 V DC V
Actuating circuit (ON, L, R)Switching level "confirm Off"
< 5 V DC V
Actuating circuit (ON, L, R)Switching level "High"
19.2 - 30 V DC V
Actuating circuit (ON, L, R)Rated actuating current [Ic]
10 mA
Relay outputsContactsCO = changeover
1 CO
Rated operational currentAC-15230 V [Ie]
2 A
Rated operational currentDC-1324 V [Ie]
2 A
Electromagnetic compatibility (EMC)
Radio interference suppression
EN 55011
EN 61000-6-3, Class A (emitted interference, radiated)
EN 61000-6-3, Class A (emitted interference, radiated)
Technical safety parameters:
Notes
Safe switch off.
motor protection
motor protection
Ambient temperature
60 °C
Values according to EN ISO 13849-1MTTFd[Years]
70 (Sicheres Abschalten) / 60 (Motorschutz)
Values according to EN ISO 13849-1Performance level [PL]
e (Sicheres Abschalten)
Values according to EN ISO 13849-1Category
3 (Sicheres Abschalten)
Values according to IEC 62061
Abschaltzeit [ms]: 200 (Sicheres Abschalten) / Class 10 (Motorschutz)
λsd [FIT]: 0
λsu [FIT]: 2884 (Sicheres Abschalten) / 2683 (Motorschutz)
λdd [FIT]: 1628 (Sicheres Abschalten) / 1876 (Motorschutz)
λdu [FIT]: 13,8 (Sicheres Abschalten) / 17,7 (Motorschutz)
SFF [%]: 99,7 (Sicheres Abschalten) / 99,6 (Motorschutz)
DC [%]: 99,2 (Sicheres Abschalten) / 99,1 (Motorschutz)
PFHd[FIT]: 13,8 (Sicheres Abschalten)
SIL 3 (Sicheres Abschalten) / SIL 2 (Motorschutz)
λsd [FIT]: 0
λsu [FIT]: 2884 (Sicheres Abschalten) / 2683 (Motorschutz)
λdd [FIT]: 1628 (Sicheres Abschalten) / 1876 (Motorschutz)
λdu [FIT]: 13,8 (Sicheres Abschalten) / 17,7 (Motorschutz)
SFF [%]: 99,7 (Sicheres Abschalten) / 99,6 (Motorschutz)
DC [%]: 99,2 (Sicheres Abschalten) / 99,1 (Motorschutz)
PFHd[FIT]: 13,8 (Sicheres Abschalten)
SIL 3 (Sicheres Abschalten) / SIL 2 (Motorschutz)
Design verification as per IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [In]
3 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
2.5 W
Static heat dissipation, non-current-dependent [Pvs]
2 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Please observe > 55 °C derating
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Motor starter/Motor starter combination (EC001037)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Motor starter combination ([email protected] [AJZ718013])
Kind of motor starter
Direct starter
With short-circuit release
No
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
24 - 24 V
Voltage type for actuating
DC
Rated operation power at AC-3, 230 V, 3-phase
0.55 kW
Rated operation power at AC-3, 400 V
1.1 kW
Rated power, 460 V, 60 Hz, 3-phase
0 kW
Rated power, 575 V, 60 Hz, 3-phase
0 kW
Rated operation current Ie
3 A
Rated operation current at AC-3, 400 V
3 A
Overload release current setting
0.18 - 3 A
Rated conditional short-circuit current, type 1, 480 Y/277 V
0 A
Rated conditional short-circuit current, type 1, 600 Y/347 V
0 A
Rated conditional short-circuit current, type 2, 230 V
0 A
Rated conditional short-circuit current, type 2, 400 V
0 A
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Ambient temperature, upper operating limit
60 °C
Temperature compensated overload protection
Yes
Release class
CLASS 10
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rail mounting possible
Yes
With transformer
Number of command positions
Suitable for emergency stop
Coordination class according to IEC 60947-4-3
Number of indicator lights
External reset possible
With fuse
Degree of protection (IP)
IP20
Degree of protection (NEMA)
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Width
mm
Height
mm
Depth
mm
Approvals
Product Standards
UL 60947-4-1; CSA C22.2 No. 60947-4-1-14; CE marking
UL File No.
E338590
UL Category Control No.
NLDX, NLDX7
CSA File No.
UL report applies to both US and Canada
North America Certification
UL listed, certified by UL for use in Canada
Specially designed for North America
No
Characteristics
Characteristic curve
Tripping characteristic curve
CLASS 10
CLASS 10
Dimensions
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| EMS2-DOS-Z-3-24VDC 197162 EN_197162.pdf | 241 Kbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
